Test C: Abs Warning Light Does Not Light Up
>>
Testing Procedure
Testing Procedure

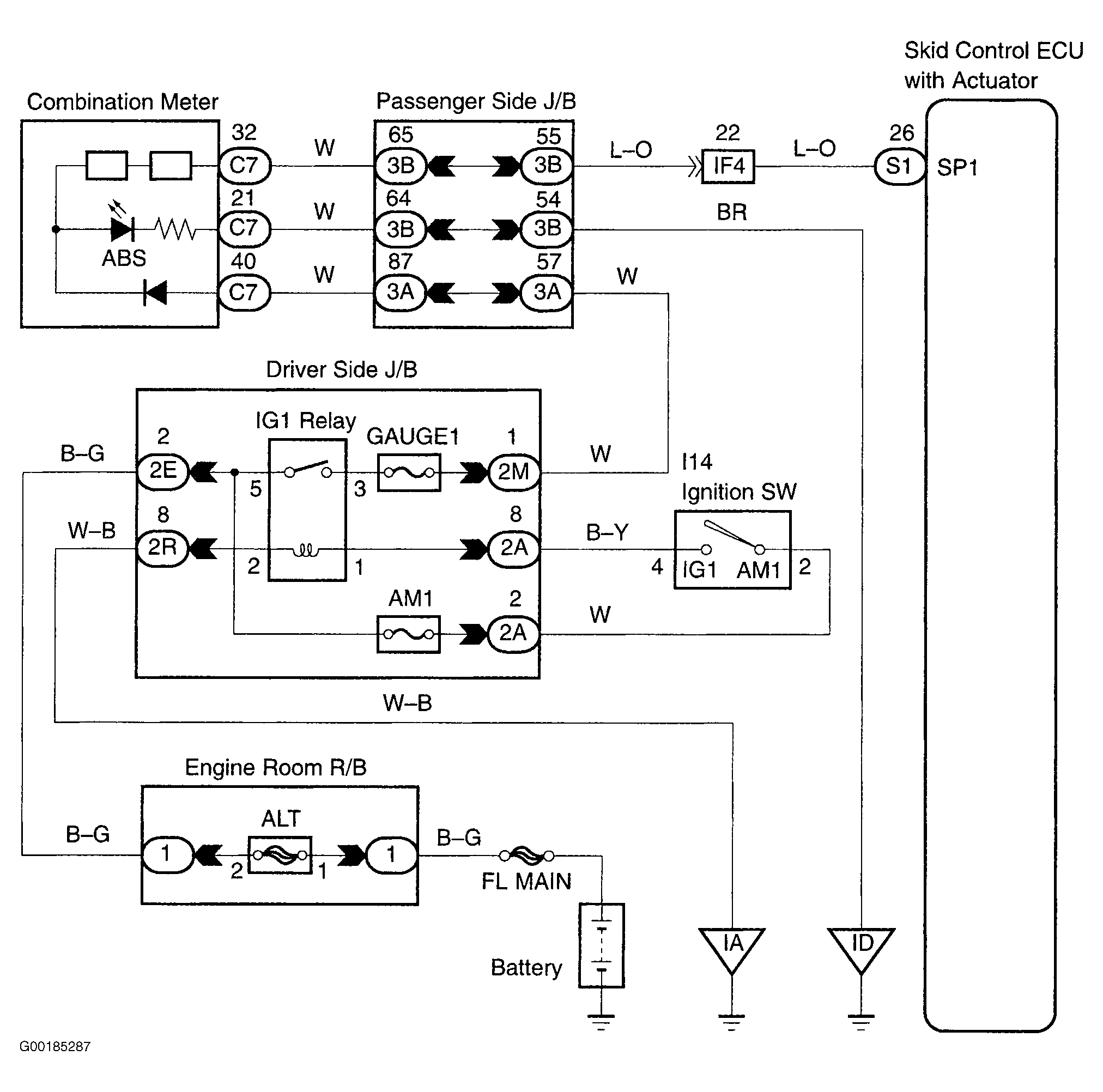

For wiring diagram, see
Figure
. For testing procedure, see
Fig 1
.

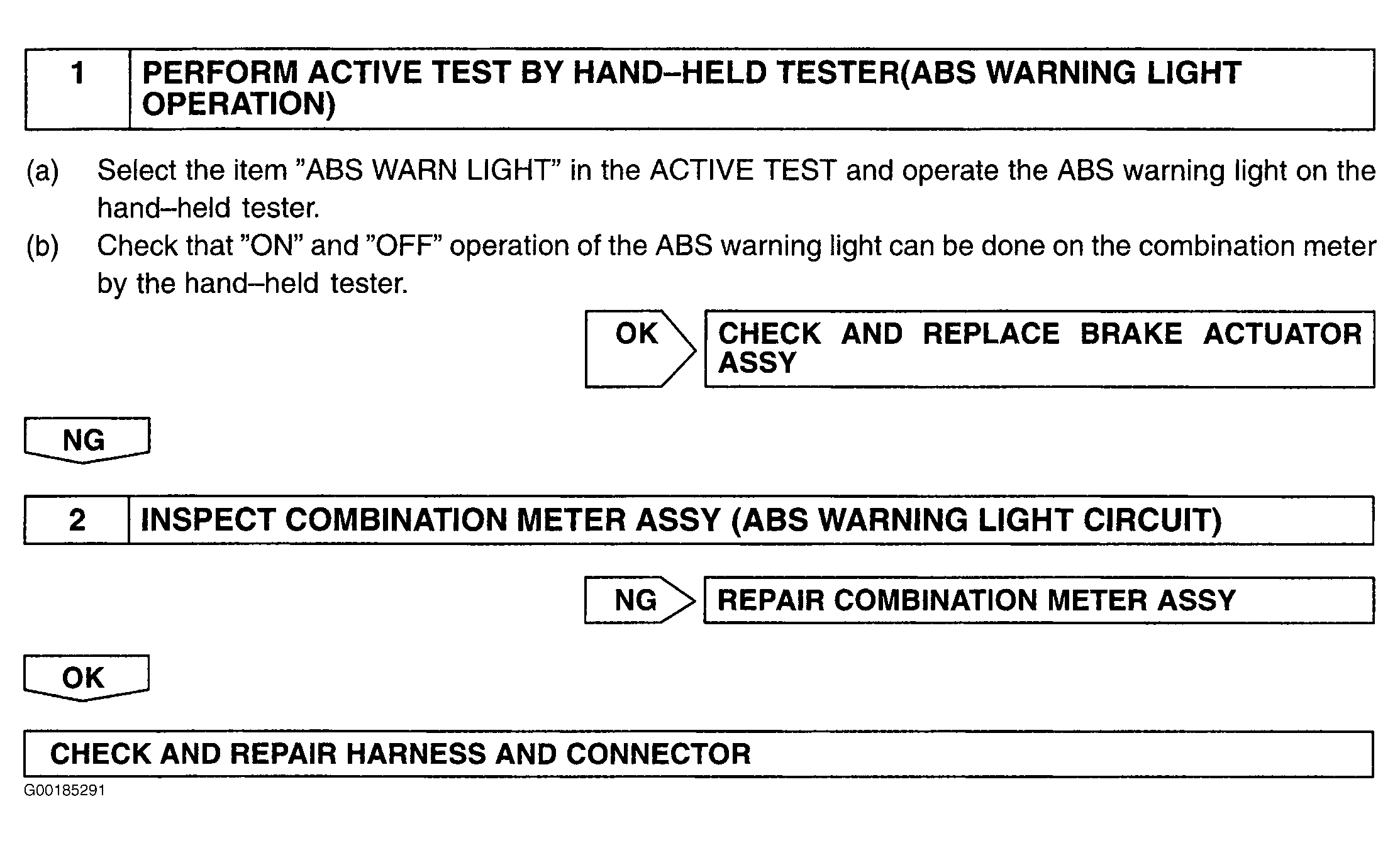

Fig 1: Testing Procedure ABS Warning Light Circuit Does Not Light Up
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
