Home >> Lexus >> 2002 >> ES 300 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Removal & Installation >> Components

Removal & Installation : Components

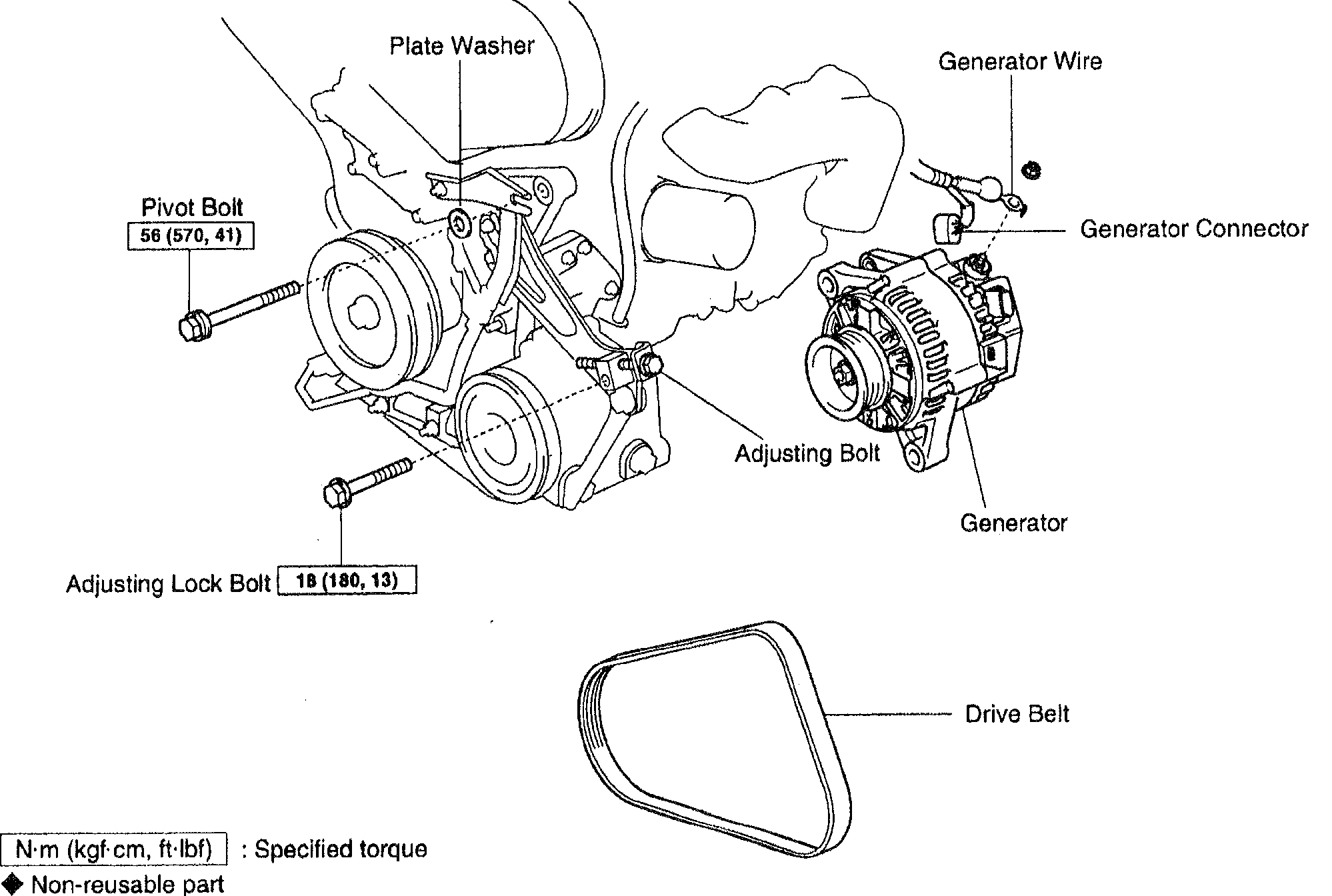

Fig 1: View Of Generator Removal & Installation With Torque Specifications
G00498791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
