Connector Identification

Fig 1: Identifying Data Link Connector 1 (DLC1) Connector Terminals
G99H08066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

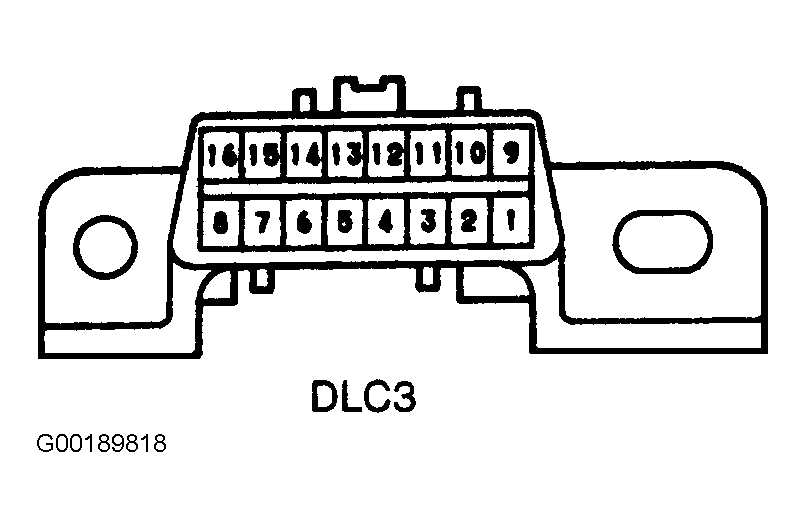

Fig 2: Identifying Data Link Connector 3 (DLC3) Terminals
G00189818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

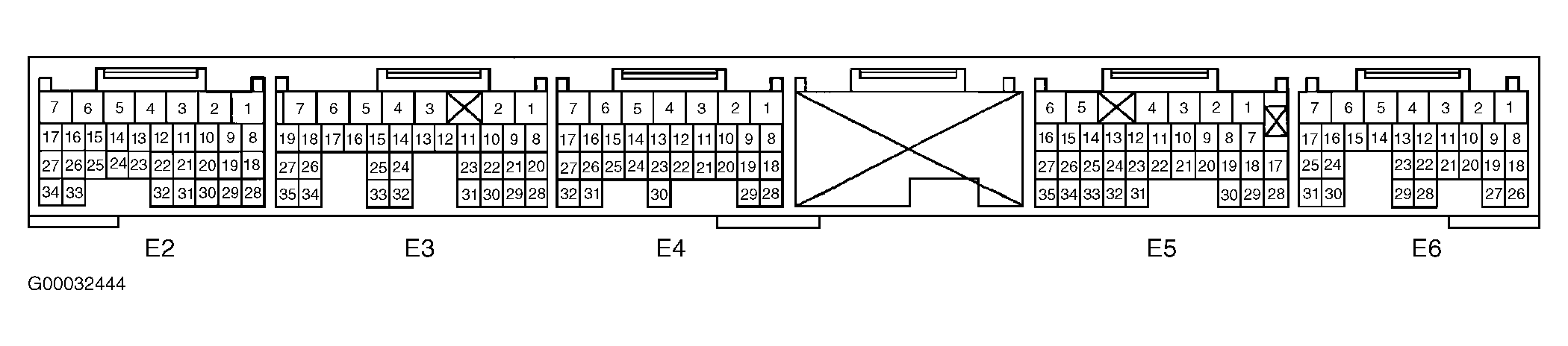

Fig 3: Identifying Engine Control Module (ECM) Connector Terminals
G00032444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

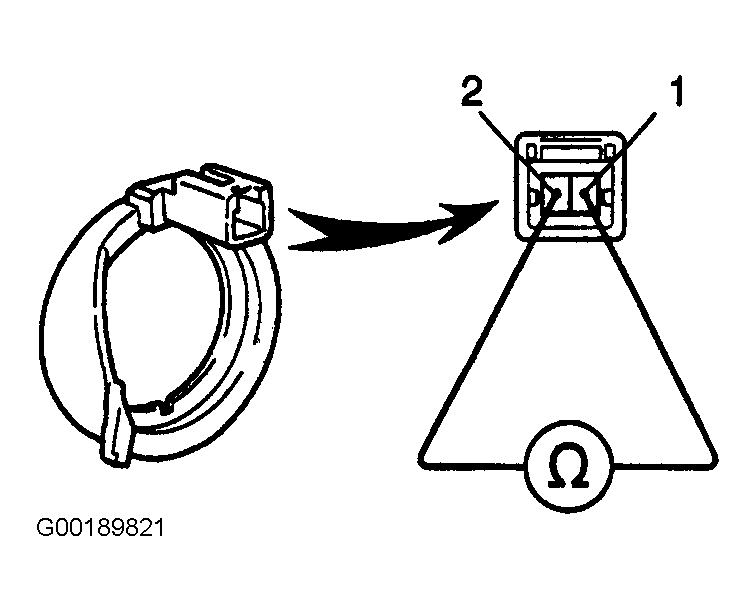

Fig 4: Identifying Transponder Key Coil Connector Terminals
G00189821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
