Component Locations

For component locations see Fig 1.

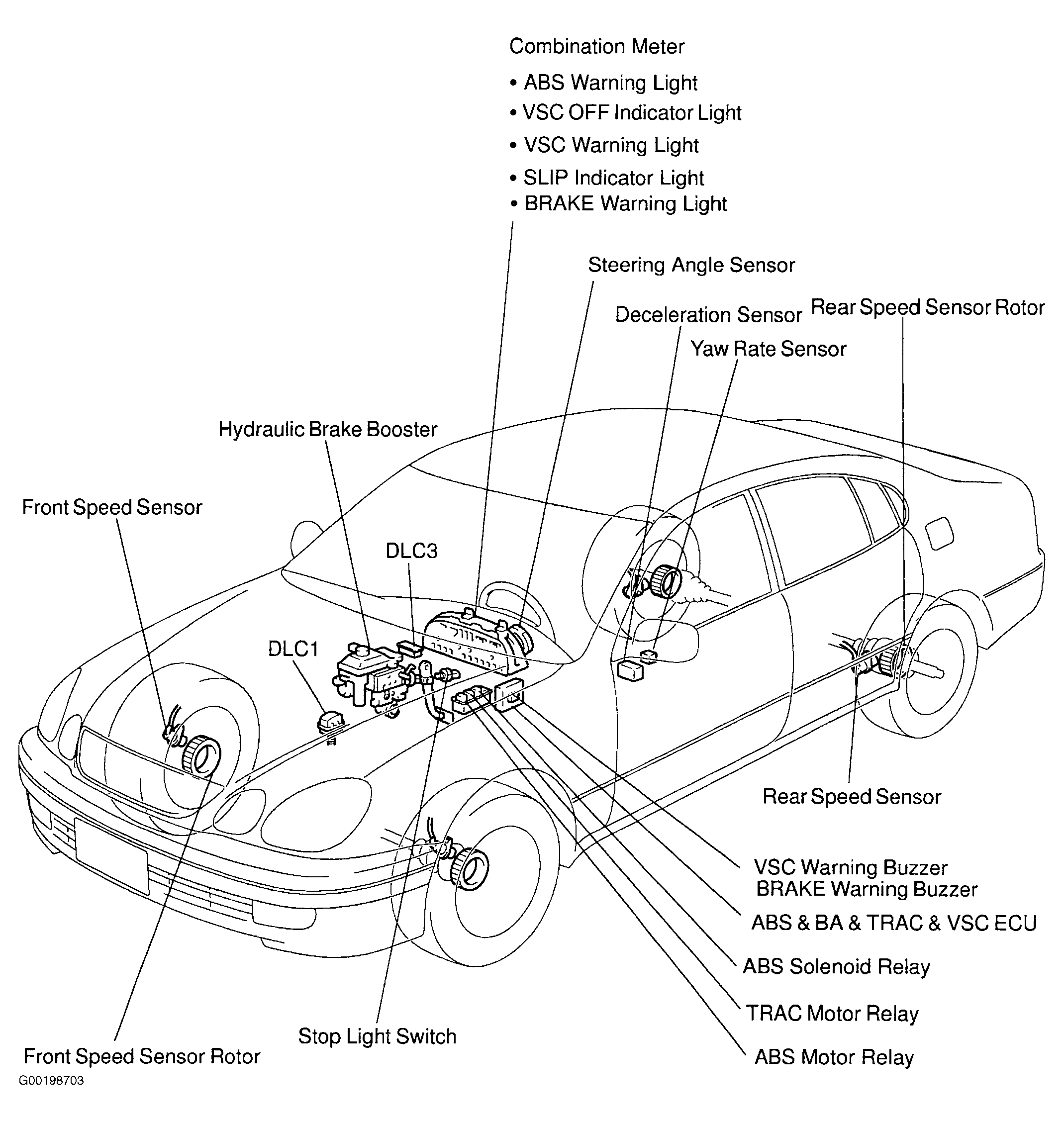

Fig 1: Locating Brake Components

G00198703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
