Home >> Lexus >> 2002 >> GS 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

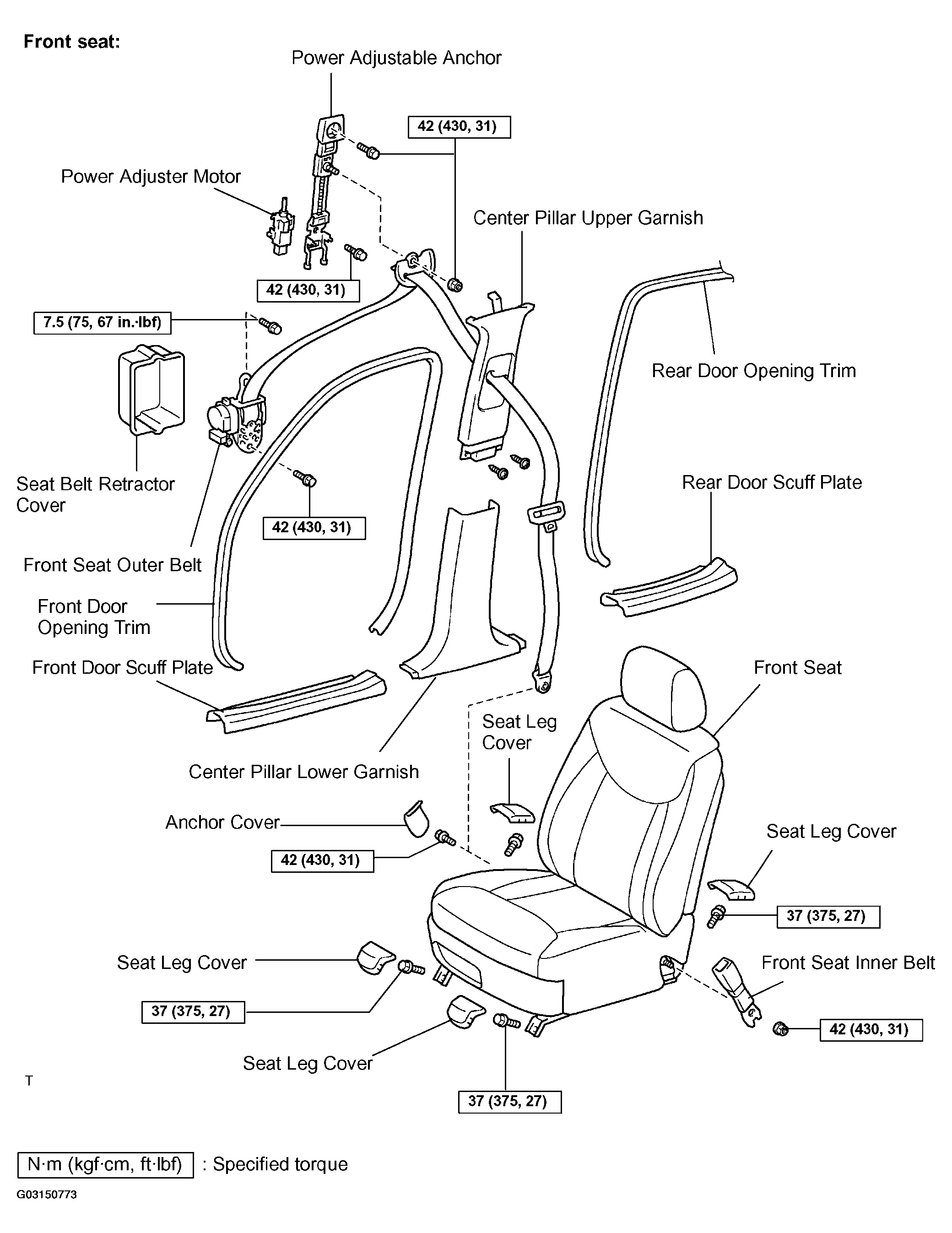

Fig 1: Identifying Components For Seat Belt Removal (Front Seat)
G03150773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

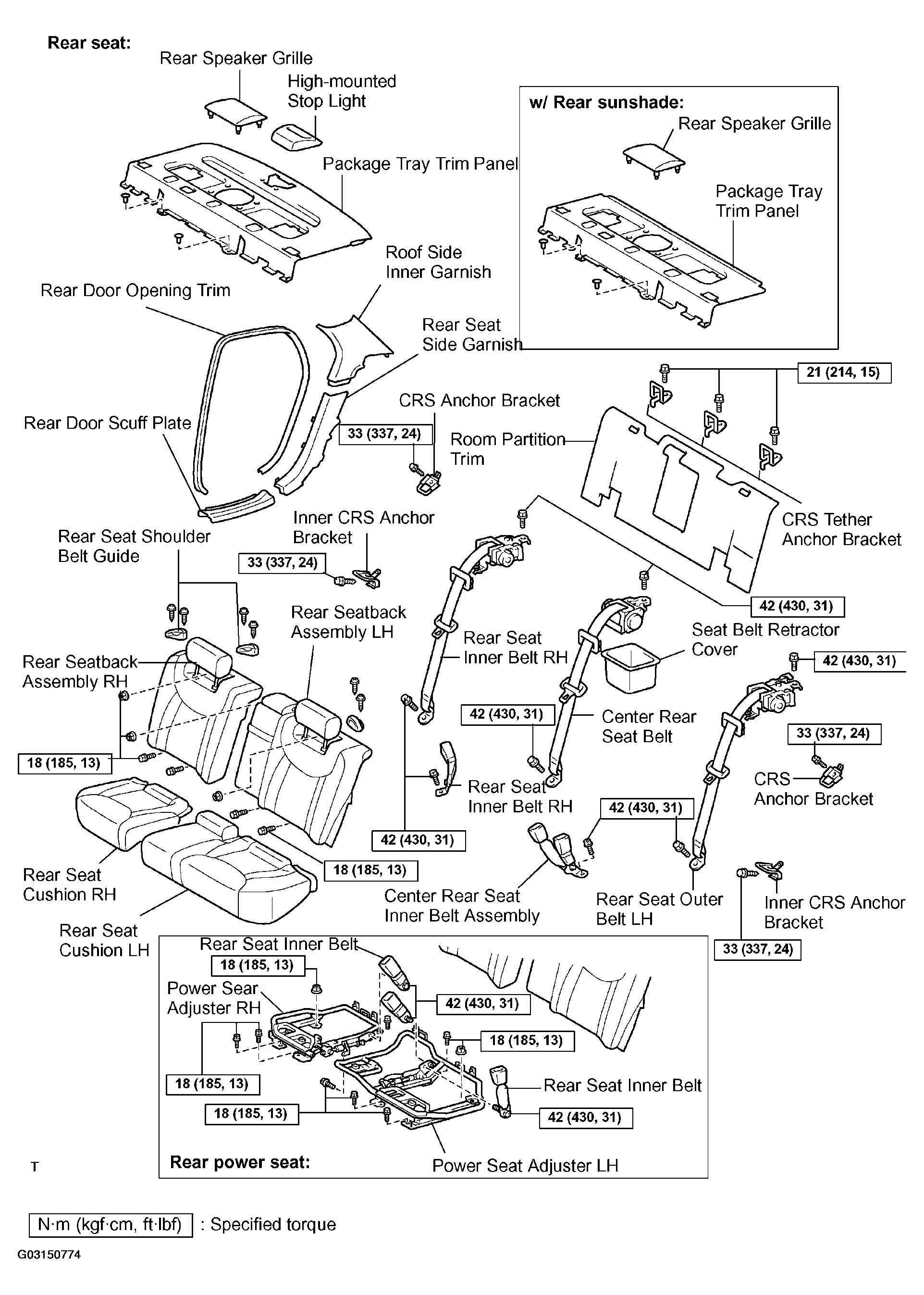

Fig 2: Identifying Components For Seat Belt Removal (Back Seat)
G03150774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
