Pin Voltage Test

For pin voltages of ECU see Fig 1 - Fig 3 .

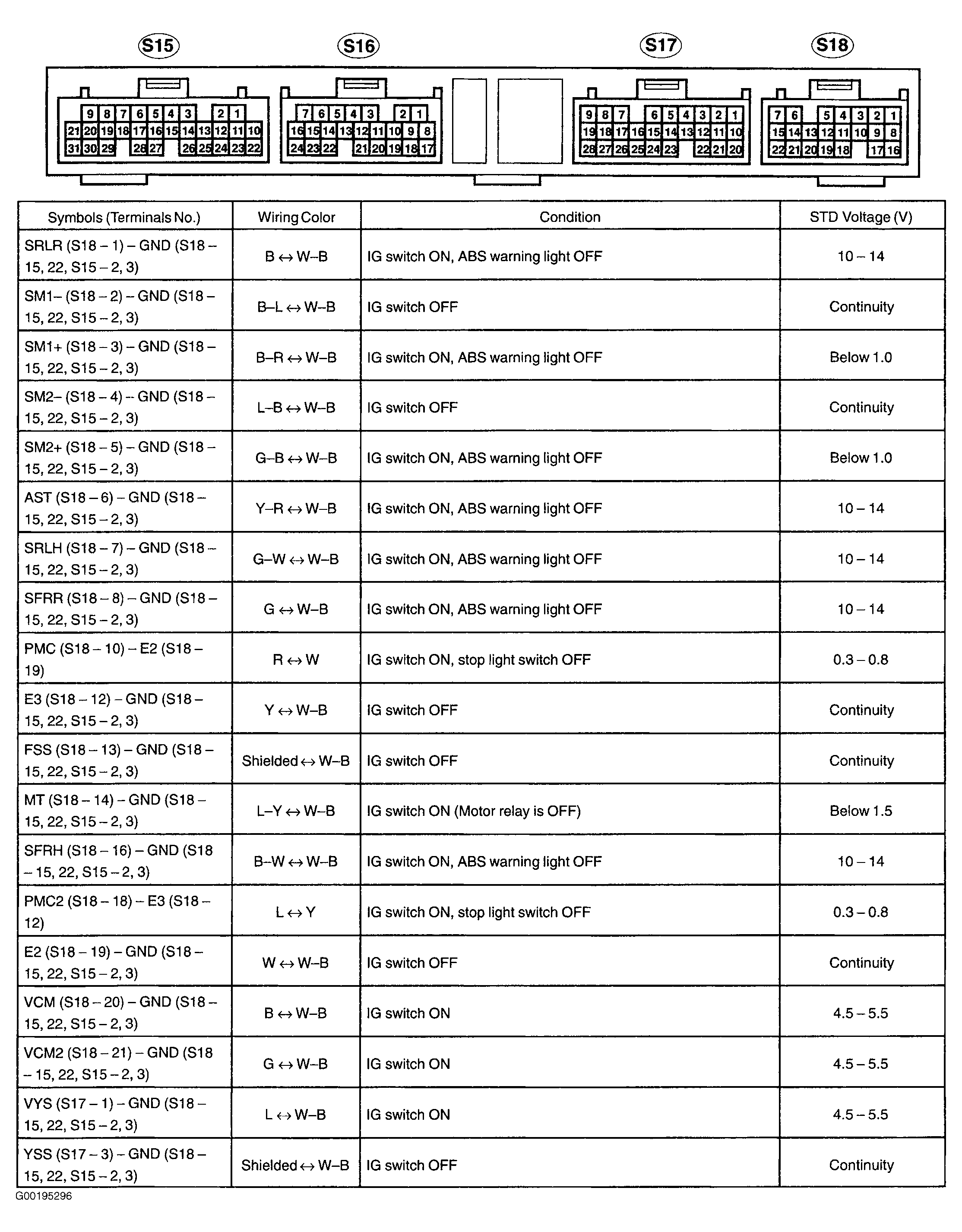

Fig 1: Identifying Pin Voltages Of ECU (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

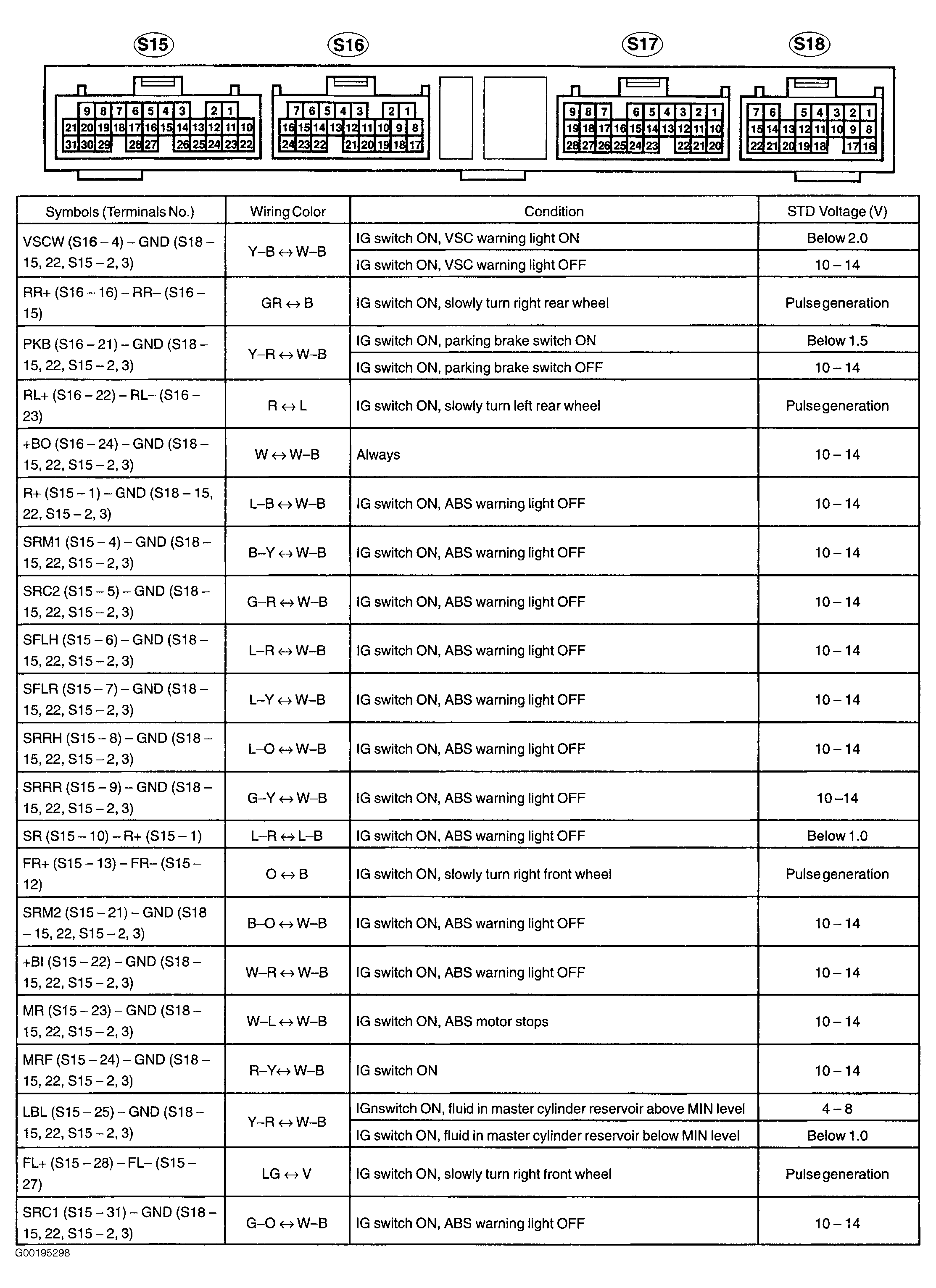

Fig 2: Identifying Pin Voltages Of ECU (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

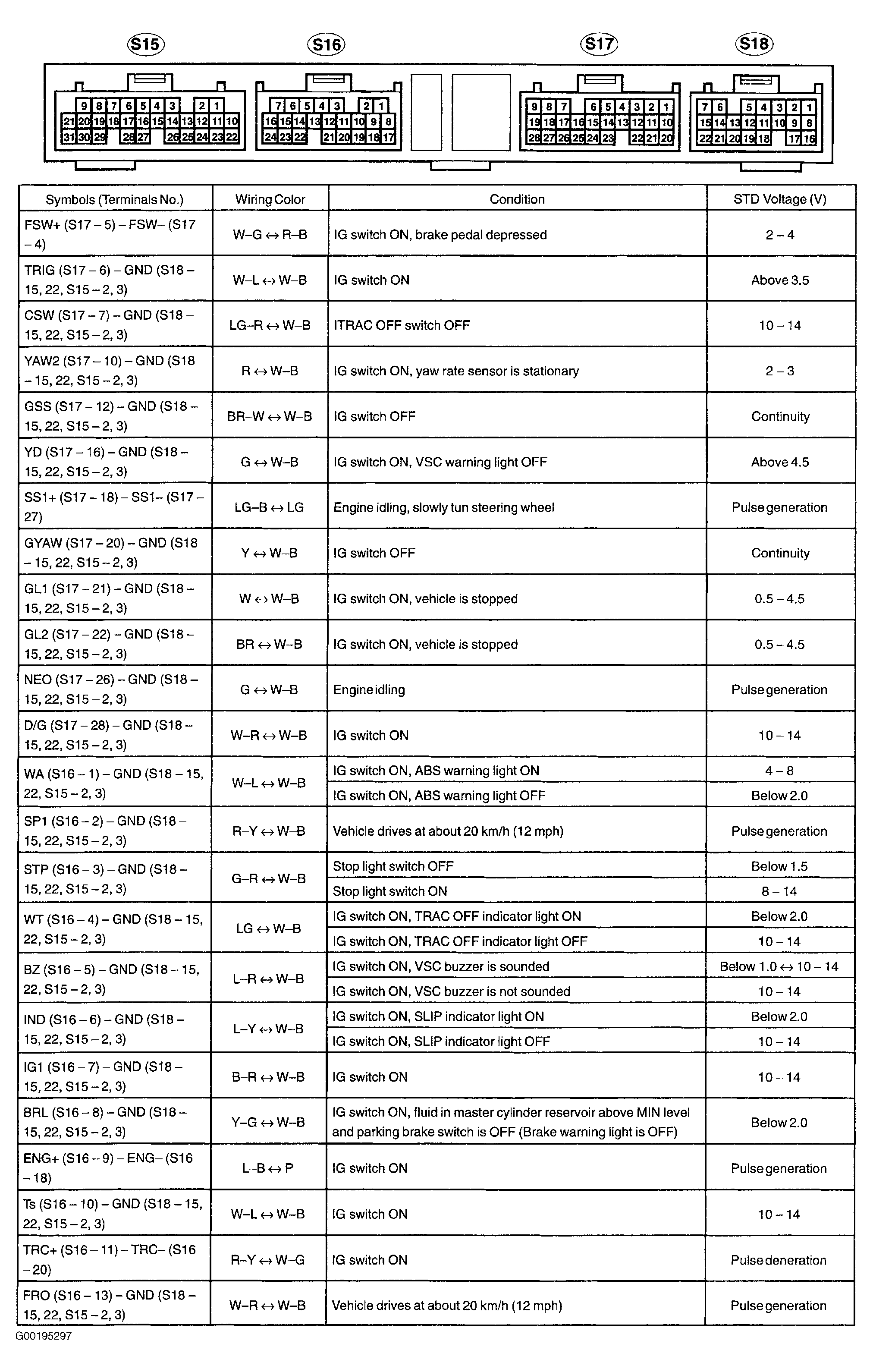

Fig 3: Identifying Pin Voltages Of ECU (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
