Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2-Fig 5 .

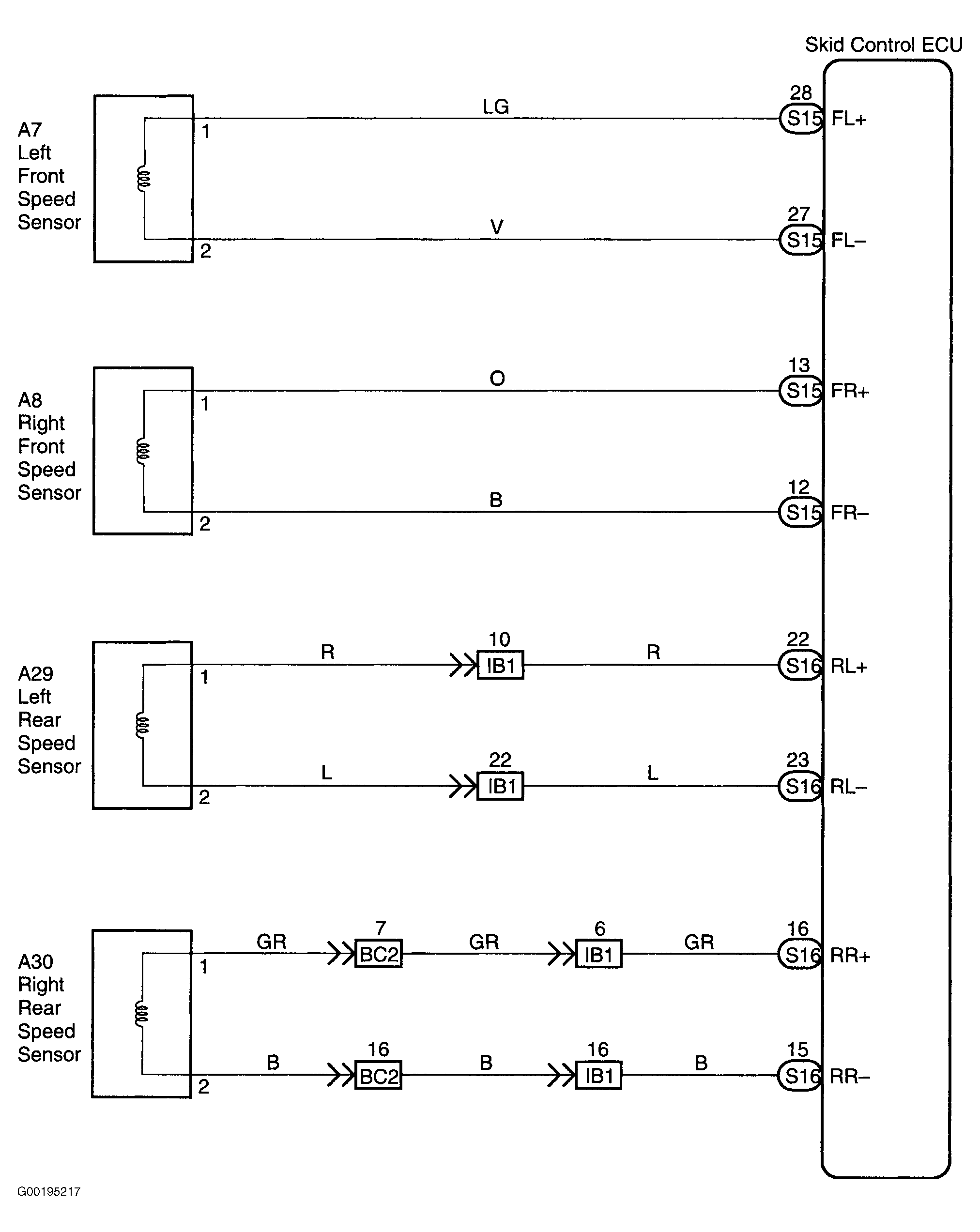

Fig 1: Wiring Diagram (Speed Sensor Circuit)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

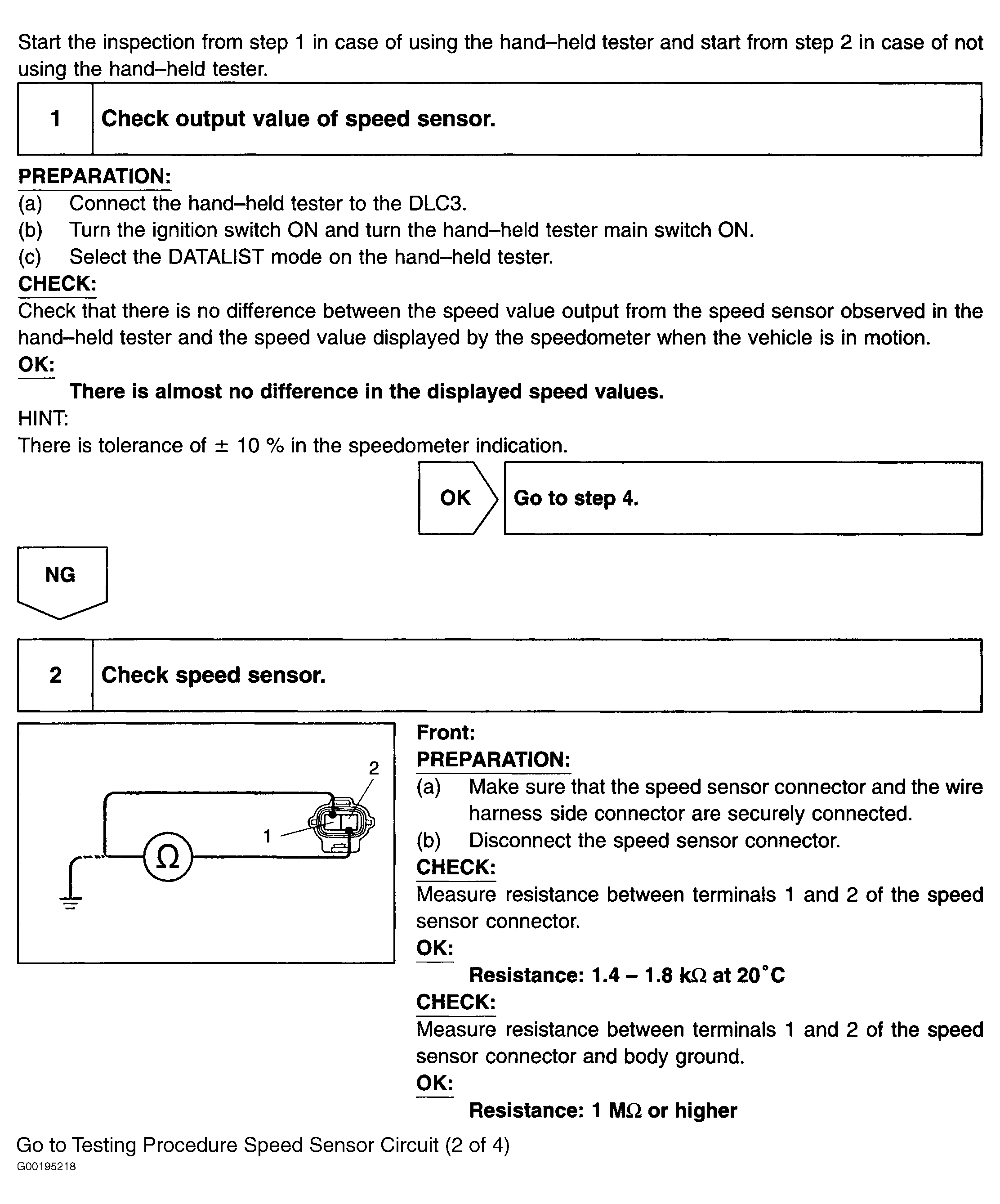

Fig 2: Testing Procedure Speed Sensor Circuit (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

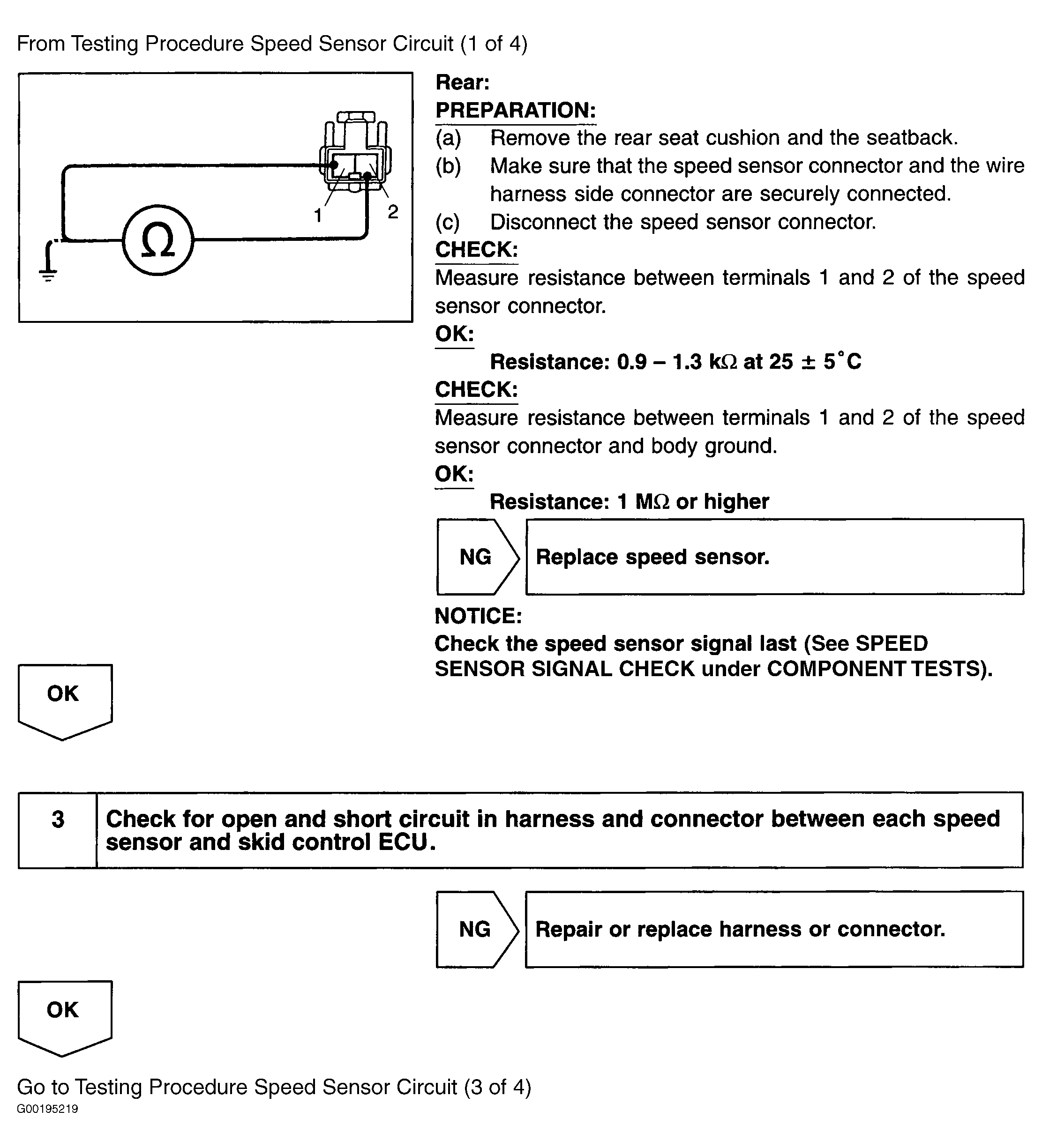

Fig 3: Testing Procedure Speed Sensor Circuit (2 Of )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

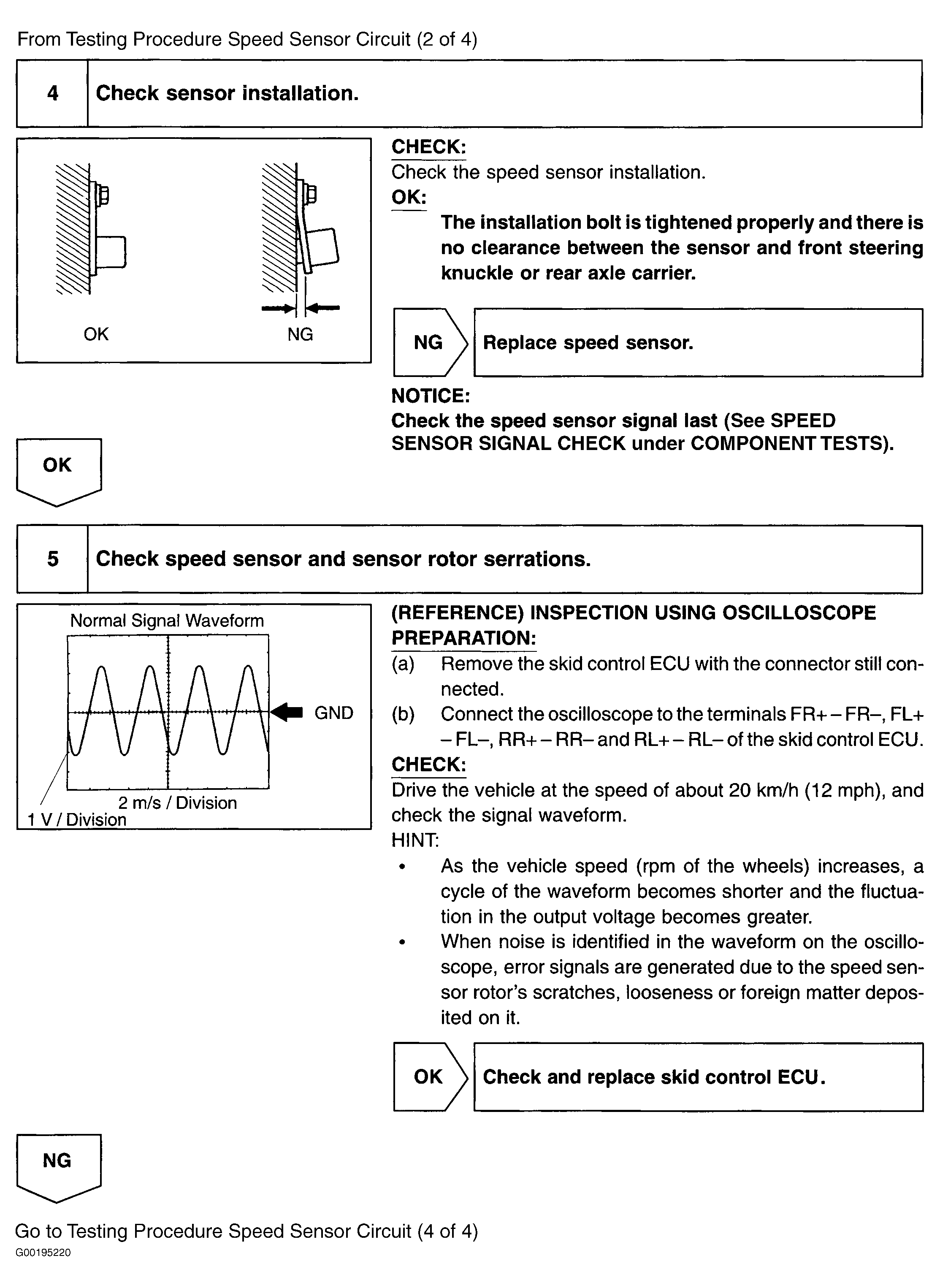

Fig 4: Testing Procedure Speed Sensor Circuit (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

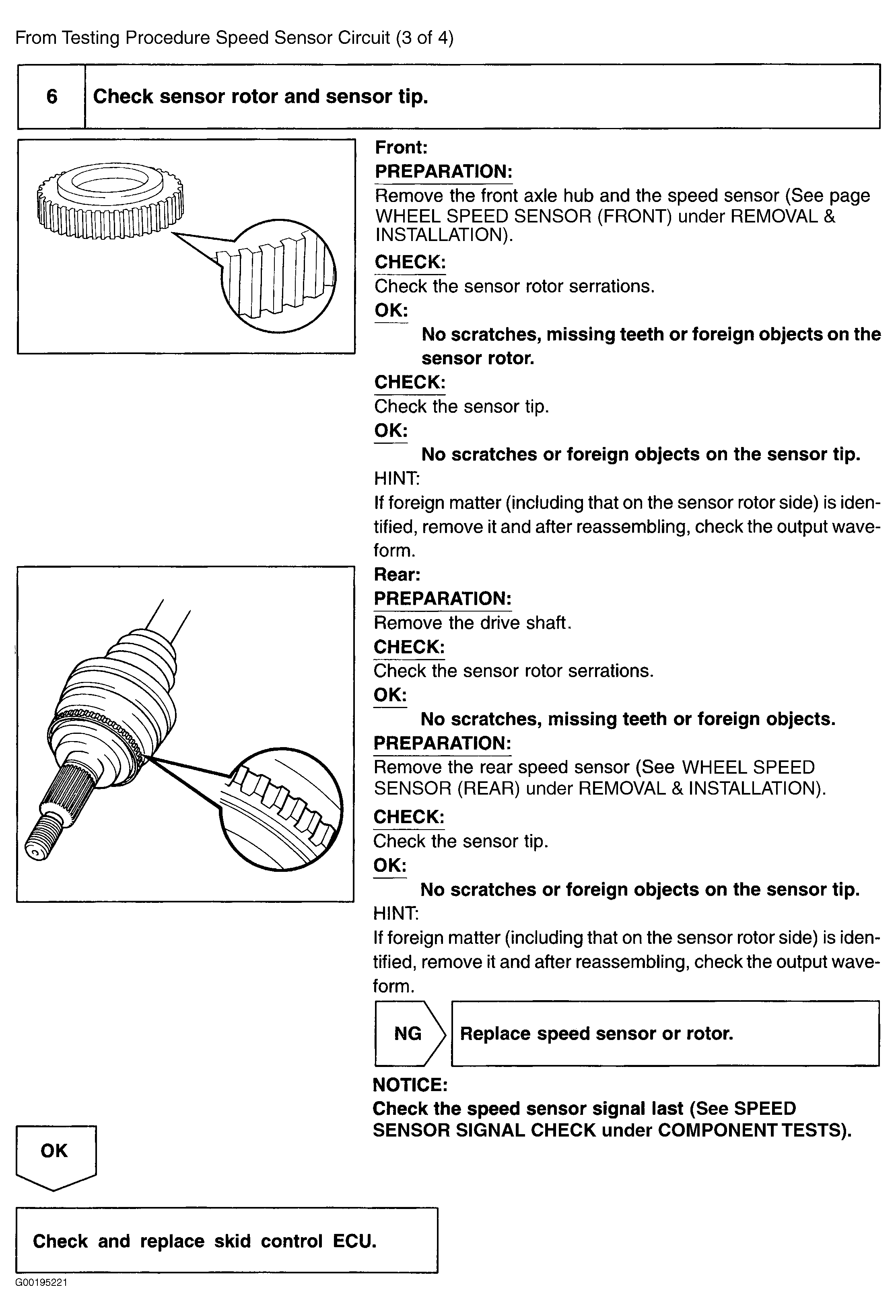

Fig 5: Testing Procedure Speed Sensor Circuit (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
