Home >> Lexus >> 2002 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

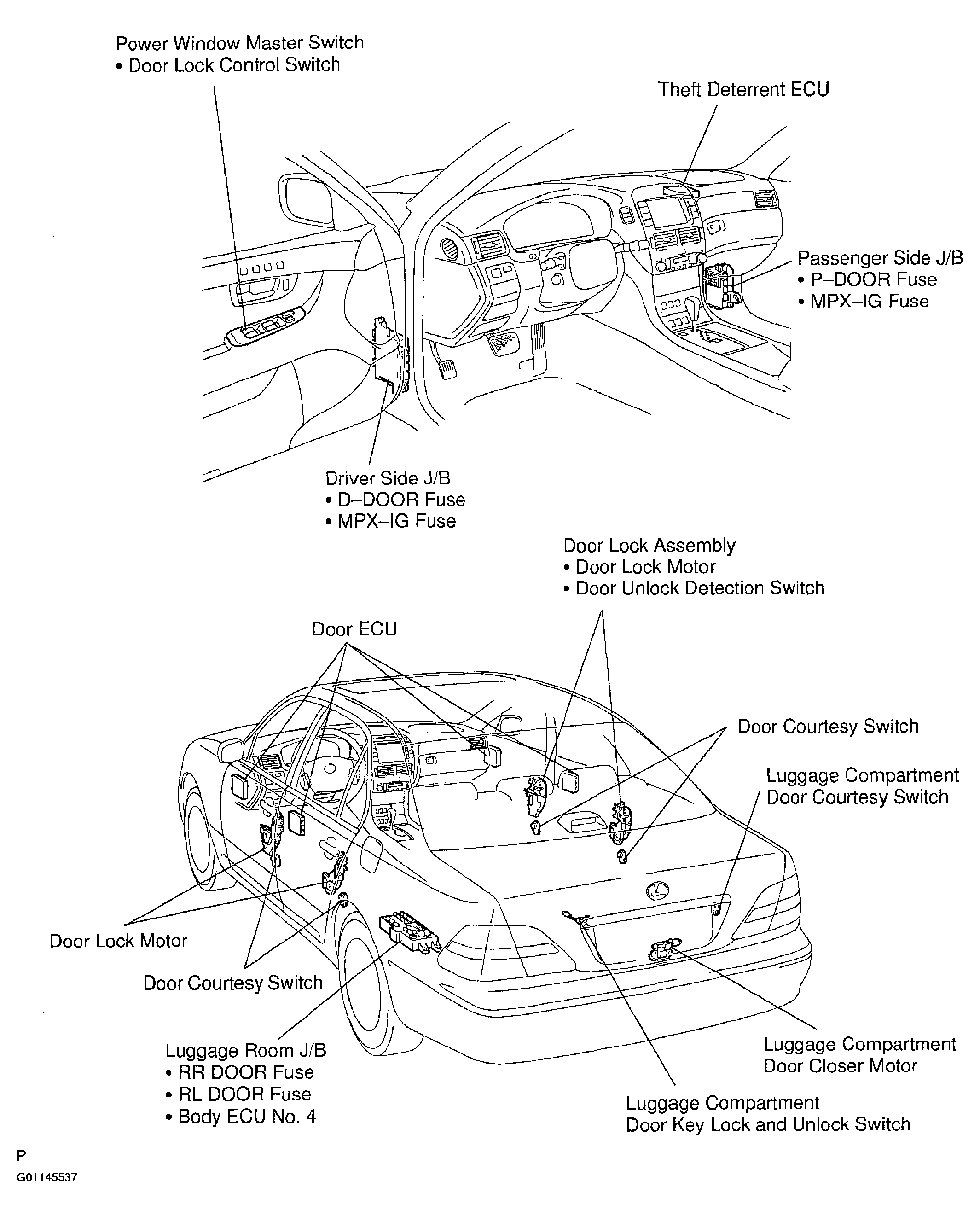

Fig 1: Identifying Power Door Lock Control System Components

G01145537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
