DTC C1782
>>
Testing Procedure
Testing Procedure
For testing procedure, see
Fig 1
.

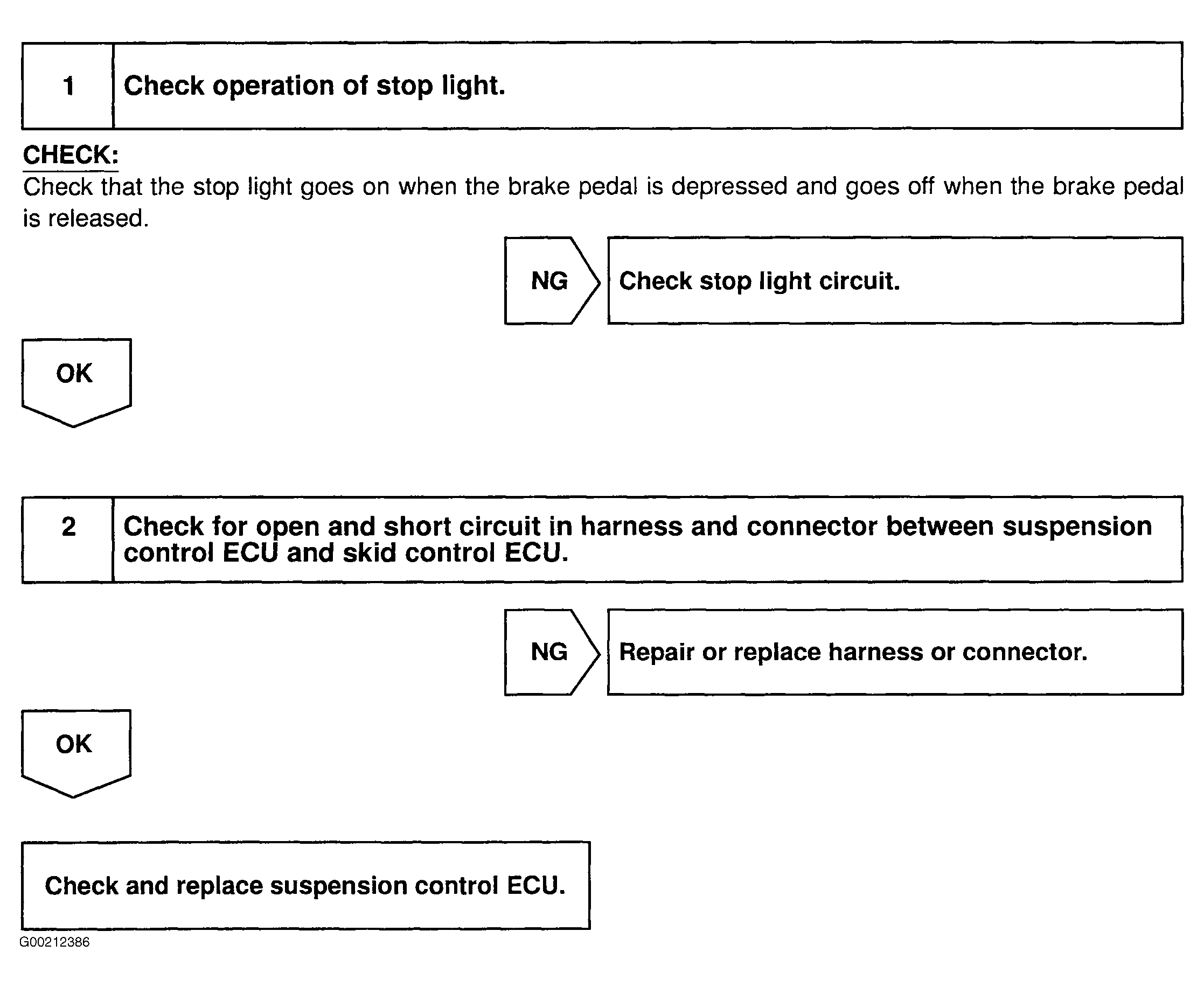

Fig 1: Testing Procedure Stop Light Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
