Home >> Lexus >> 2002 >> LS 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Unit (Removal & Installation) >> Automatic Transmission Unit >> Components

Automatic Transmission Unit: Components

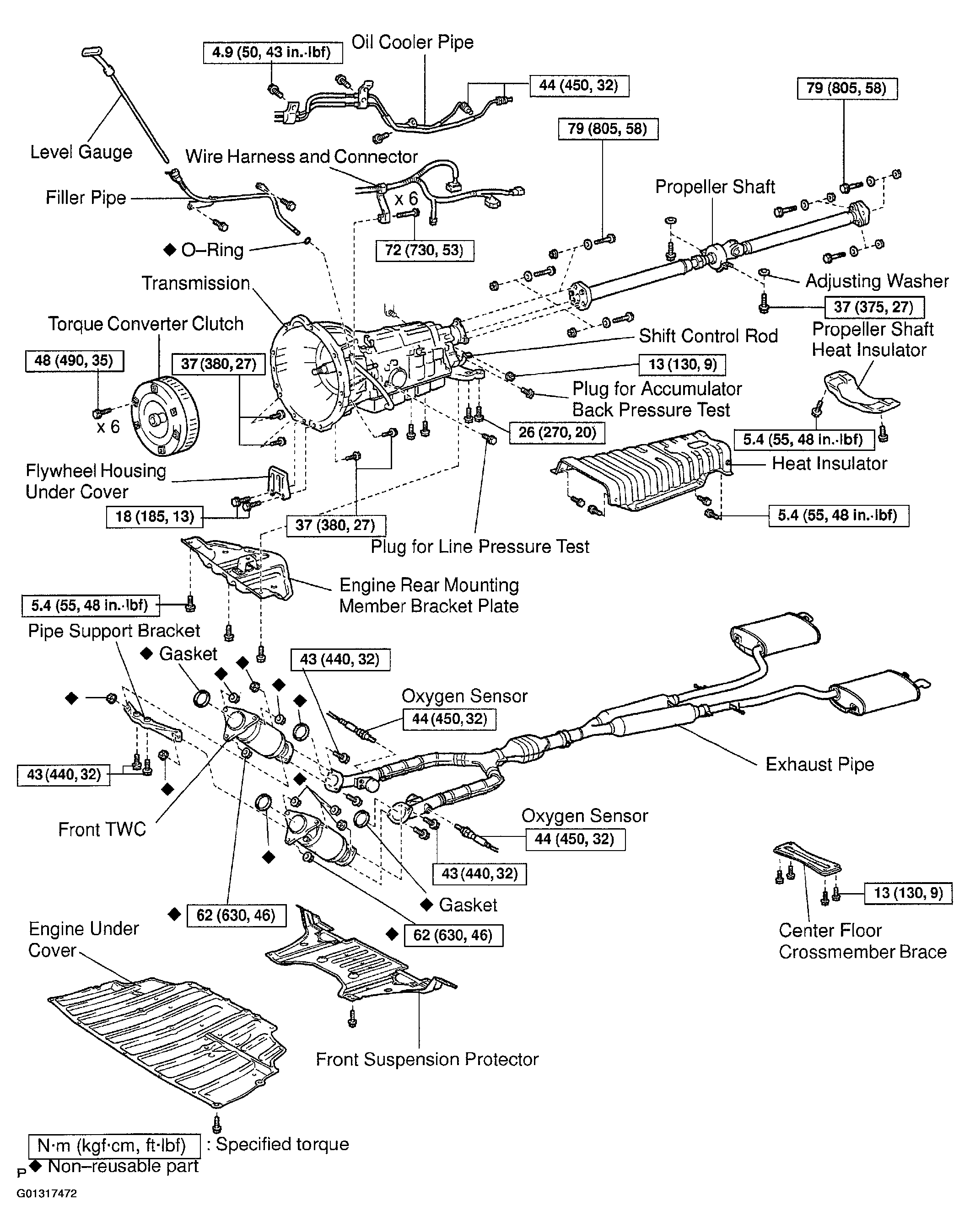

Fig 1: Automatic Transmission Unit Components With Torque Specifications
G01317472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
