Home >> Lexus >> 2002 >> LX 470 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock/Vehicle Skid Control >> Component Locations

Component Locations

For location of system components see Fig 1.

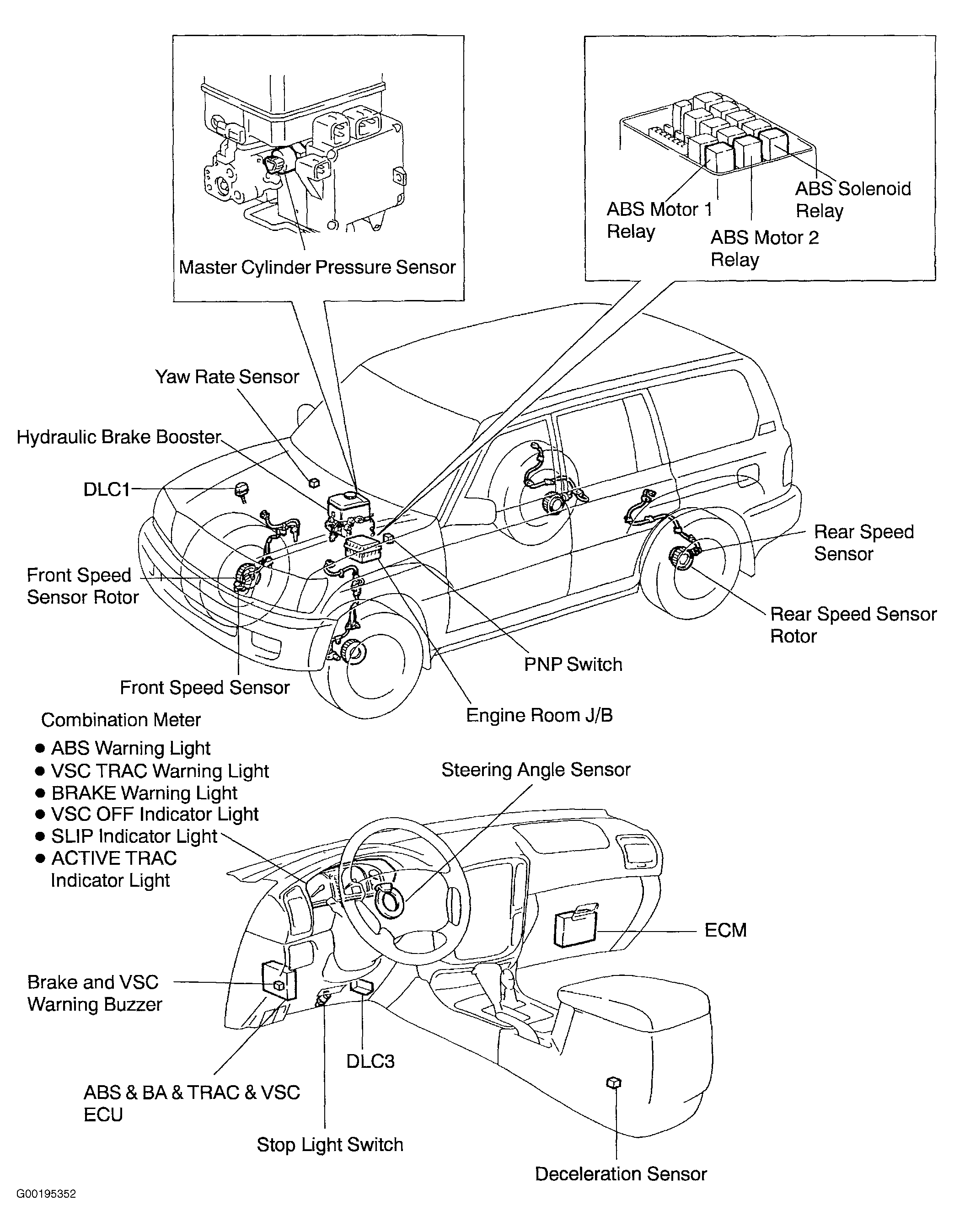

Fig 1: Locating Parts

G00195352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
