Pin Voltage Test

For pin voltages of ABS ECU, see Fig 1 - Fig 3 .

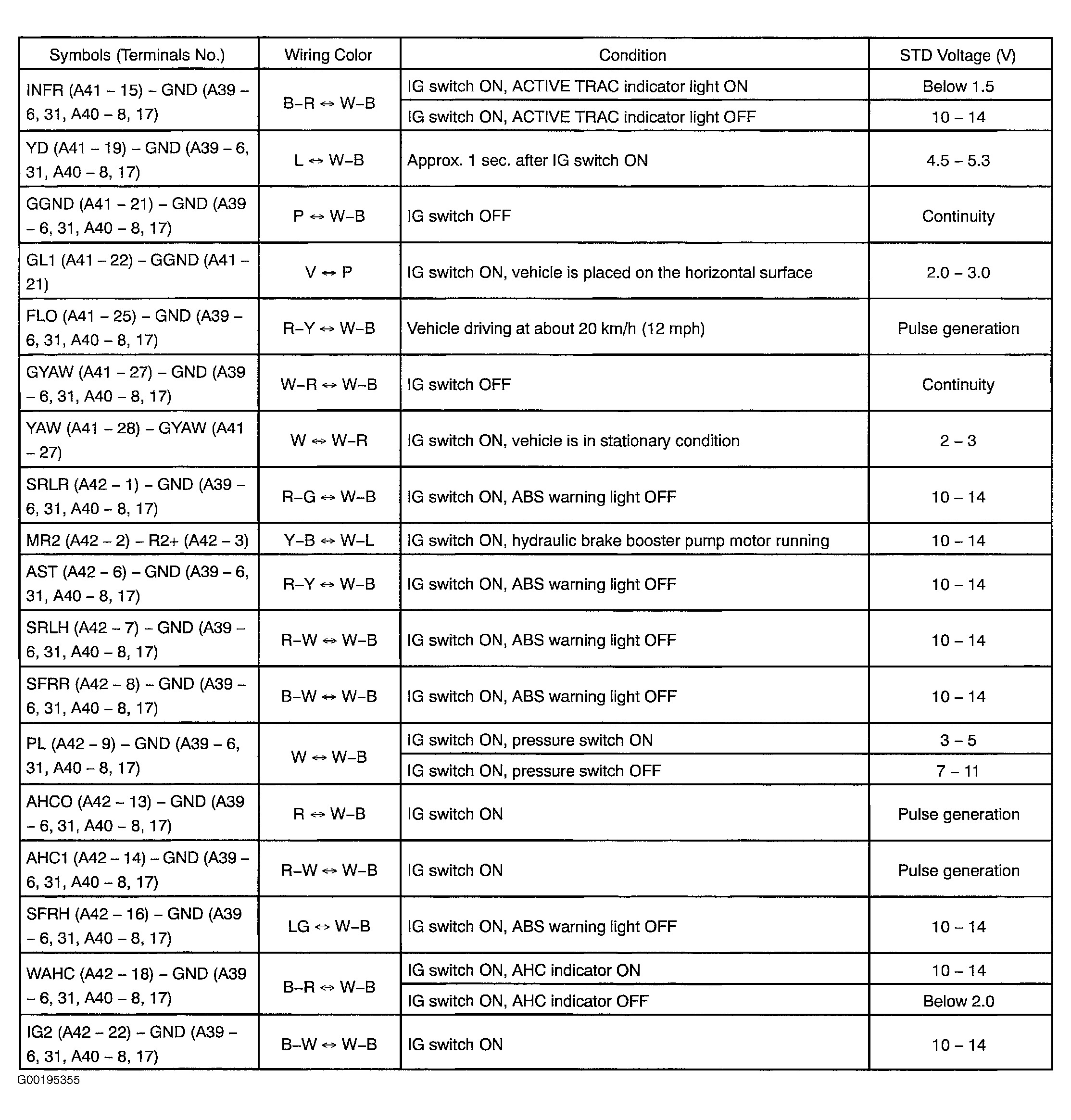

Fig 1: ABS ECU Pin Voltage Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

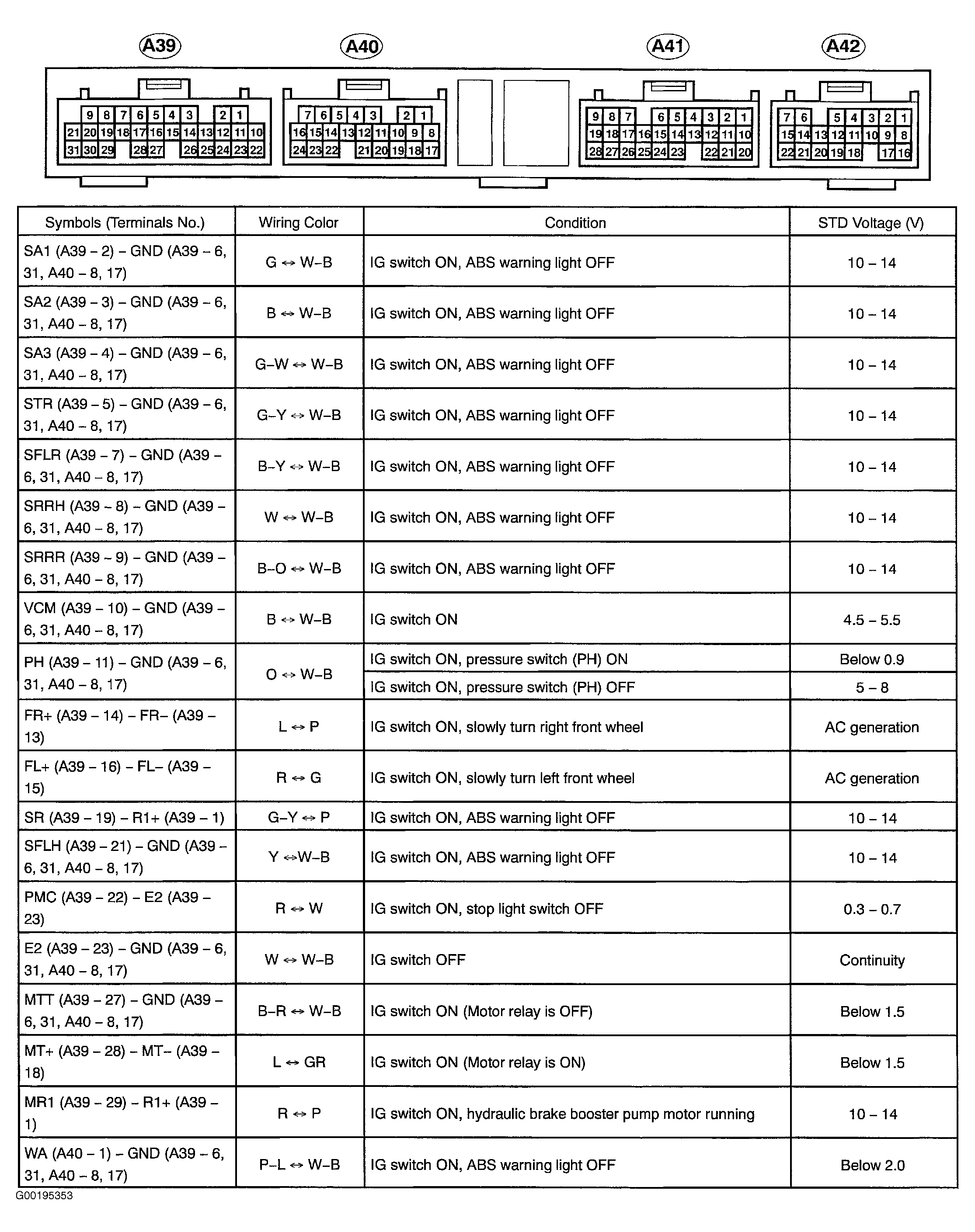

Fig 2: ABS ECU Pin Voltage Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

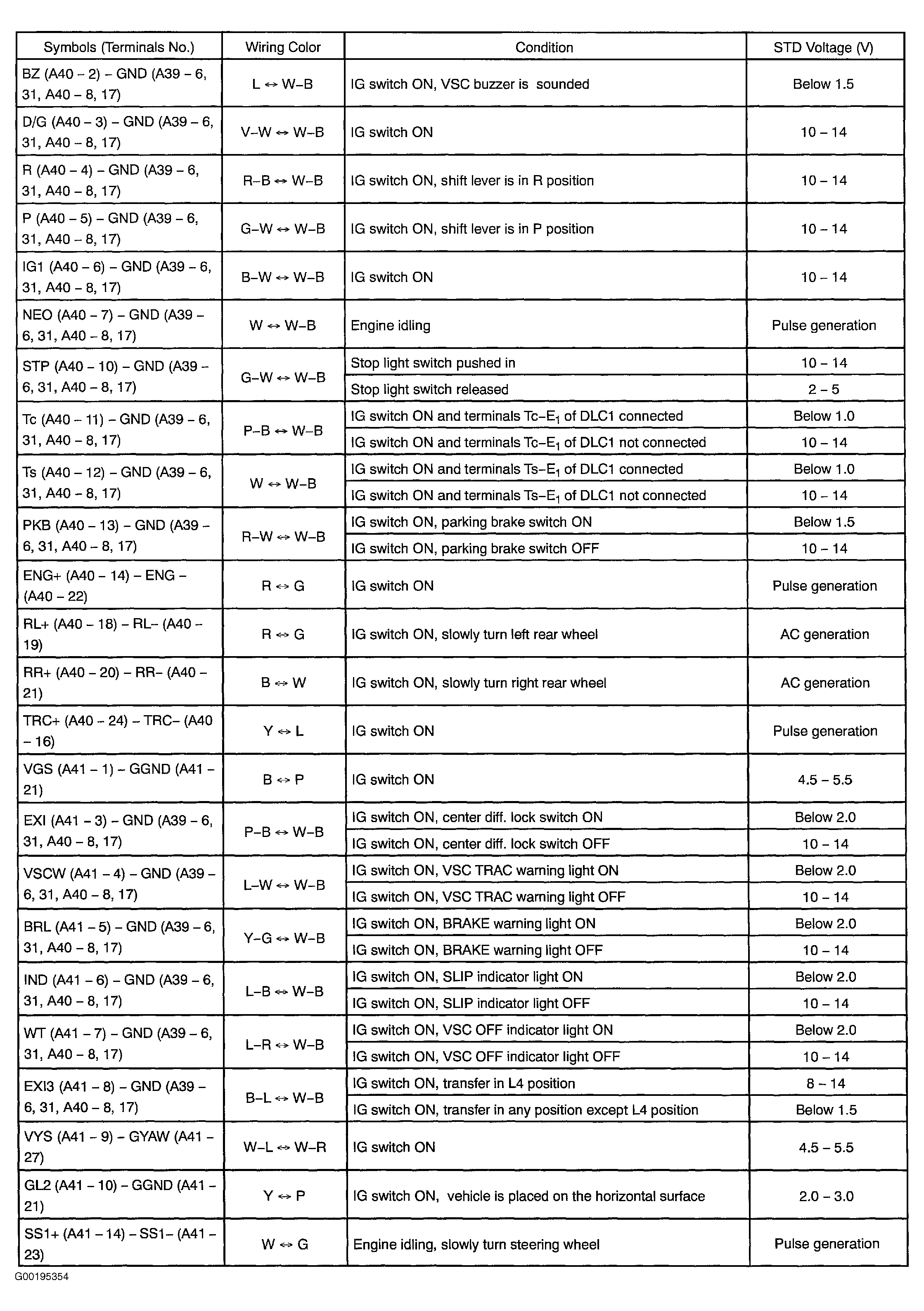

Fig 3: ABS ECU Pin Voltage Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
