GENERATOR (L3B Type): Components

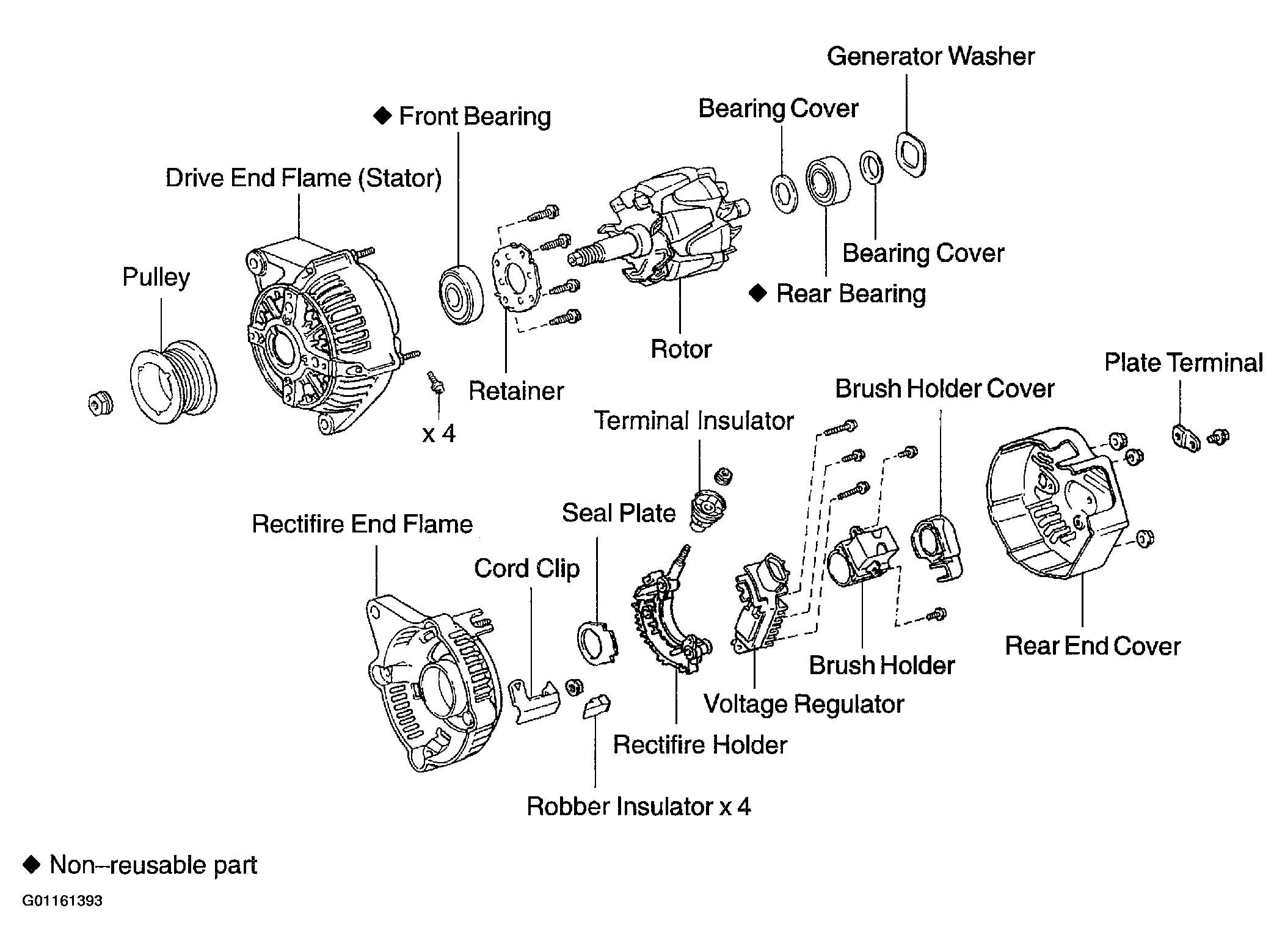

Fig 1: Displaying Generator (LB3 Type) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

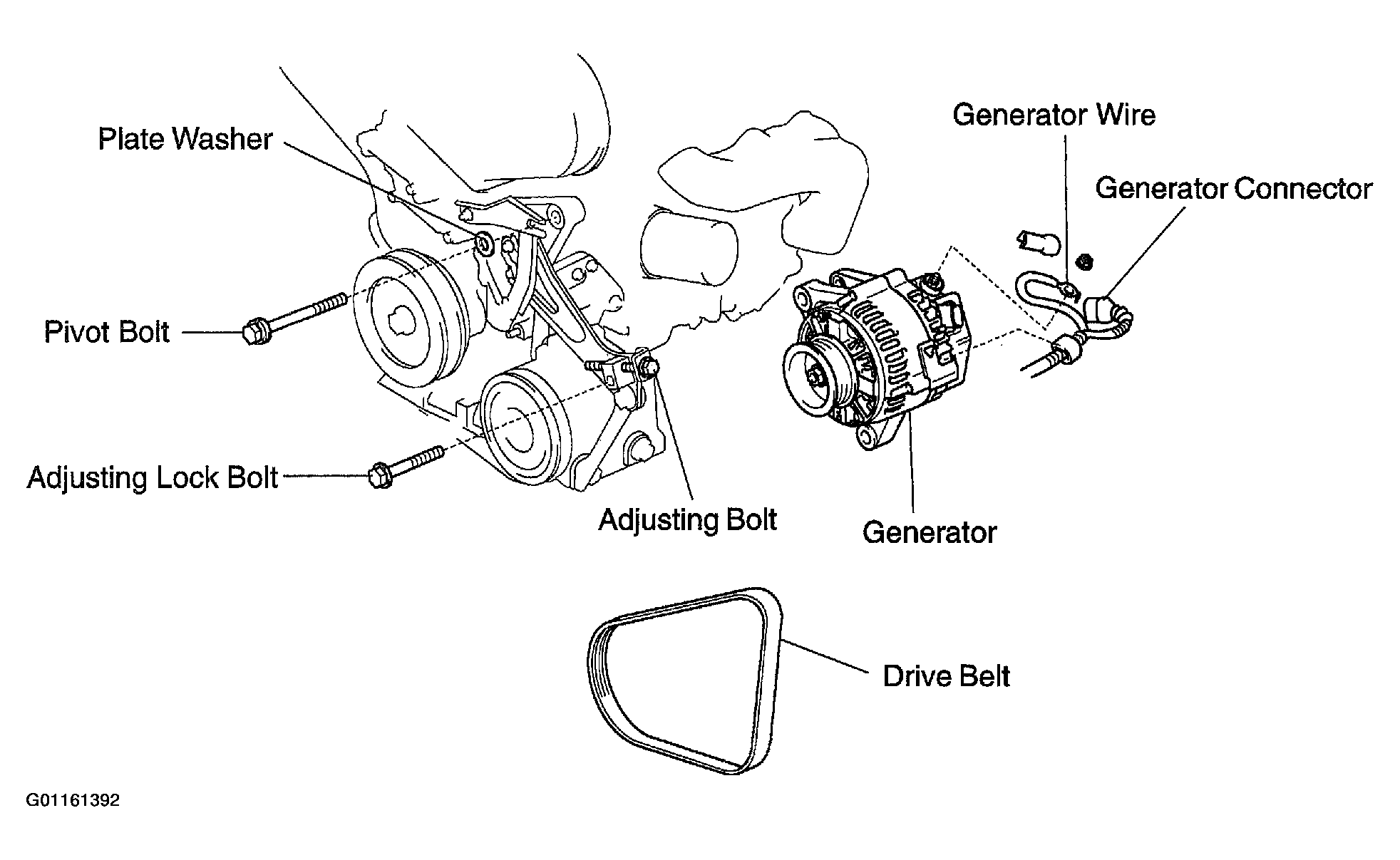

Fig 2: Displaying Generator (LB3 Type) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
