Oil Pump: Components
Fig 1: Displaying Oil Pump Components (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Displaying Oil Pump Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

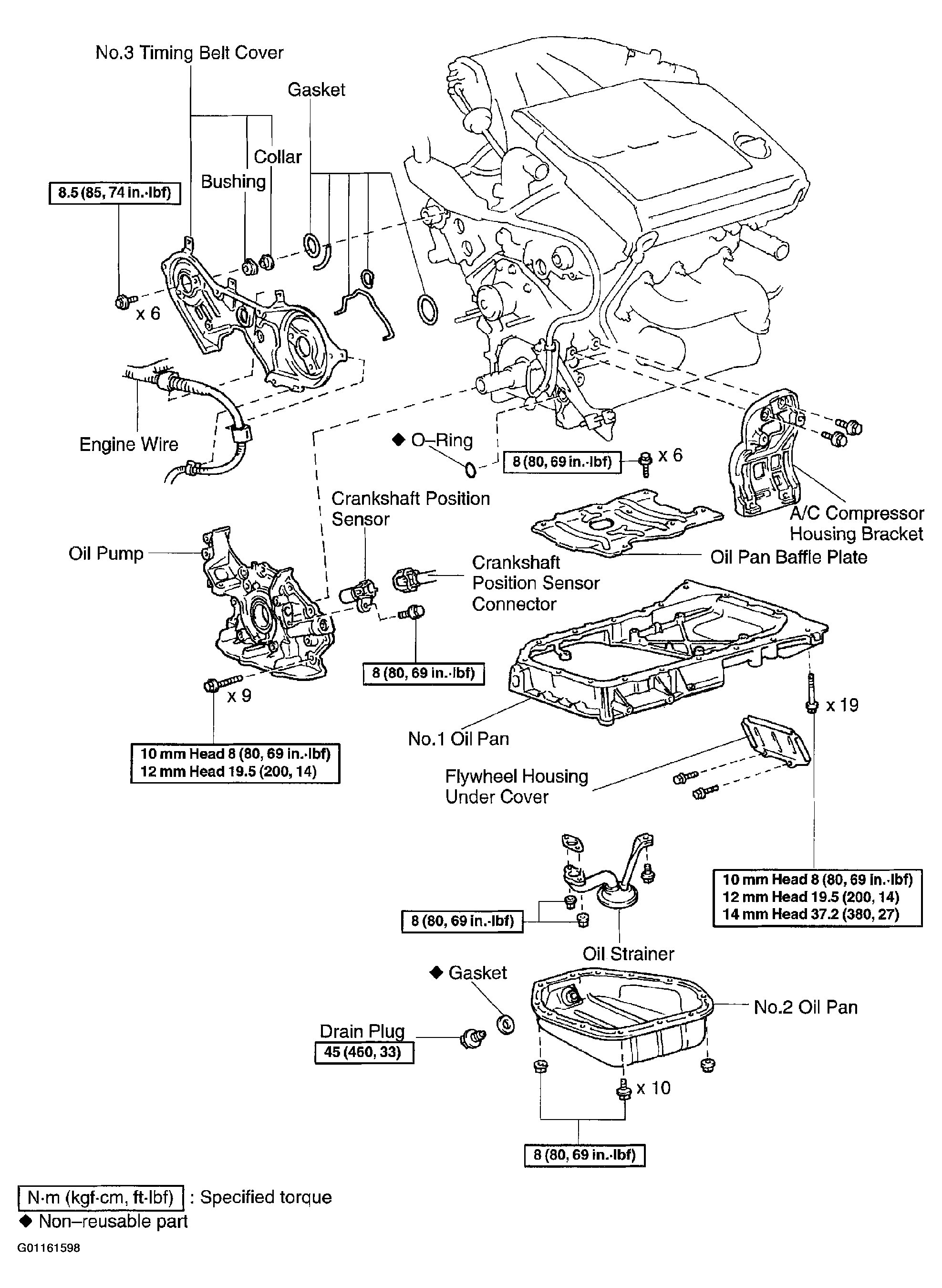

Fig 3: Displaying Oil Pump Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

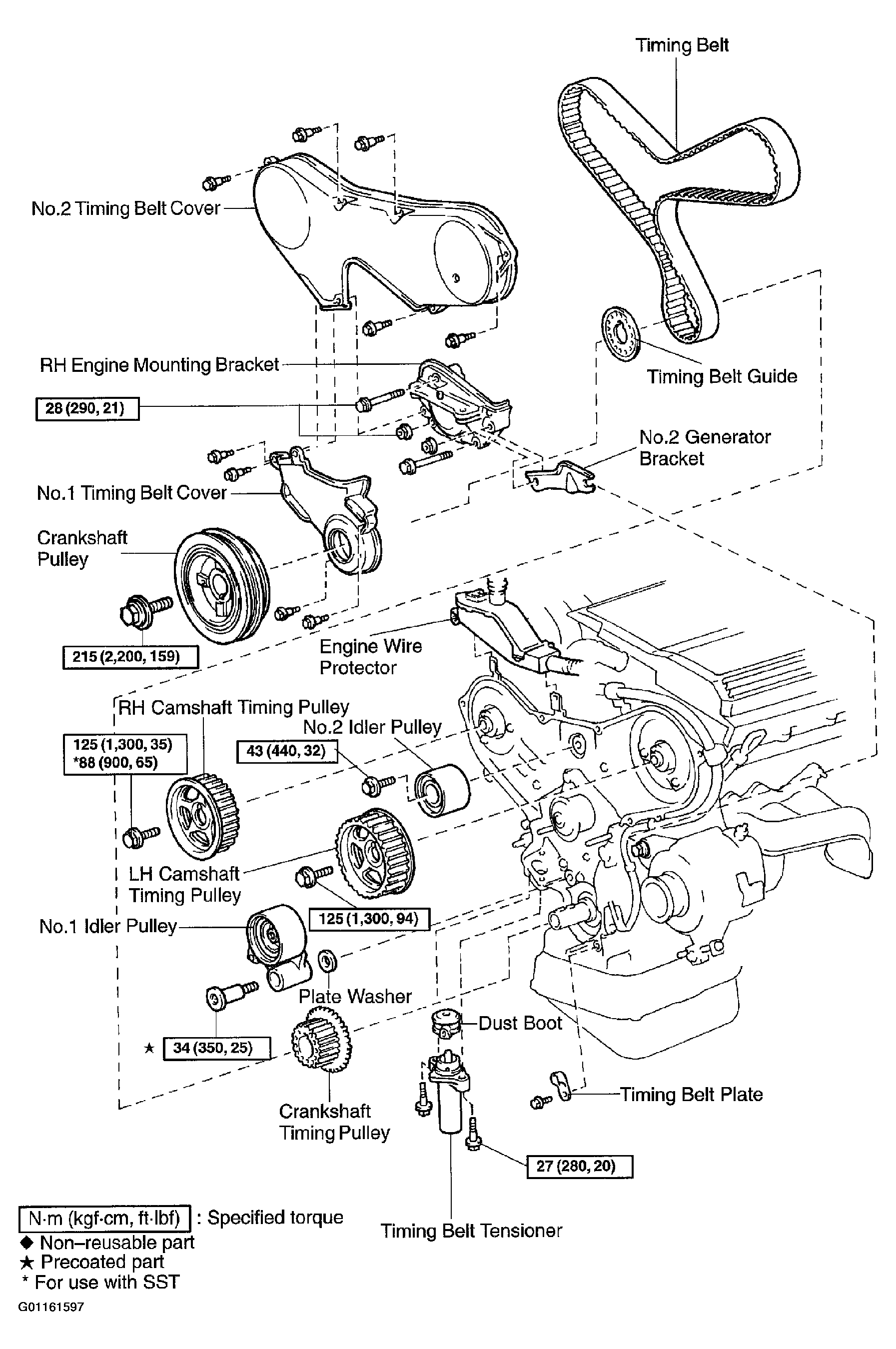

Fig 4: Displaying Oil Pump Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

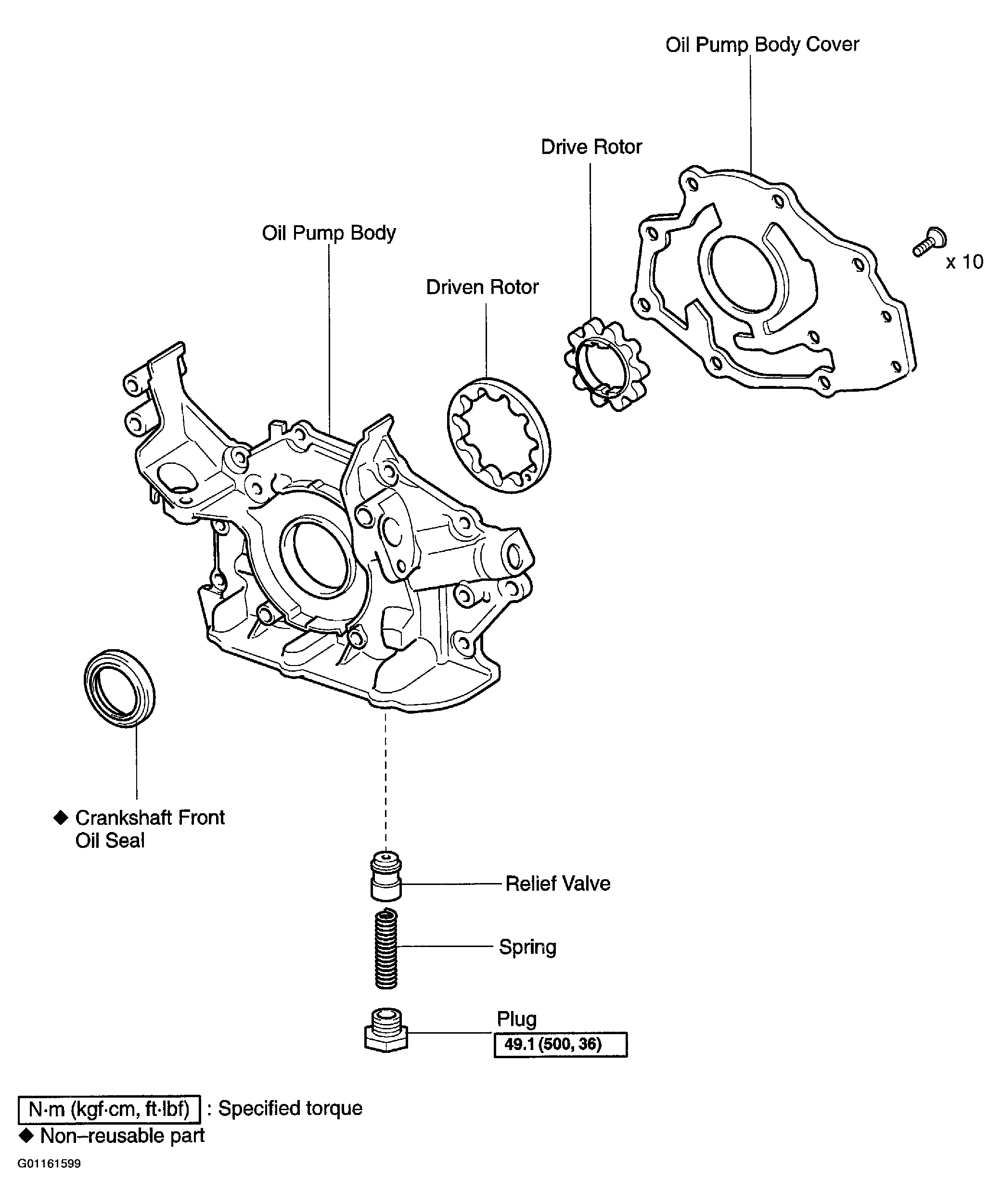

Fig 5: Displaying Oil Pump Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
