Home >> Lexus >> 2002 >> RX 300 FWD >> Repair and Diagnosis >> Steering >> Steering Column >> Steering System >> Tilt Steering Column >> Components

Tilt Steering Column: Components

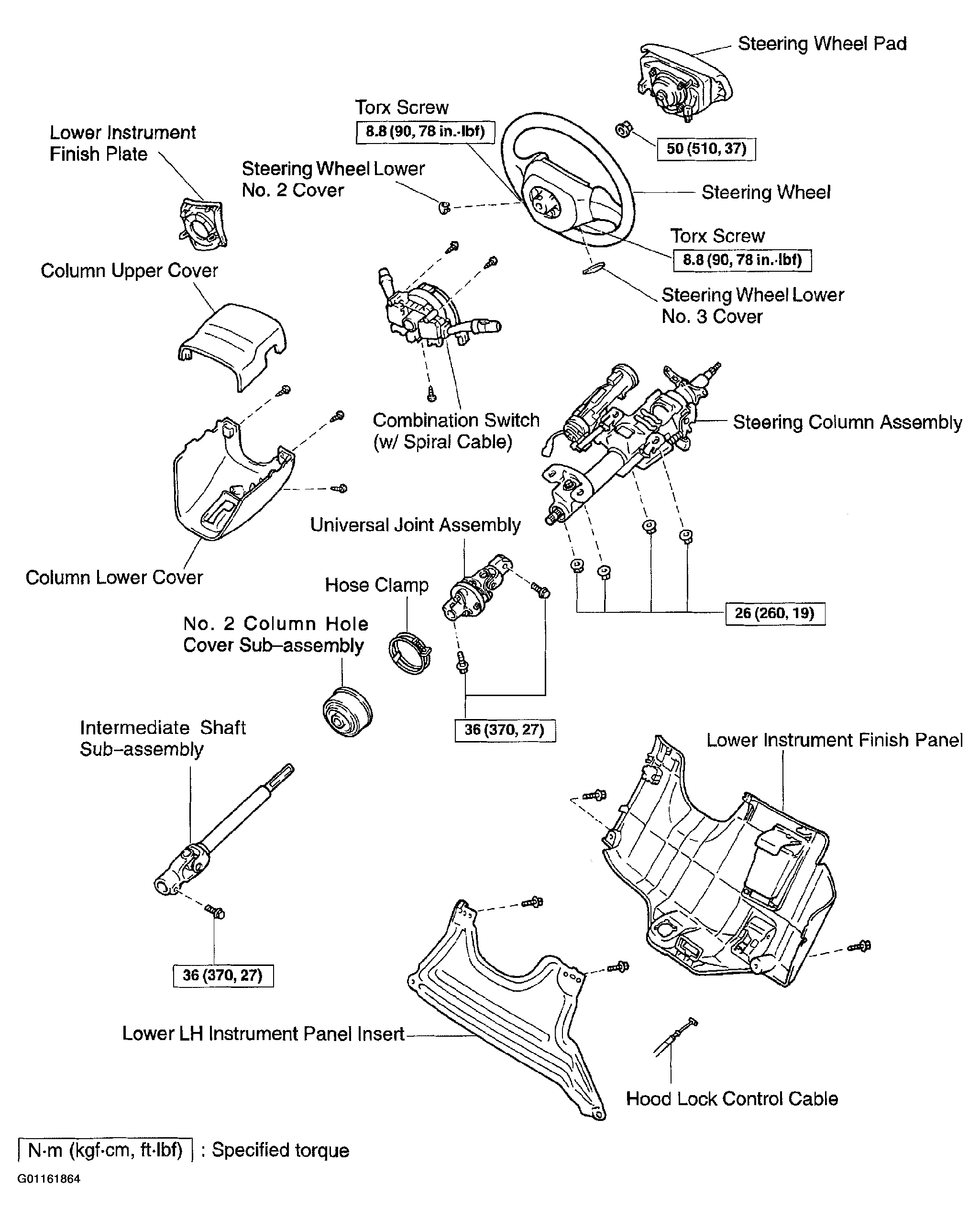

Fig 1: Exploded View Of Tilt Steering Column Components (1 Of 2)
G01161864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

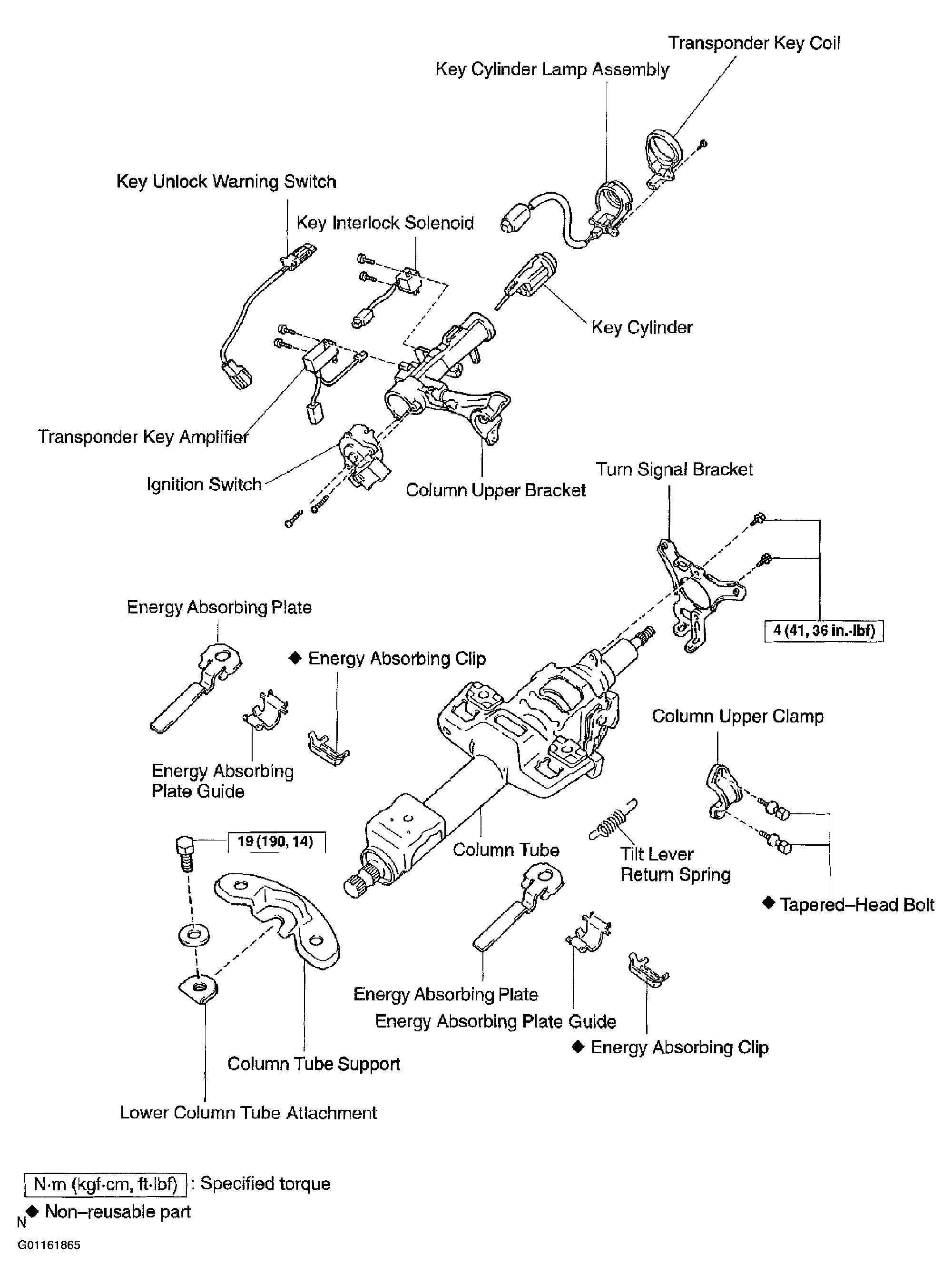

Fig 2: Exploded View Of Tilt Steering Column Components (2 Of 2)
G01161865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
