Back Window Frame Sub-ASSY Upper
>>
Components
Back Window Frame Sub-ASSY Upper: Components

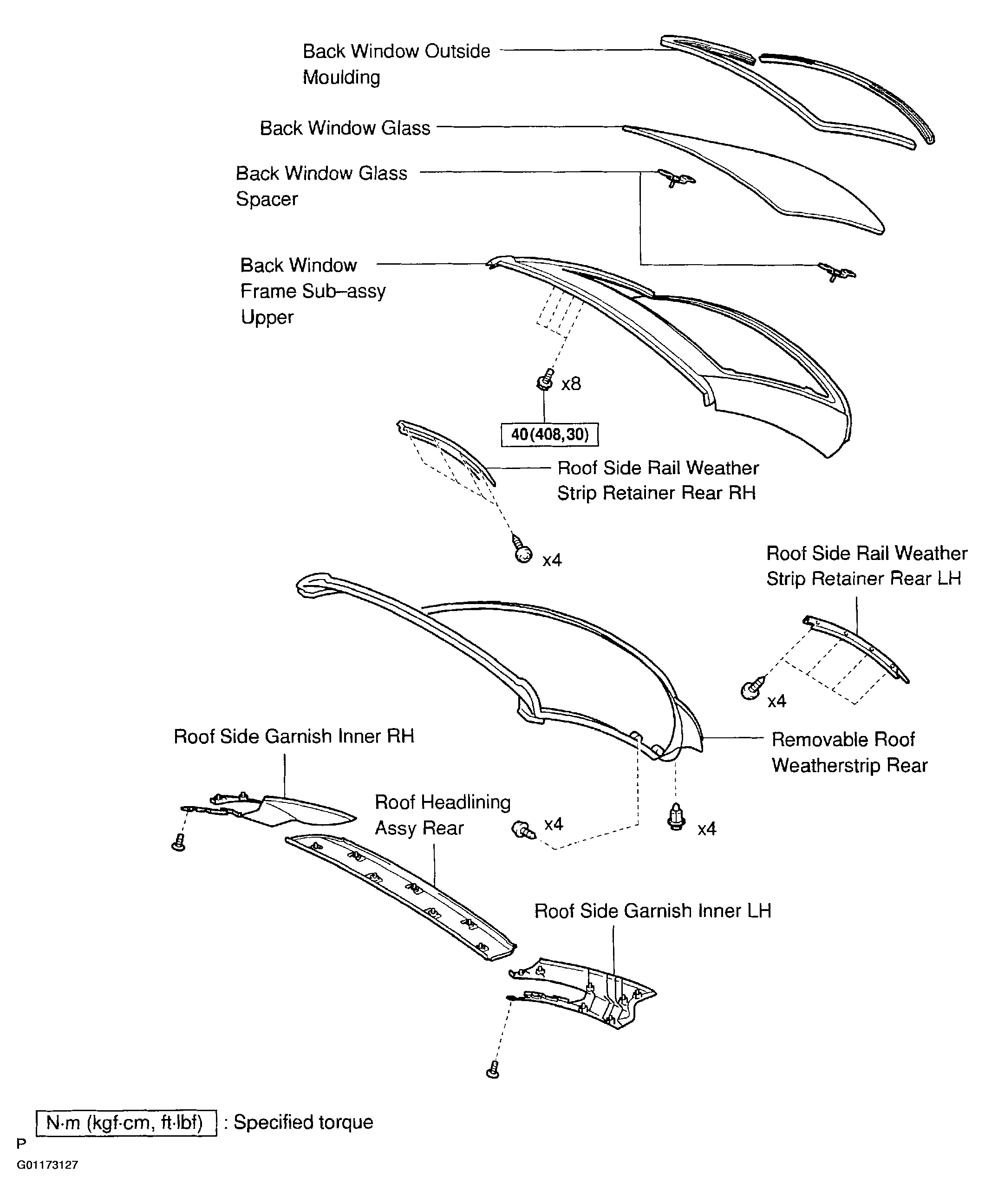

Fig 1: Back Window Frame Sub-Assembly Upper Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
