Engine Mechanical: Mechanical: Camshaft: Components

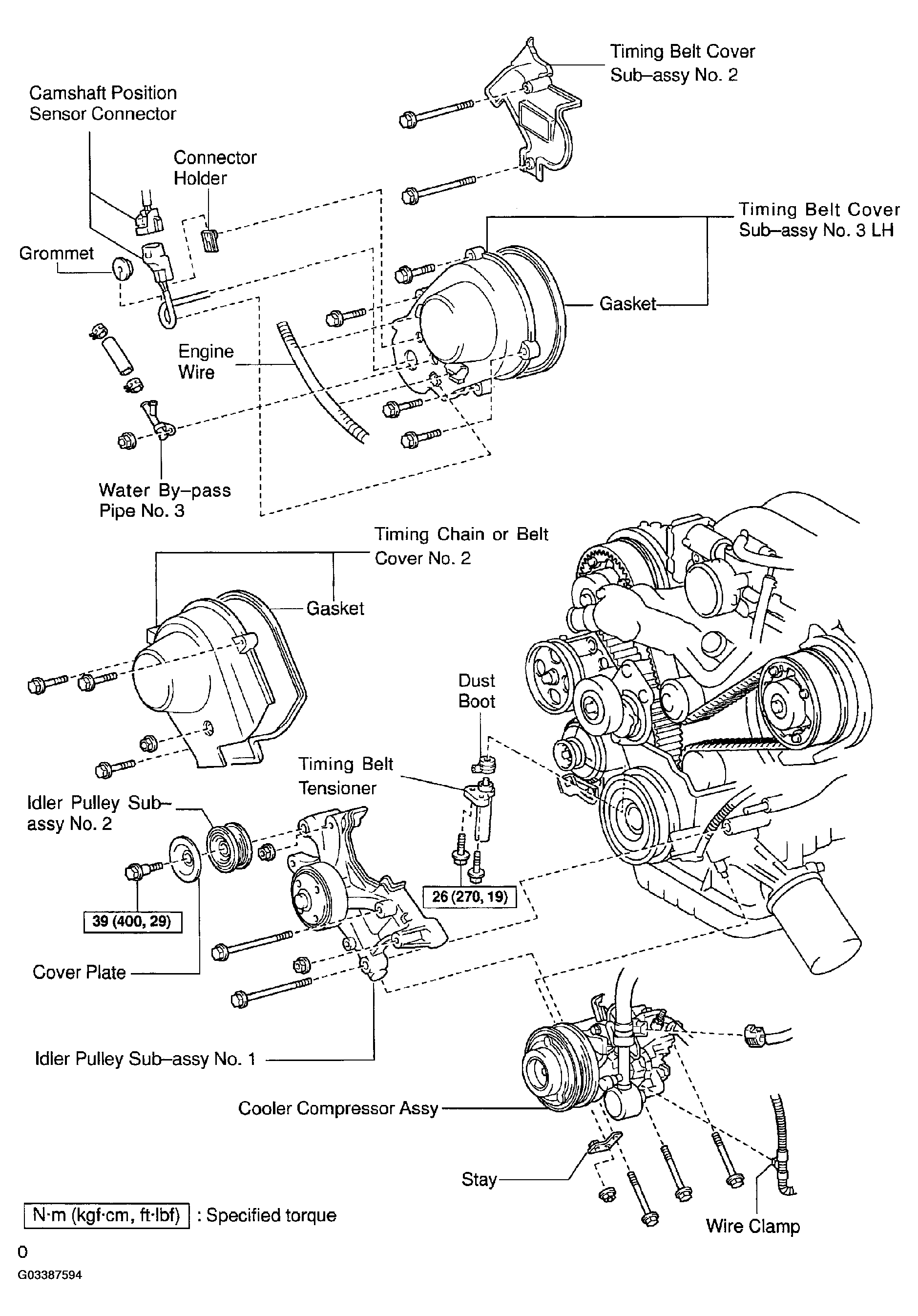

Fig 1: Identifying Components for Camshaft Removal (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

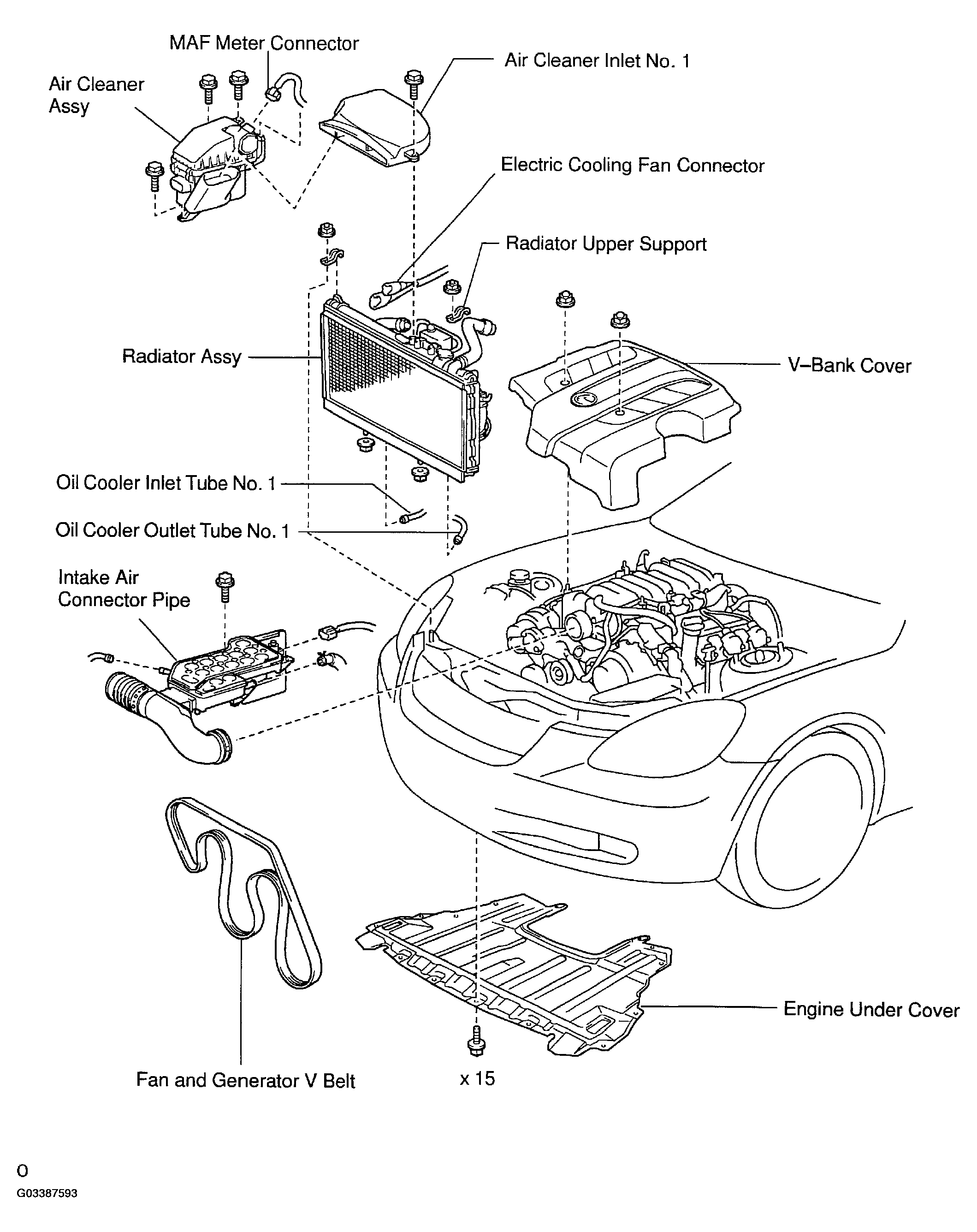

Fig 2: Identifying Components for Camshaft Removal (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

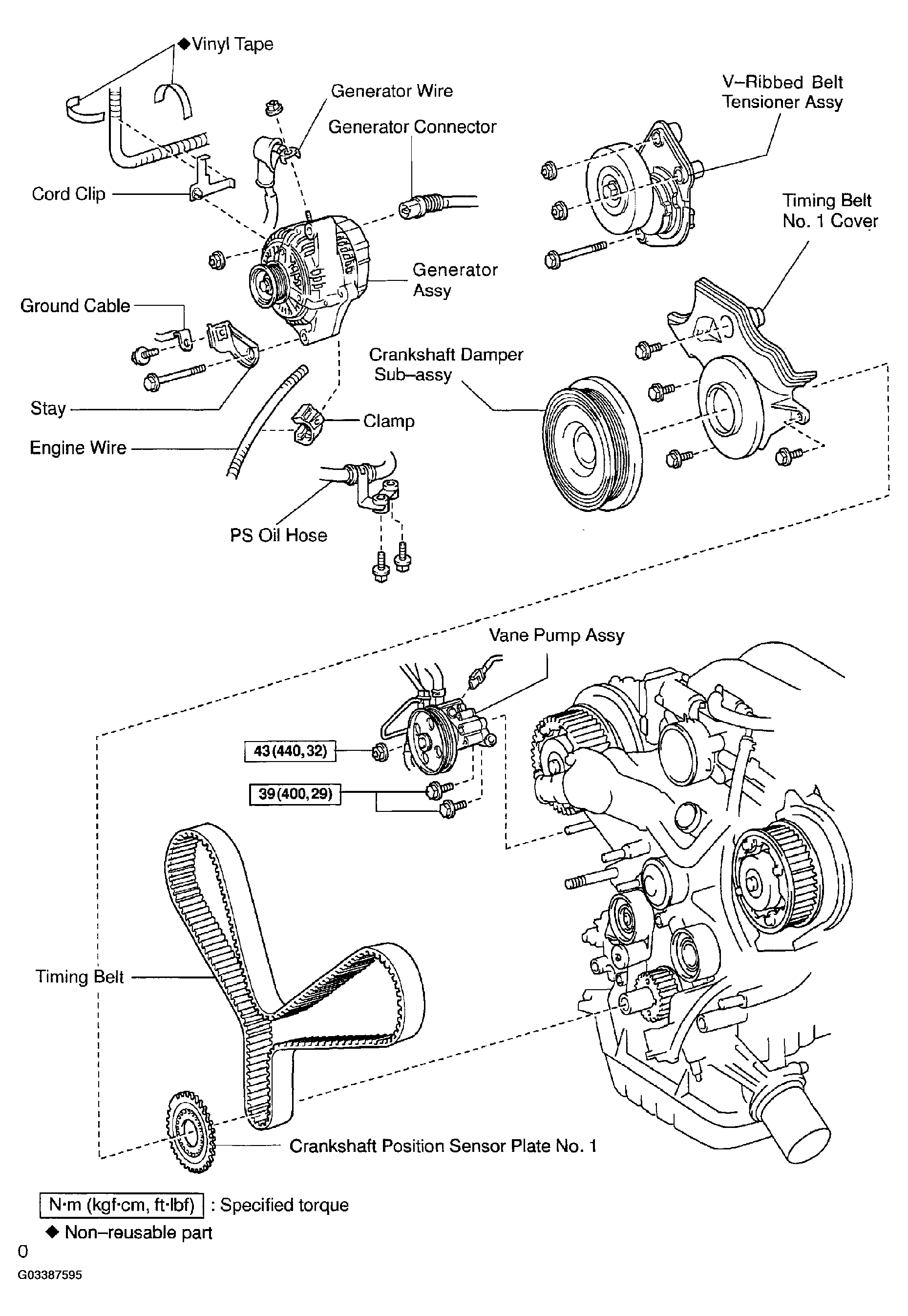

Fig 3: Identifying Components for Camshaft Removal (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

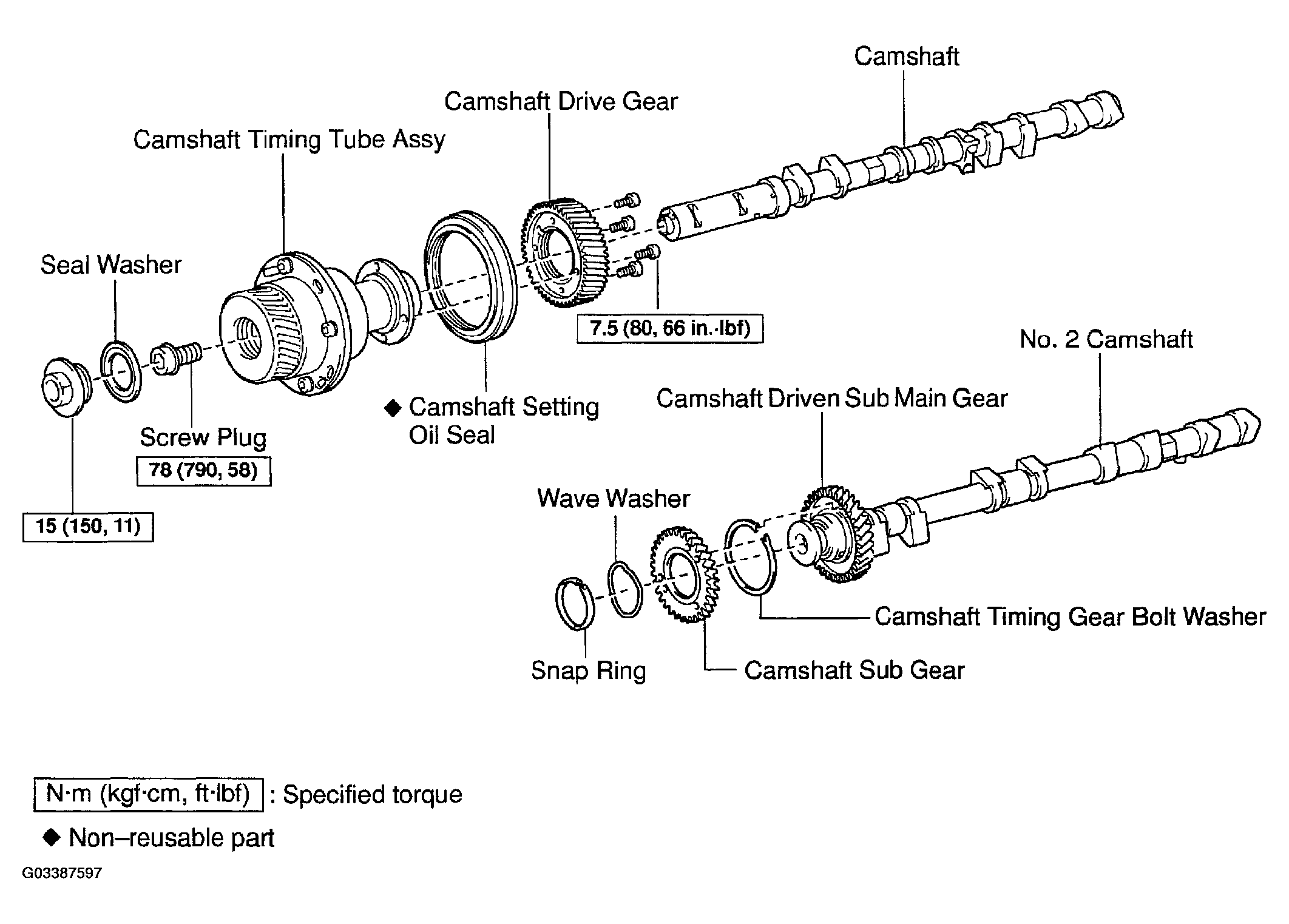

Fig 4: Removing Camshafts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

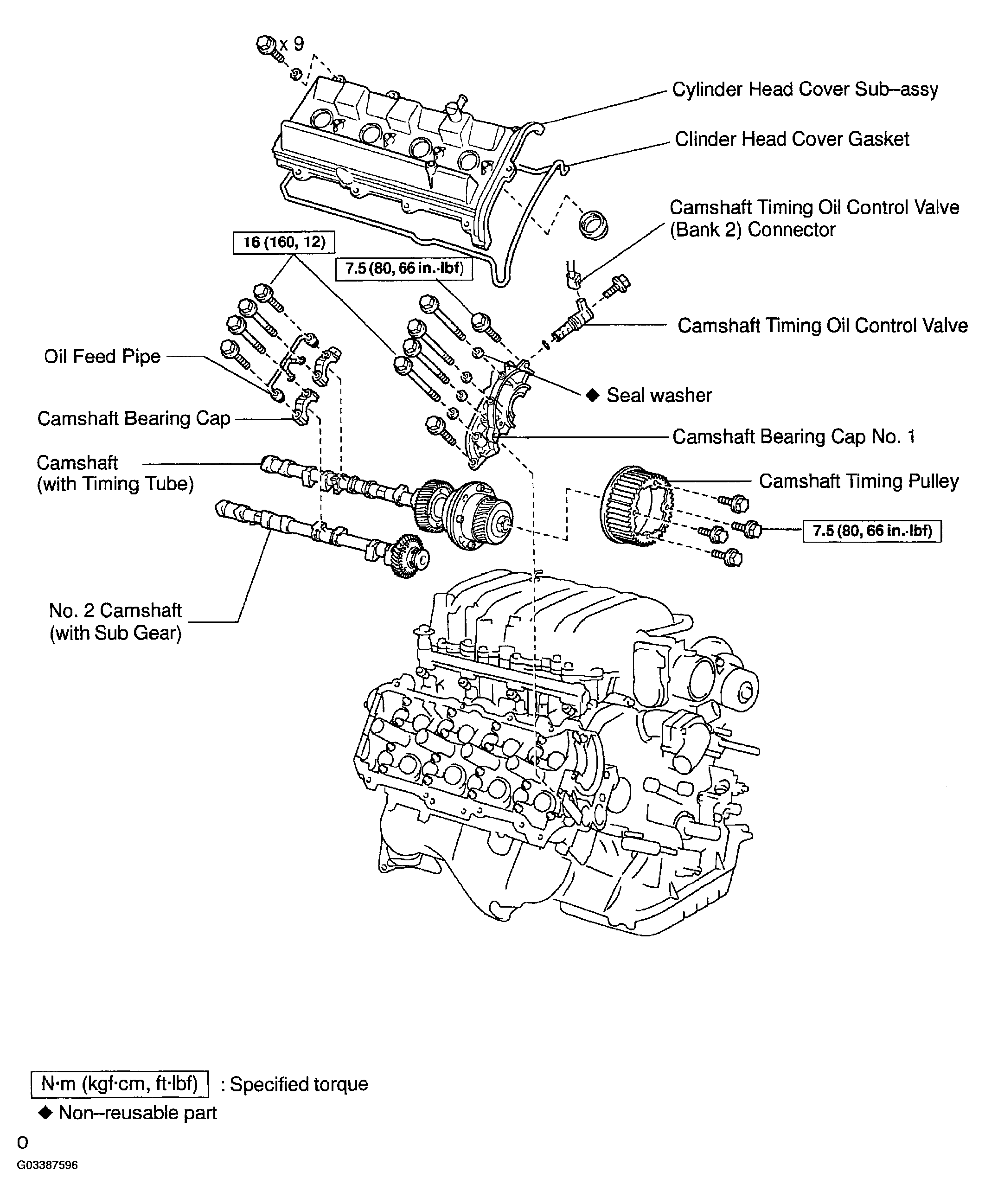

Fig 5: Exploded View Of Camshaft Assemblies

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
