Home >> Lexus >> 2002 >> SC 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

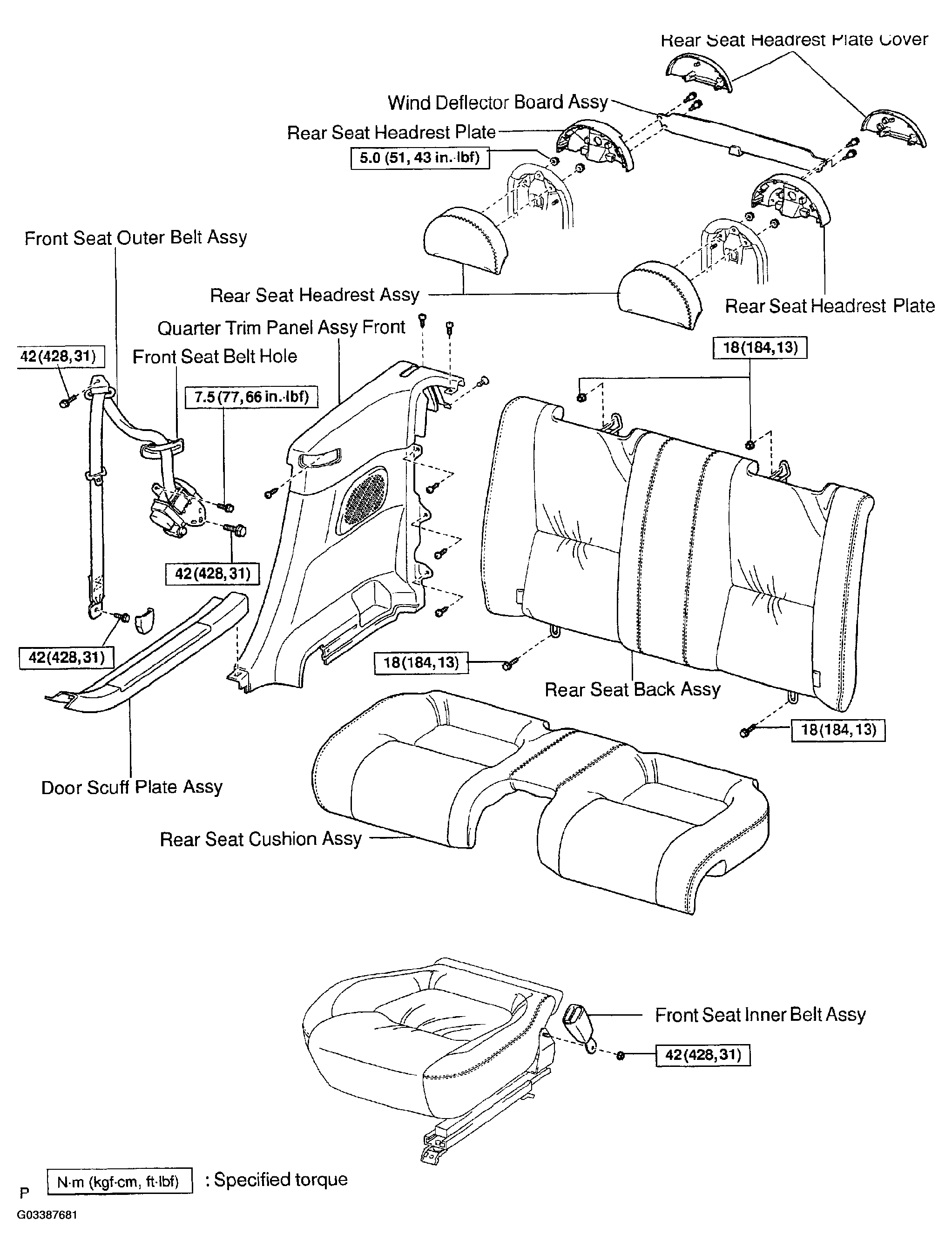

Fig 1: Exploded View Of Front Seat Belt Components
G03387681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
