Home >> Lexus >> 2002 >> SC 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Rear Seat Belt >> Components

Rear Seat Belt: Components

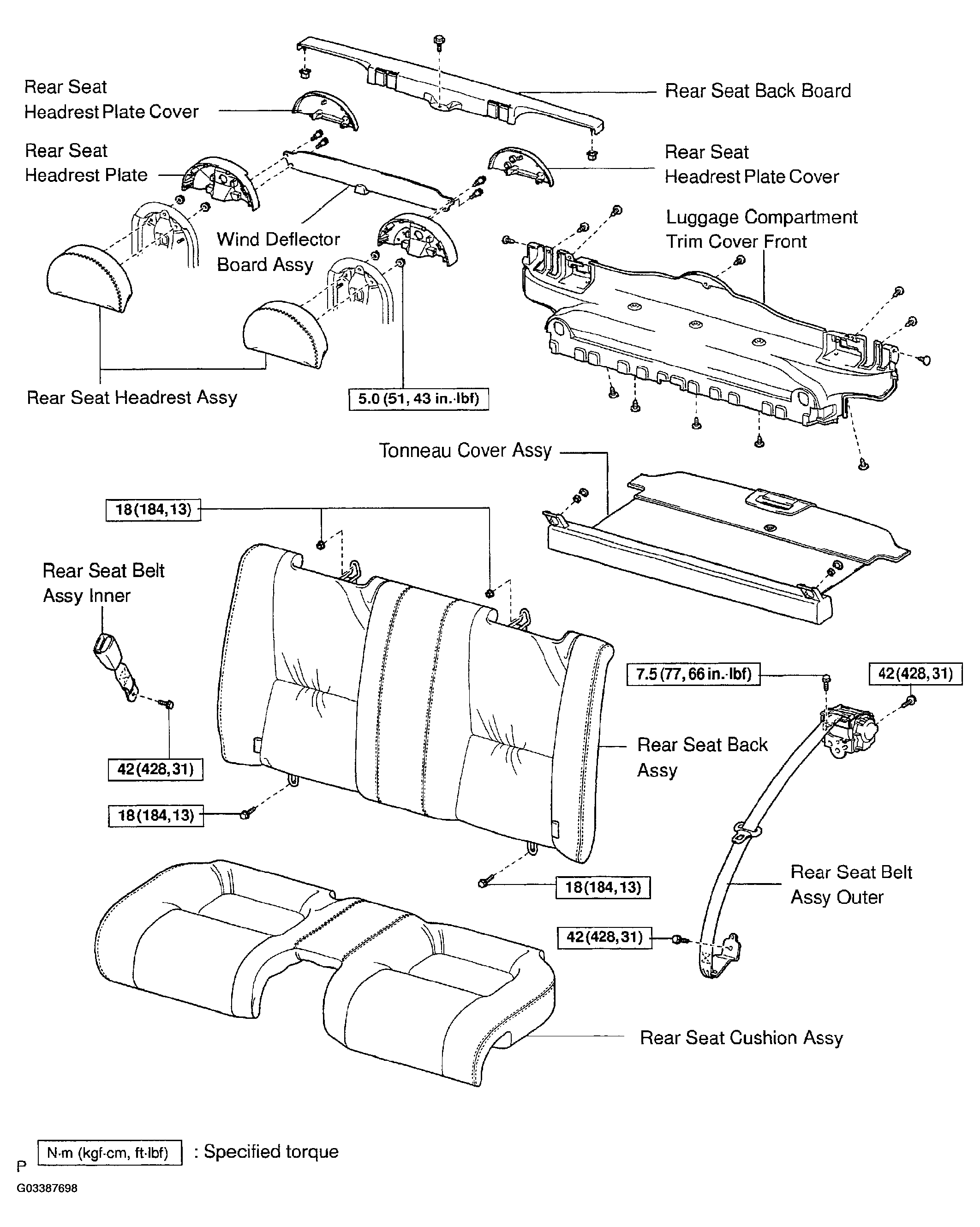

Fig 1: Exploded View Of Rear Seat Belt Components
G03387698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
