Home >> Lexus >> 2003 >> ES 300 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirror Control System >> Location

Power Mirror Control System: Location

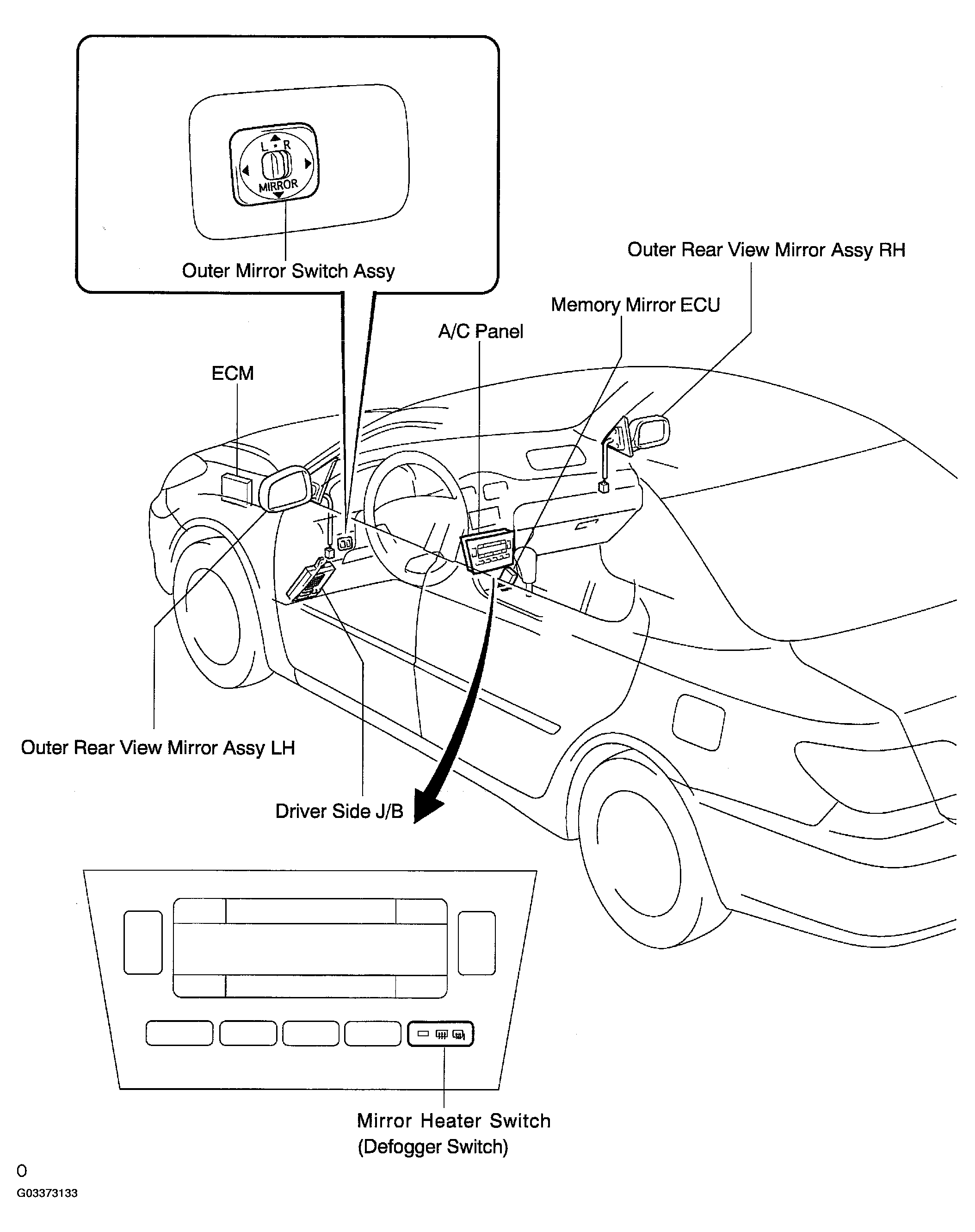

Fig 1: Identifying Power Mirror Control System Location

G03373133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
