Clock ASSY: Replacement

  1. SHIP MODE SETTING(W/ CD CHANGER)(See  REPLACEMENT  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL
  3. REMOVE AIR CONDITIONER CONTROL ASSEMBLY(See  REPLACEMENT   )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT   )
  5. REMOVE CLOCK ASSY
    1. Disengage the 4 claws and remove the clock assy.

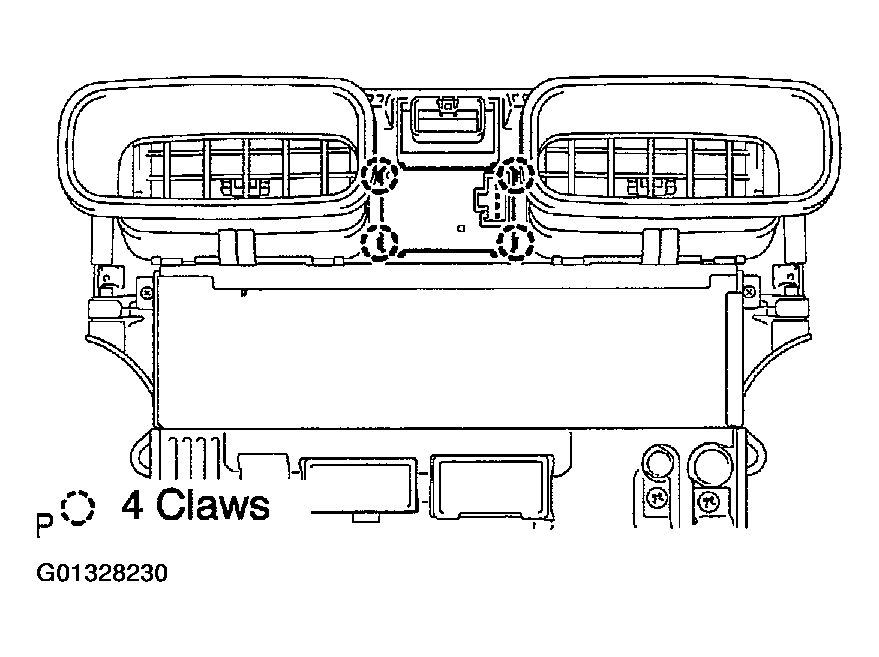

    Fig 1: Removing Claws And Clock Assy
    G01328230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SHIP MODE CONFIRMATION(W/ CD CHANGER)(See REPLACEMENT  )
