Automatic Trans: Servicing: Identification: Transaxle

NOTE: Complete transaxle identification plate information is not supplied by the manufacturer.

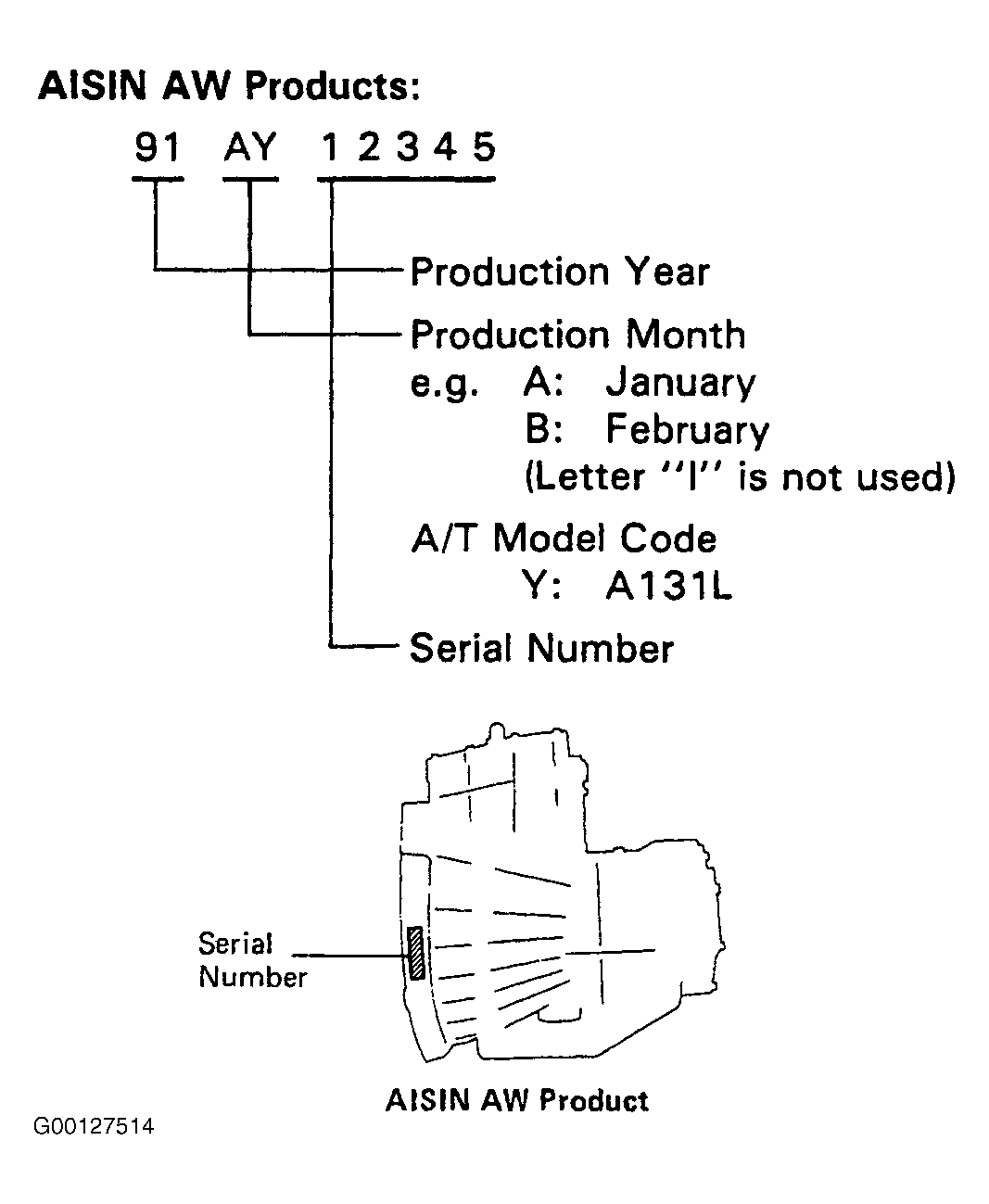

Fig 1: Transaxle Identification Information (AISIN)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

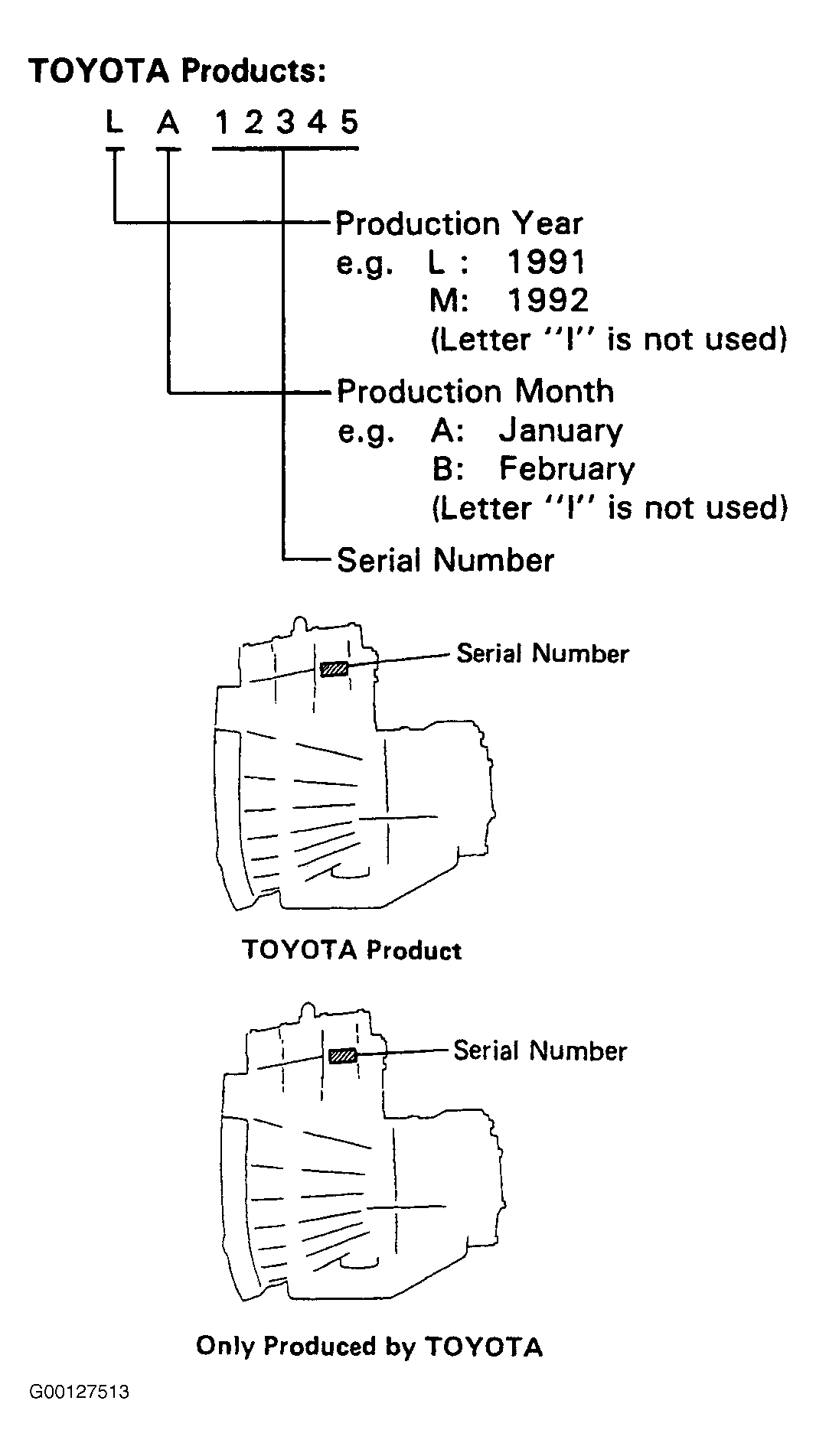

Fig 2: Transaxle Identification Information (Toyota)
