Generators & Regulators: Replacement

Cracks on the rib side of a drive belt are considered acceptable. If the drive belt has chunks missing from the ribs, it should be replaced.

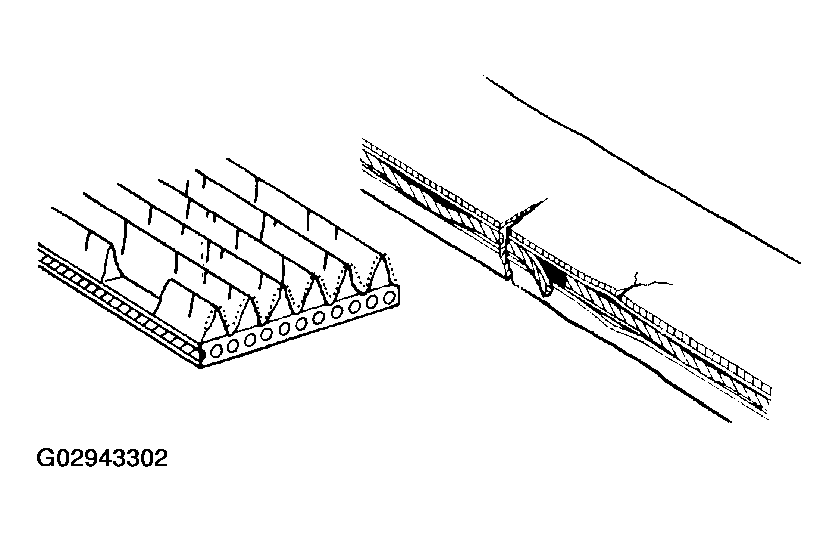

Fig 1: Inspecting Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
The drive belt tension can be released by turning the belt tensioner clockwise.

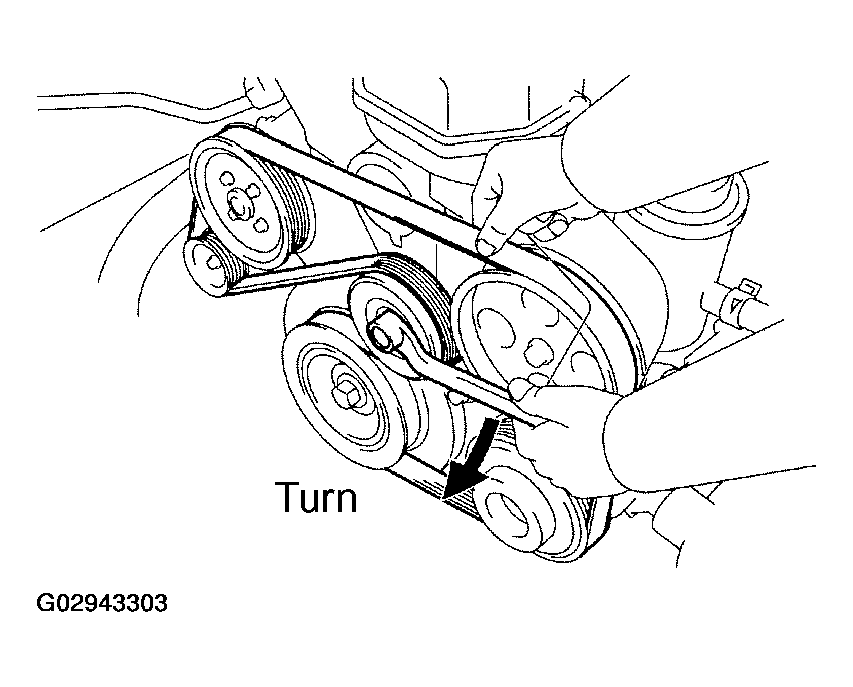

Fig 2: Turning Belt Tensioner Clockwise
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
