Combination Meter: Components

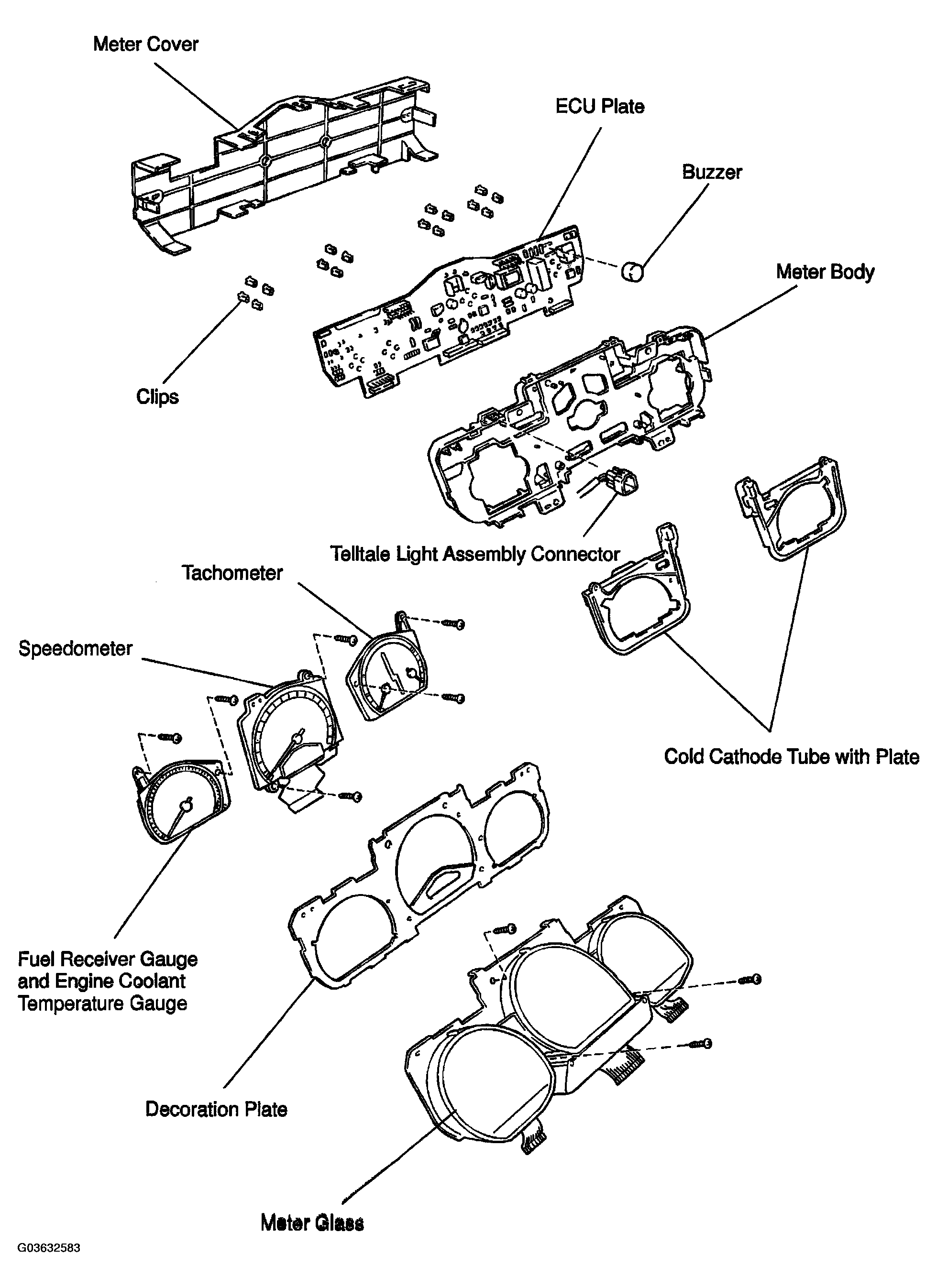

Fig 1: Exploded View Of Combination Meter Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
