Vane Pump ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

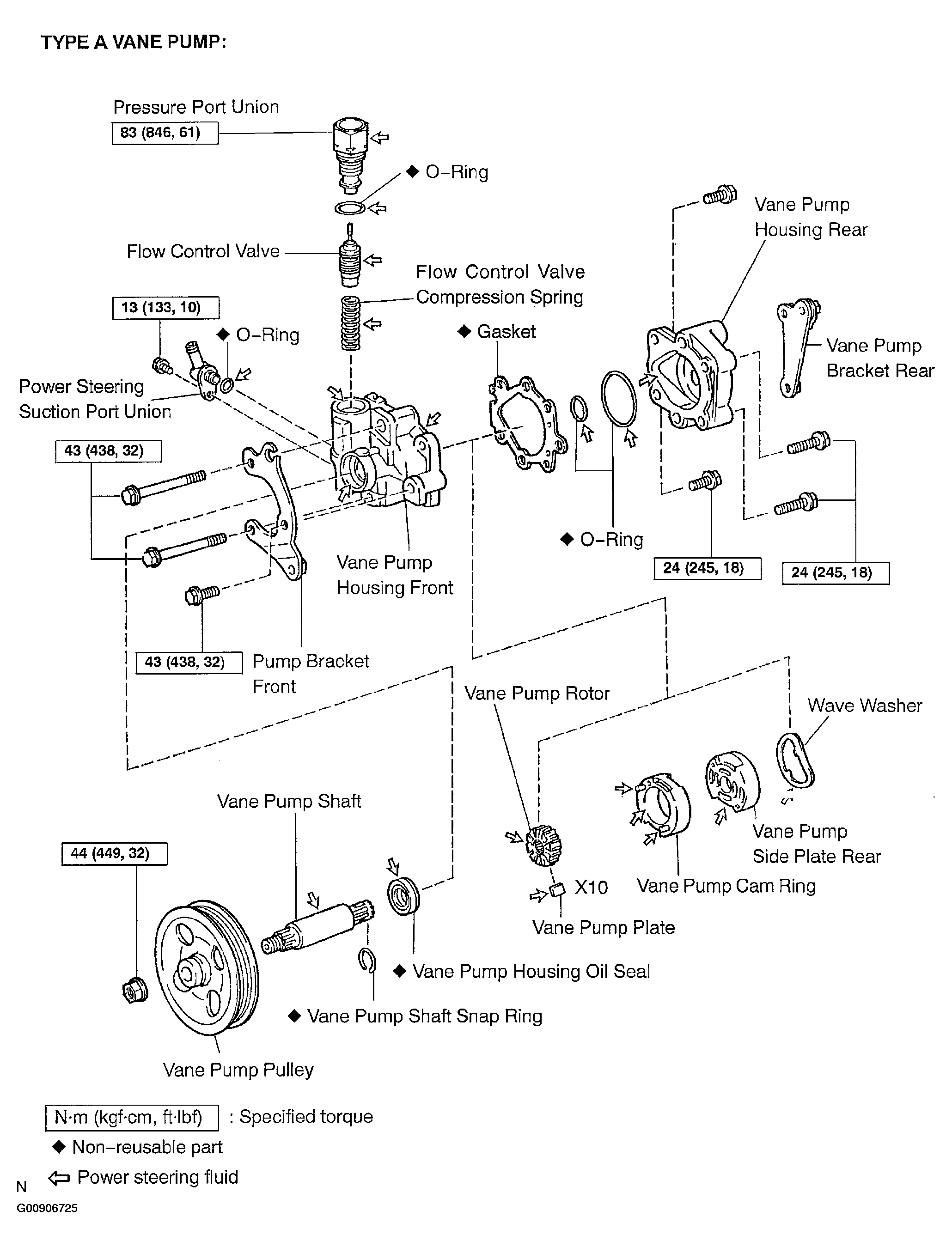

Fig 1: Identifying Vane Pump Assy (Type A) Components
G00906725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

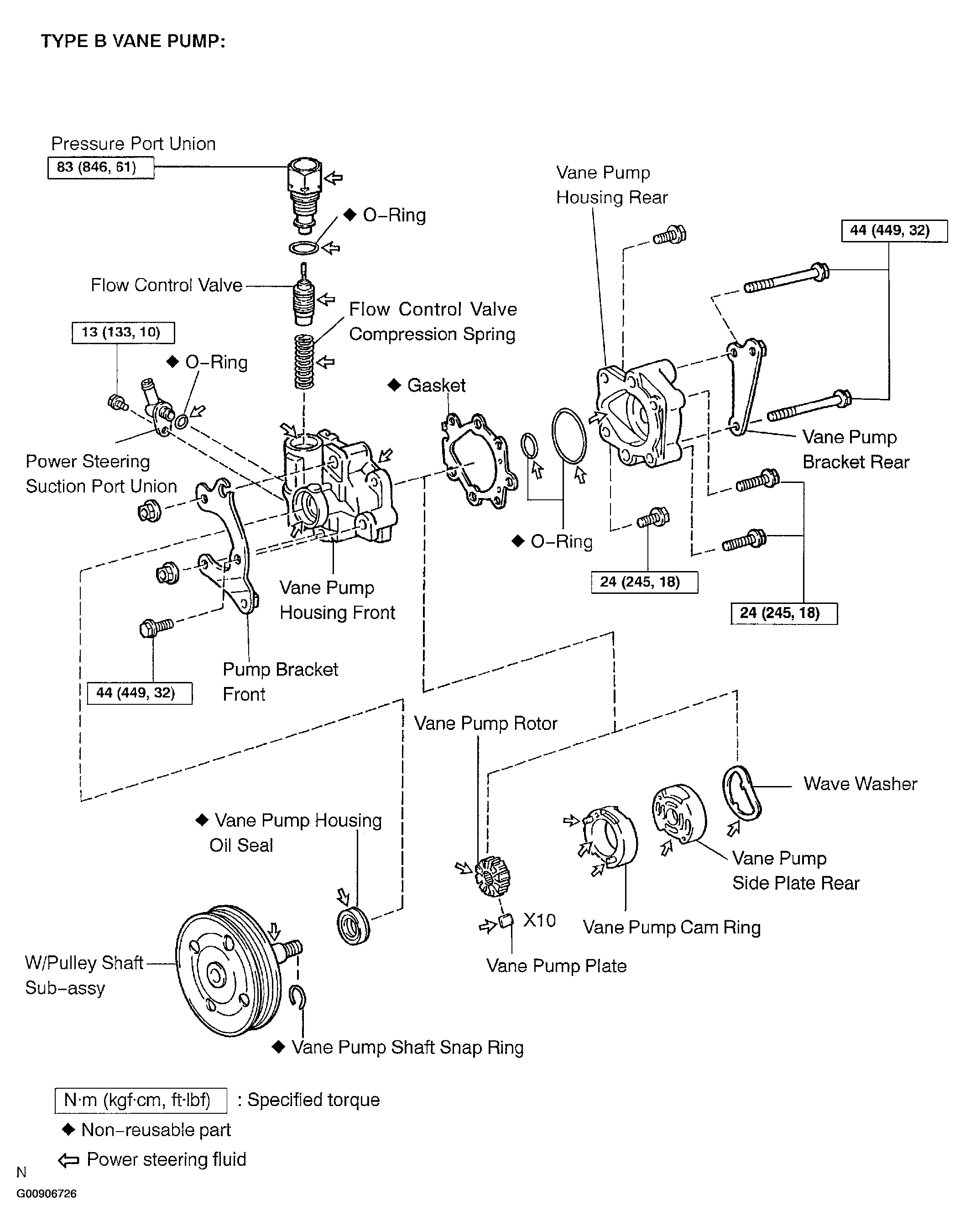

Fig 2: Identifying Vane Pump Assy (Type B) Components
G00906726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
