Home >> Lexus >> 2003 >> GS 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

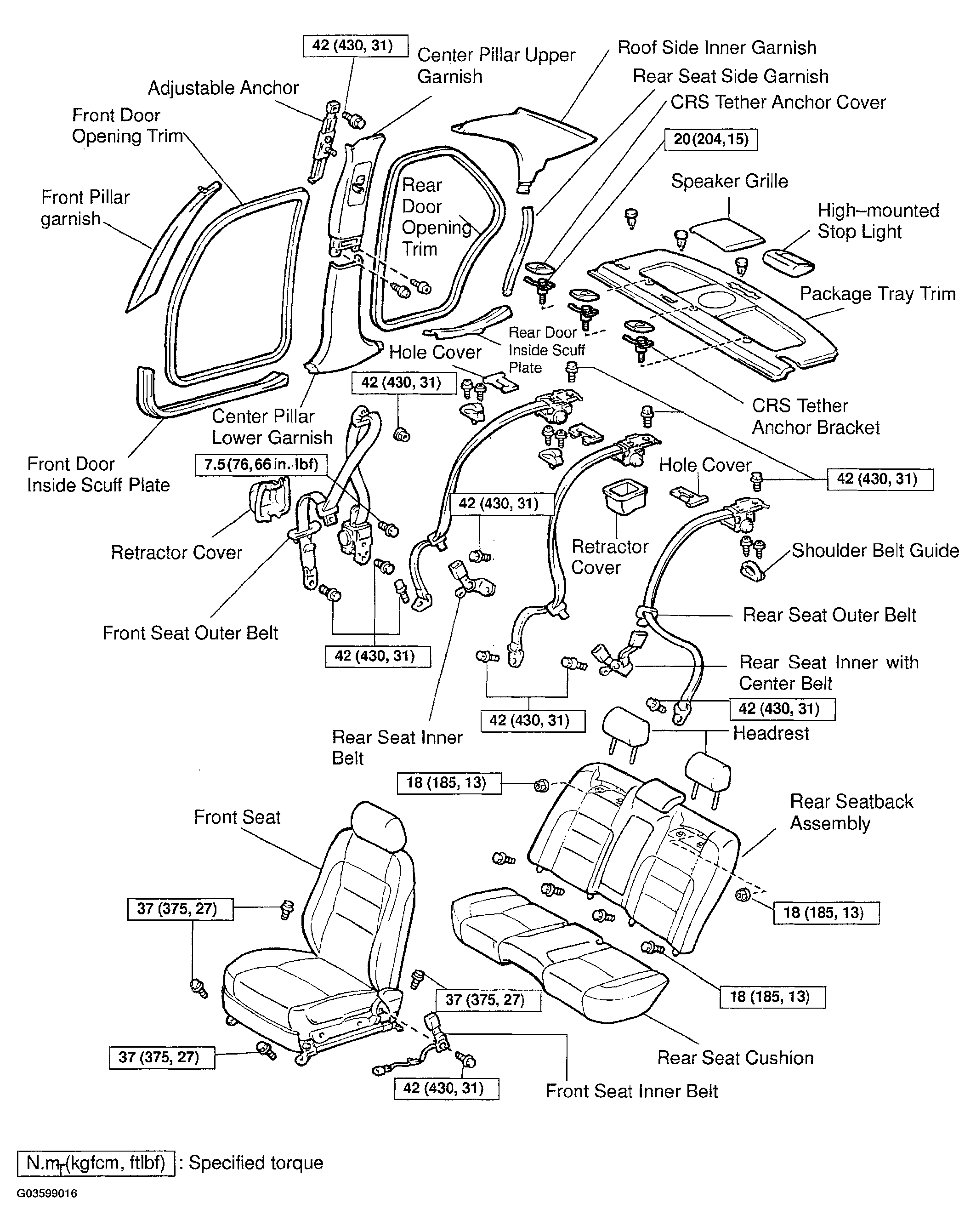

Fig 1: Exploded View Of Seat Belts
G03599016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
