Home >> Lexus >> 2003 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Power Windows >> Components

Quarter Power Windows: Components

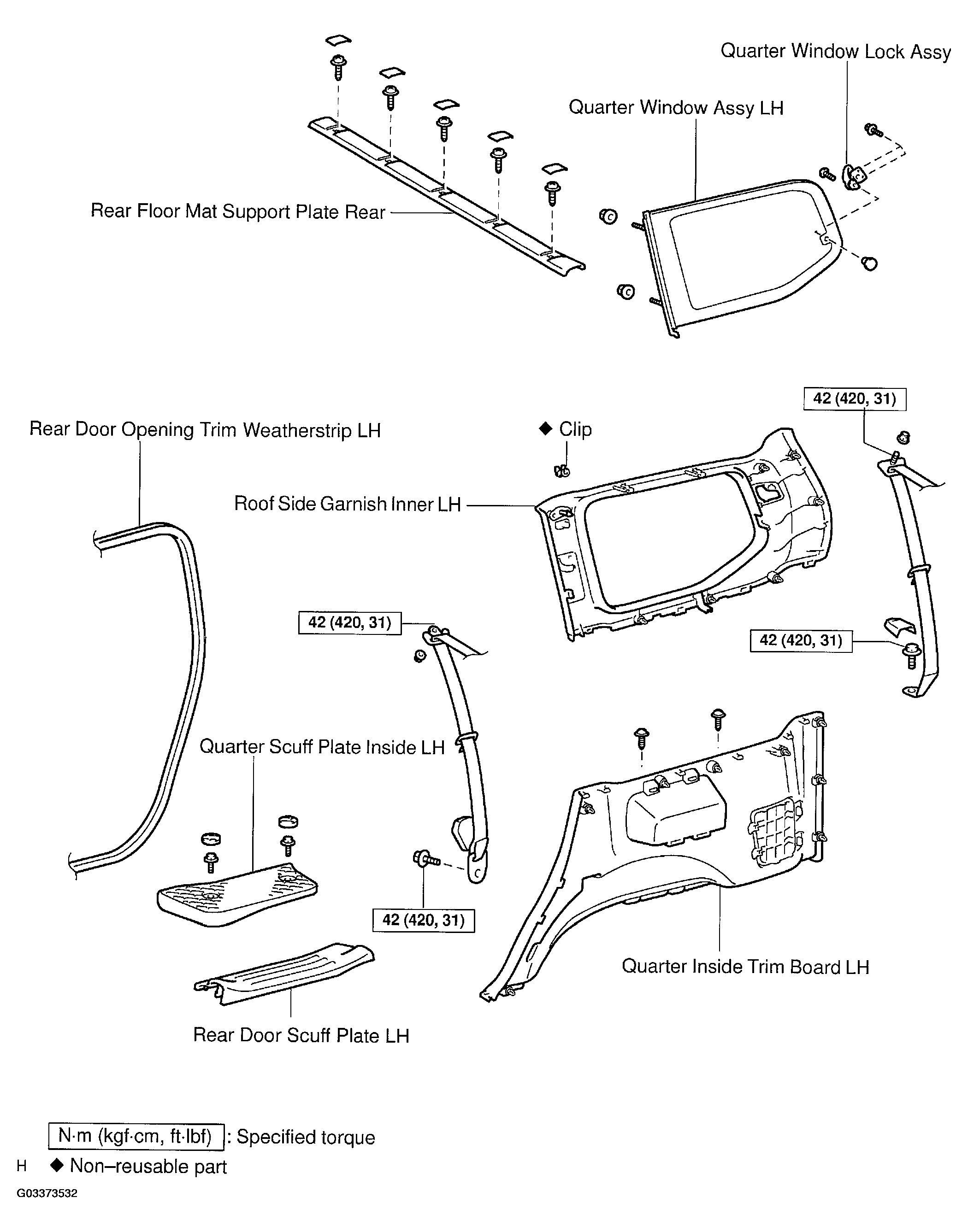

Fig 1: Exploded View Of Quarter Window Assy LH
G03373532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
