Home >> Lexus >> 2003 >> GX 470 >> Repair and Diagnosis >> Steering >> Steering Column >> Steering System >> Steering Column ASSY >> Components

Steering Column ASSY: Components

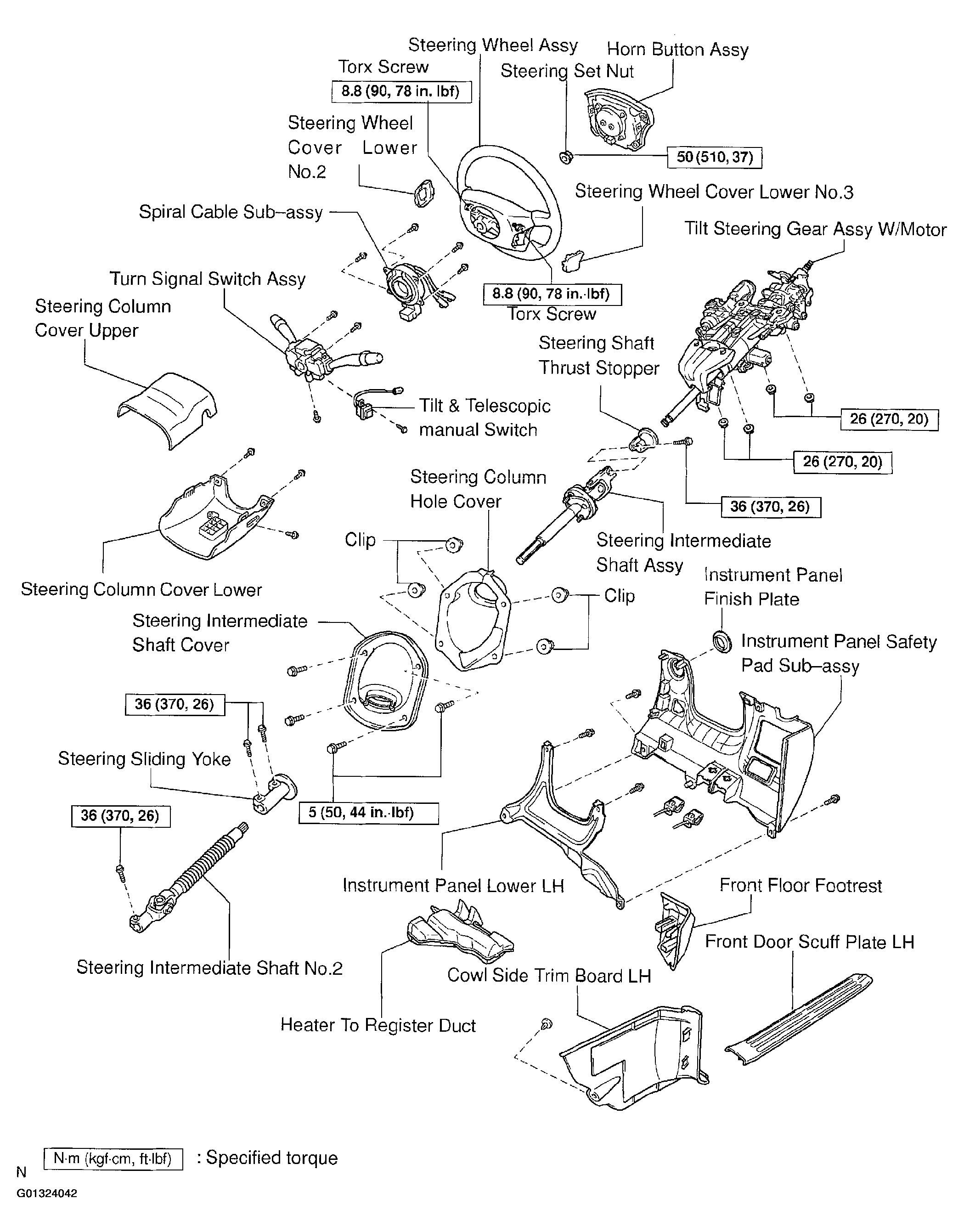

Fig 1: Exploded View Of Steering Column Assembly (1 Of 2)
G01324042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

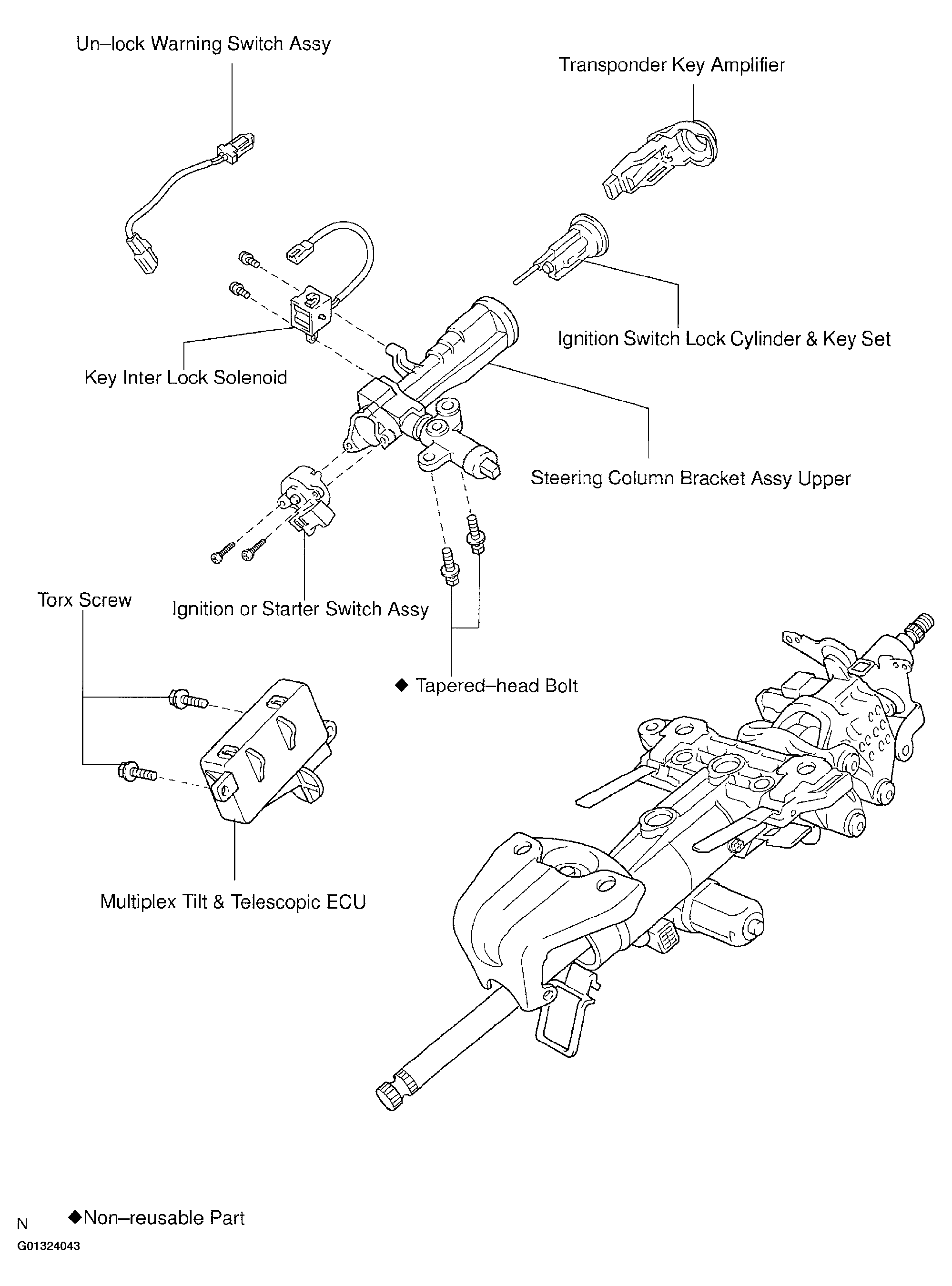

Fig 2: Exploded View Of Steering Column Assembly (2 Of 2)
G01324043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
