Home >> Lexus >> 2003 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Location

Power Window Control System: Location

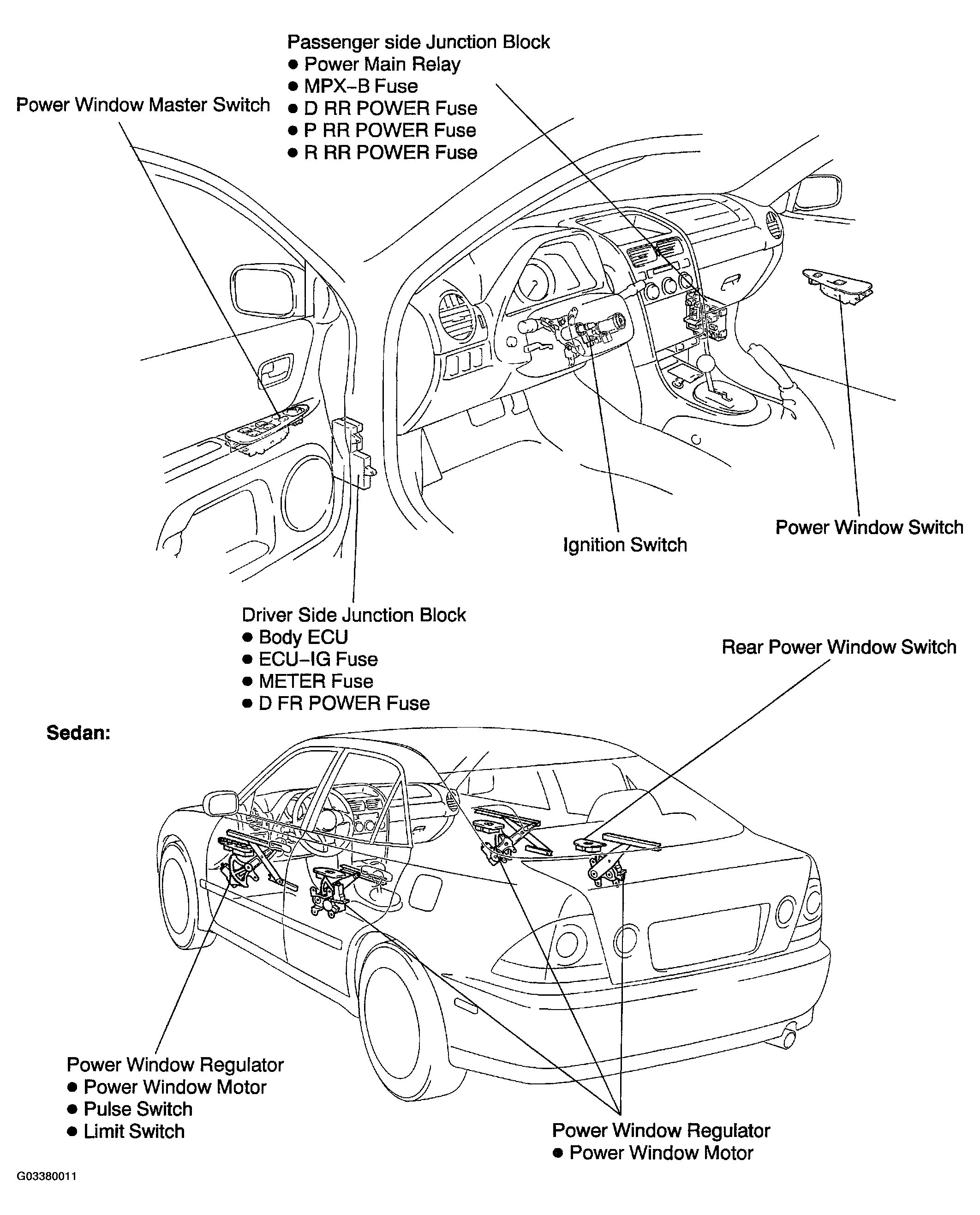

Fig 1: Identifying Power Window Control System Component Location (1 Of 2)
G03380011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

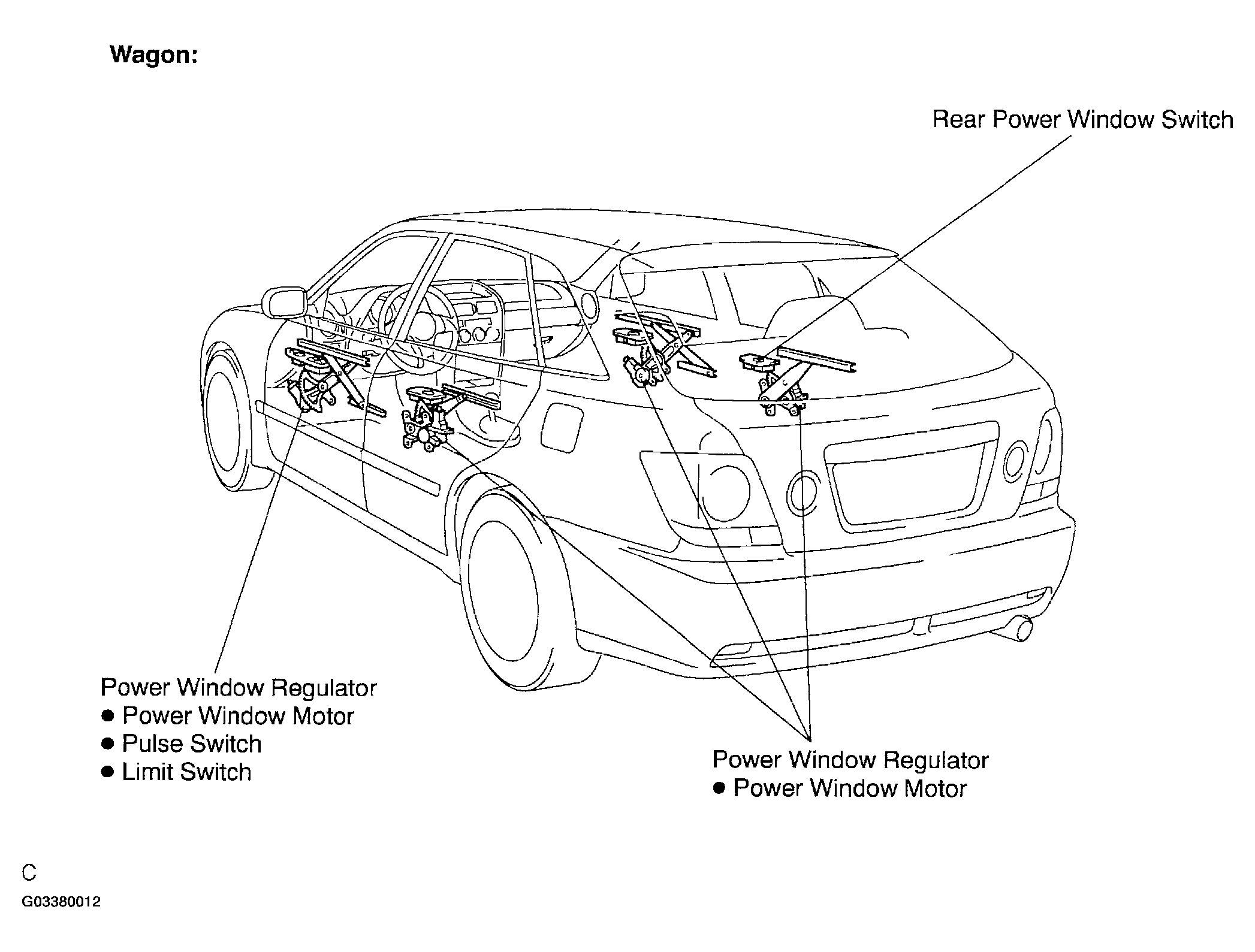

Fig 2: Identifying Power Window Control System Component Location (2 Of 2)
G03380012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
