Tilt Steering Column: Components

Fig 1: Identifying Tilt Steering Column Components (1 Of 2)
G01315604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

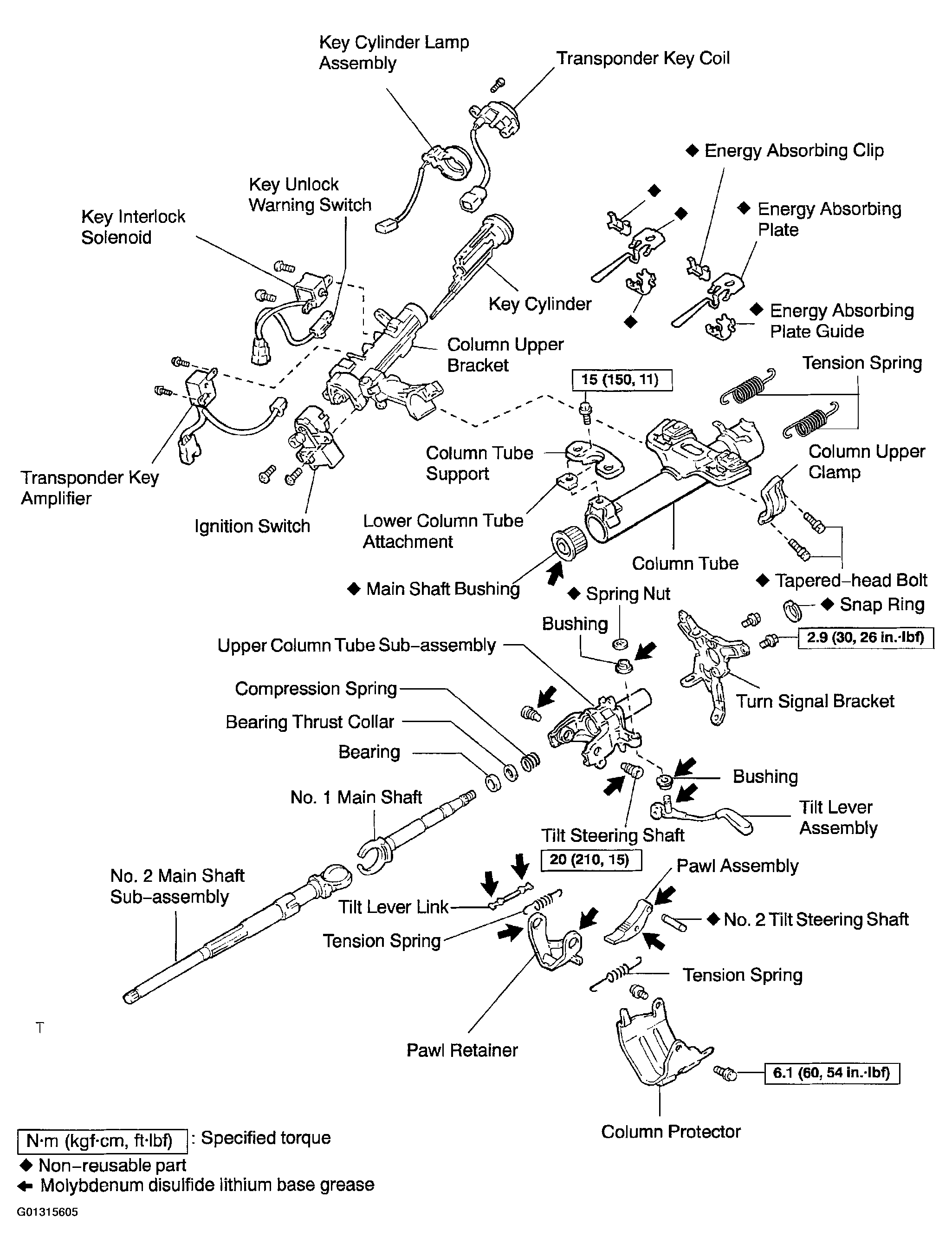

Fig 2: Identifying Tilt Steering Column Components (2 Of 2)
G01315605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
