Home >> Lexus >> 2003 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> Troubleshooting >> Problem Symptoms Table

Problem Symptoms Table

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

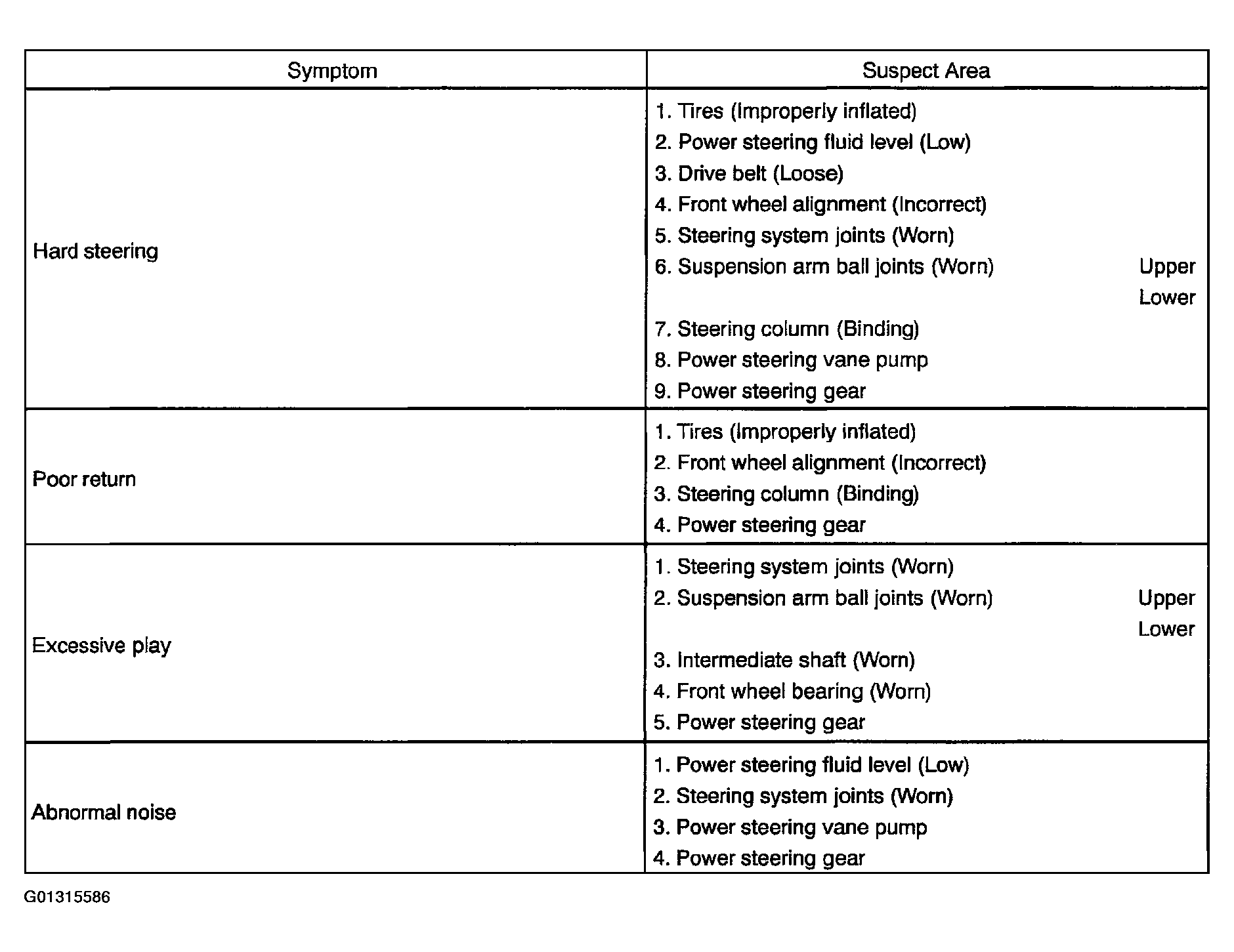

Fig 1: Problem Symptoms - Steering System
G01315586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
