Home >> Lexus >> 2003 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

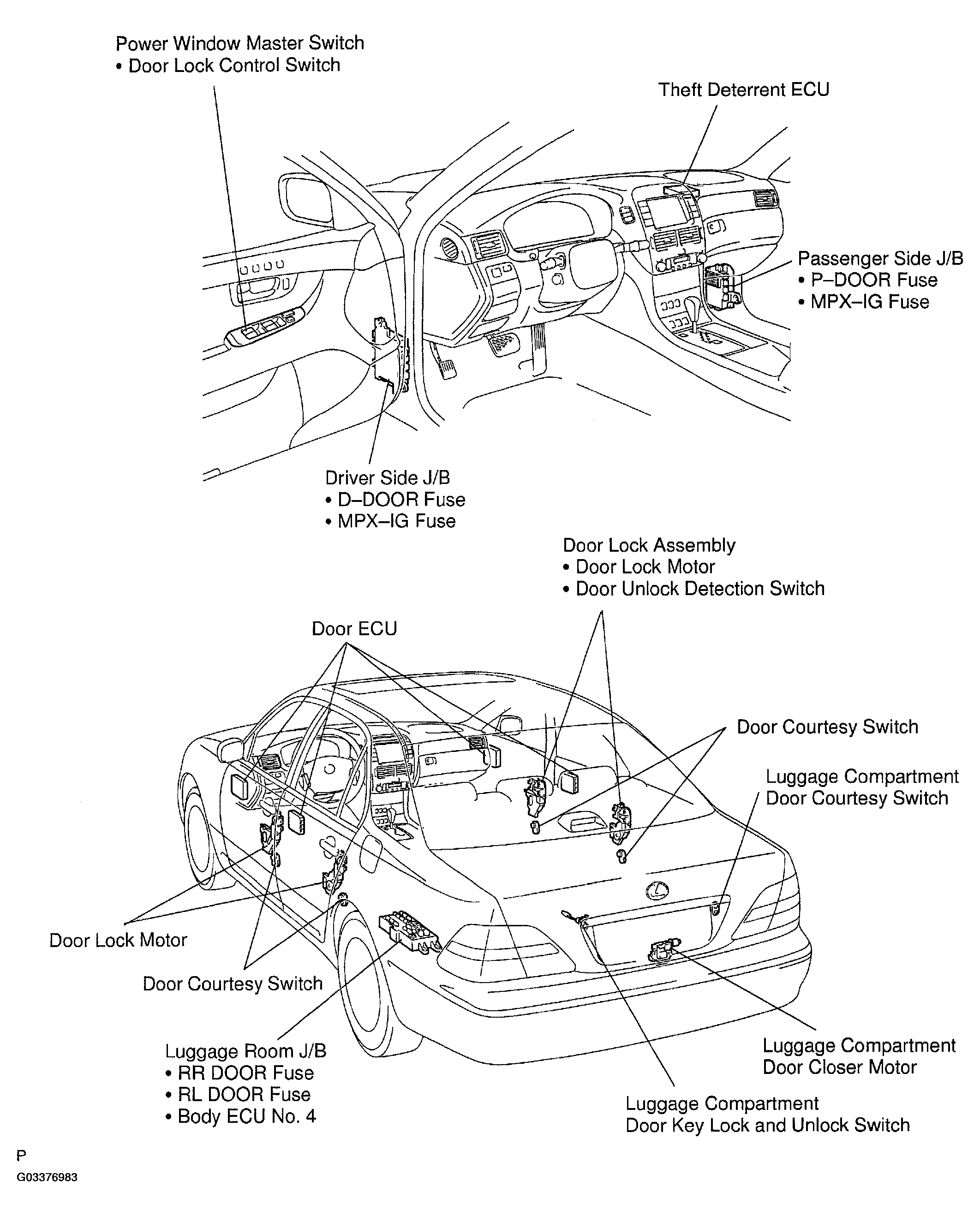

Fig 1: Locating Power Door Lock Control System Components

G03376983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
