Front Bumper: Components

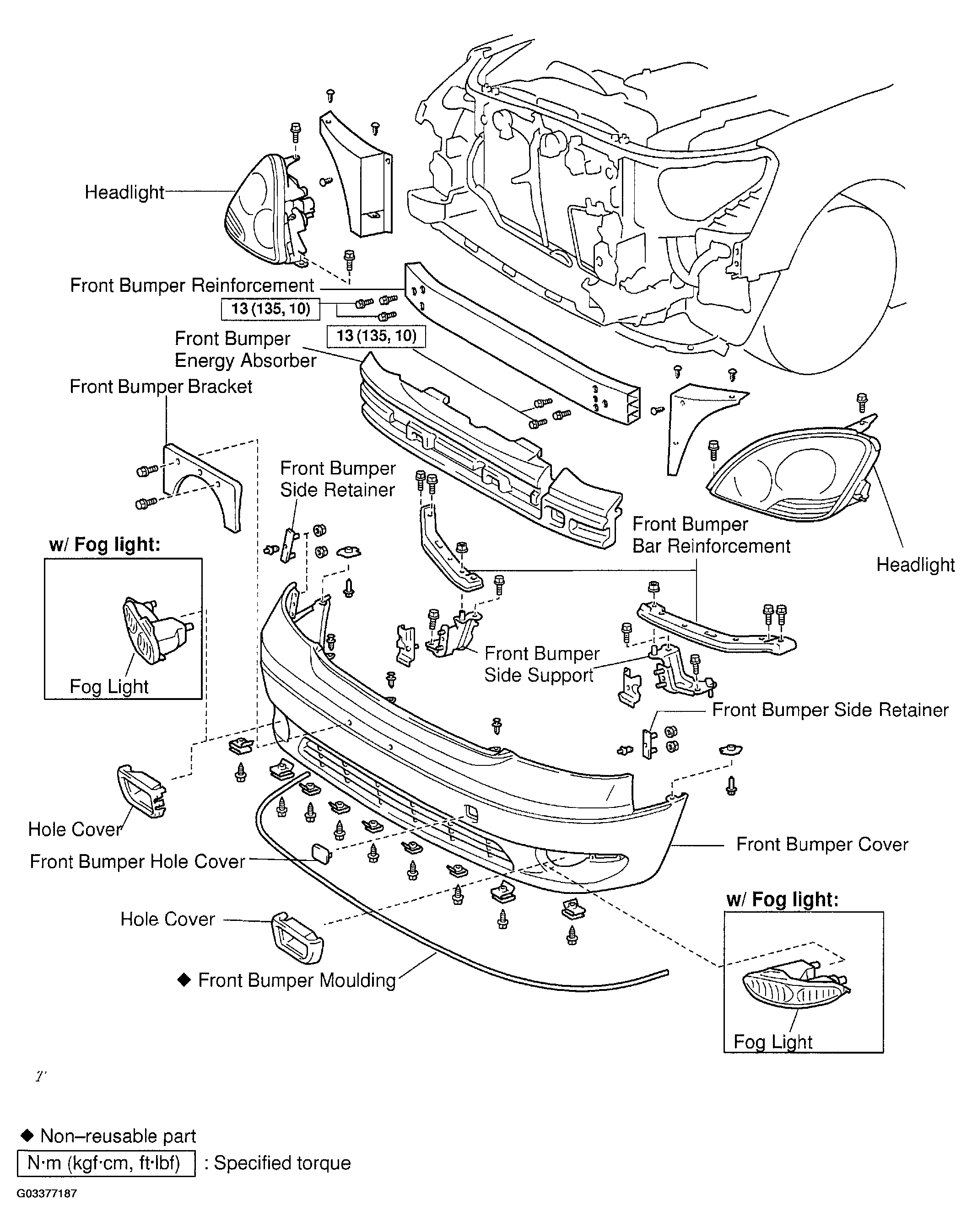

Fig 1: Identifying Front Bumper Components
G03377187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

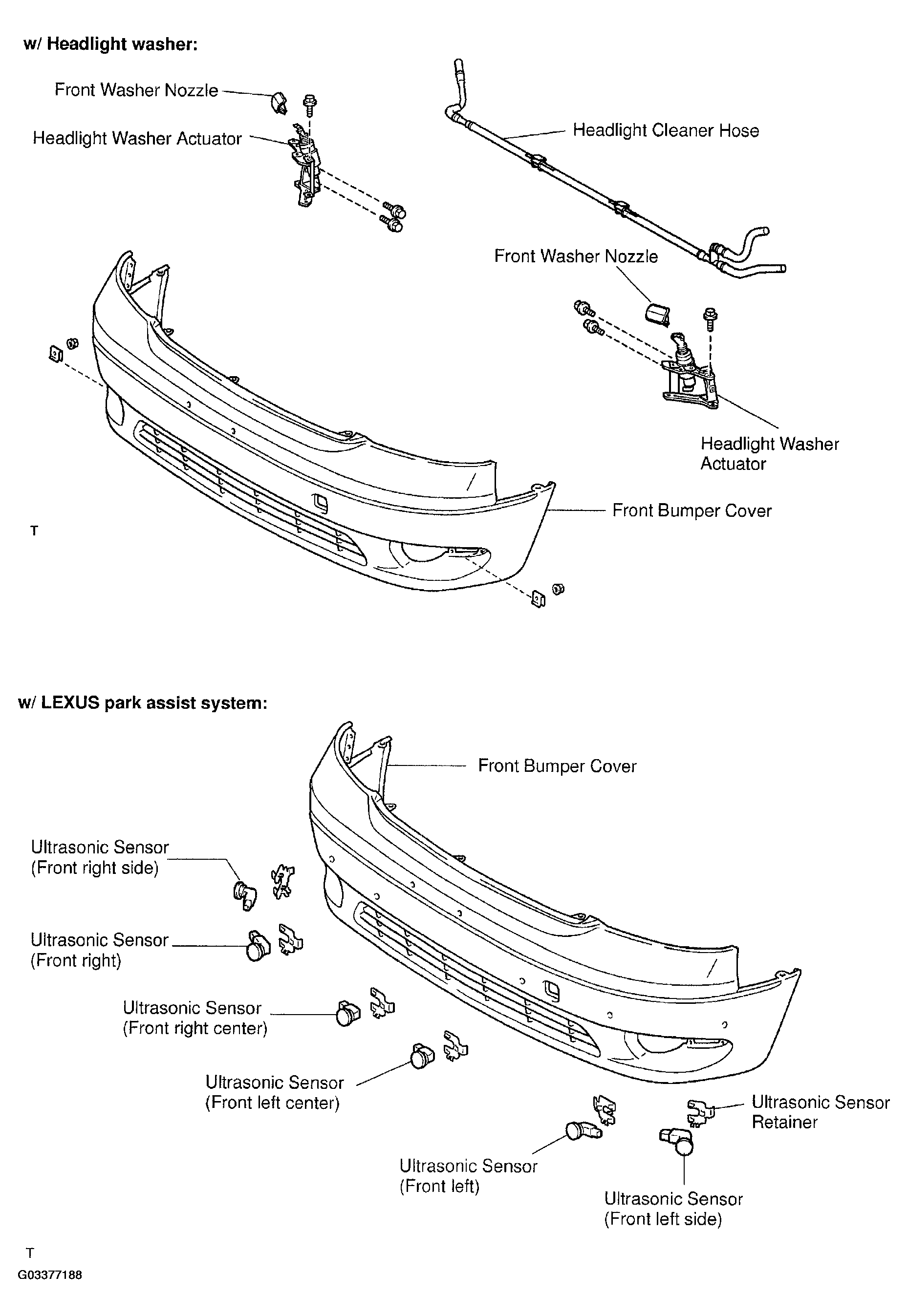

Fig 2: Identifying Front Bumper Components (W/Headlight Washer And W/LEXUS Park Assist System)
G03377188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
