Home >> Lexus >> 2003 >> LS 430 >> Repair and Diagnosis >> Electrical >> Gauges >> Combination Meter >> Components

Combination Meter: Components

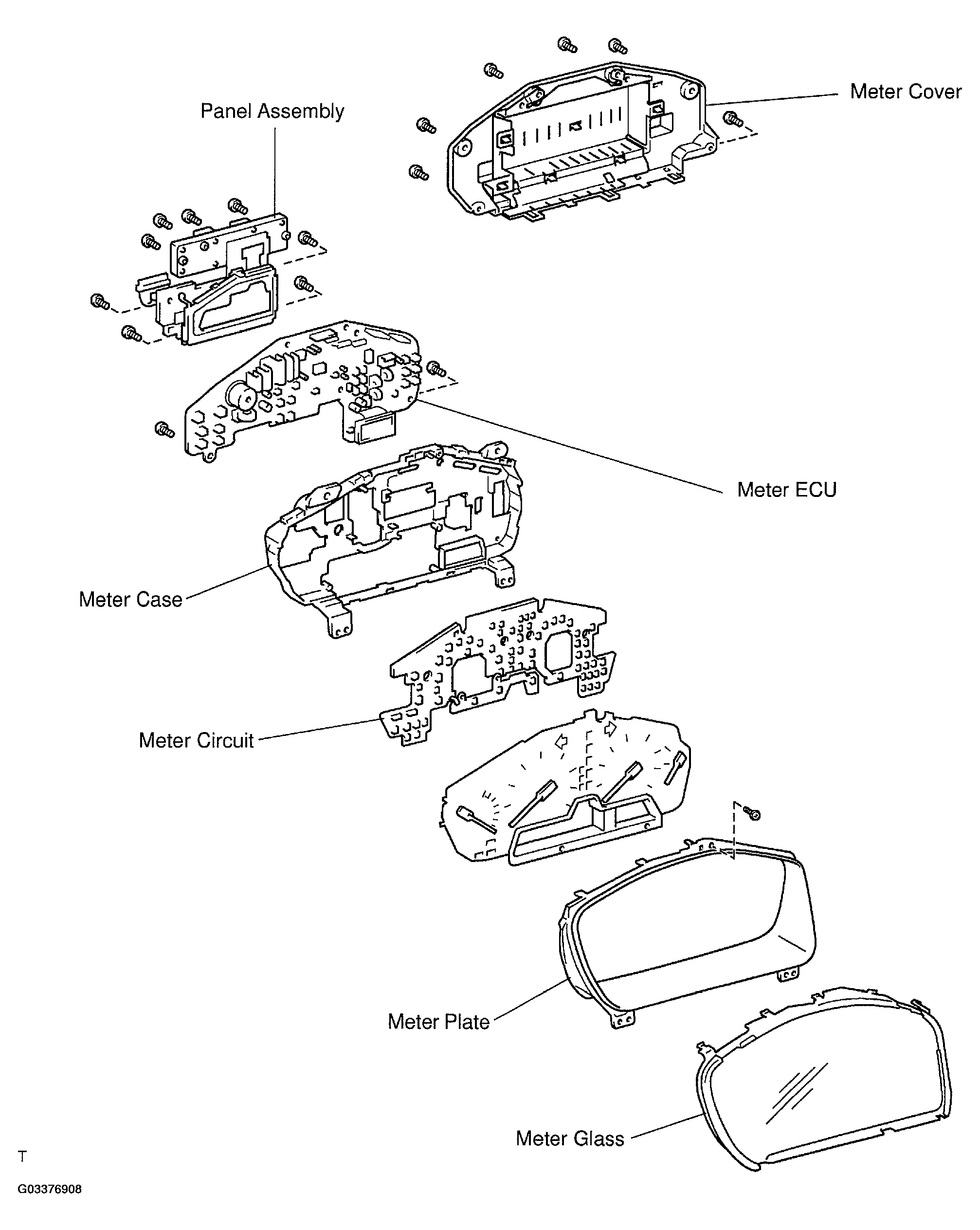

Fig 1: Exploded View Of Combination Meter Components

G03376908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
