Circuit Inspection

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

How to read and use each page is shown below.

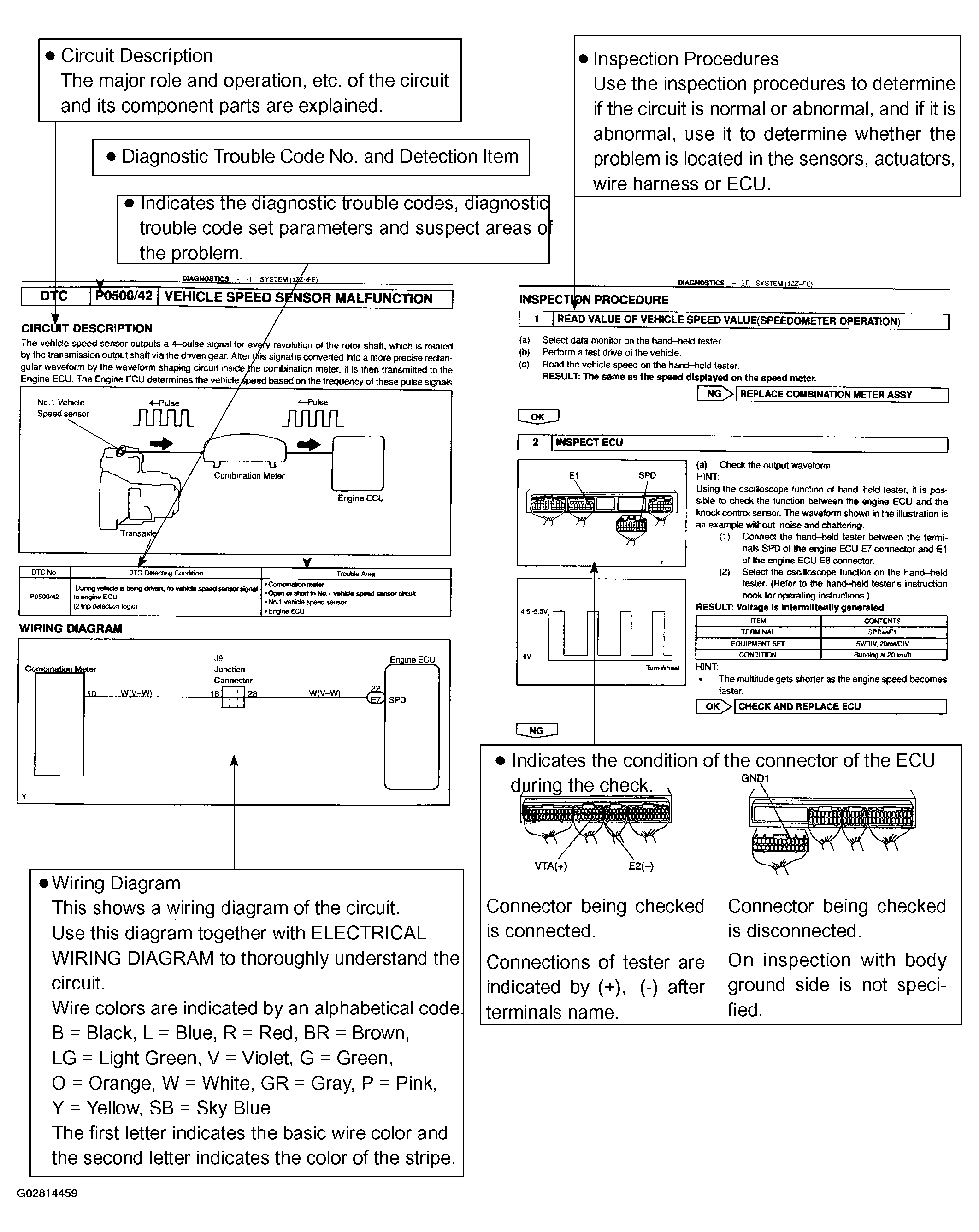

Fig 1: Circuit Inspection Chart
G02814459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
