Steering Column: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

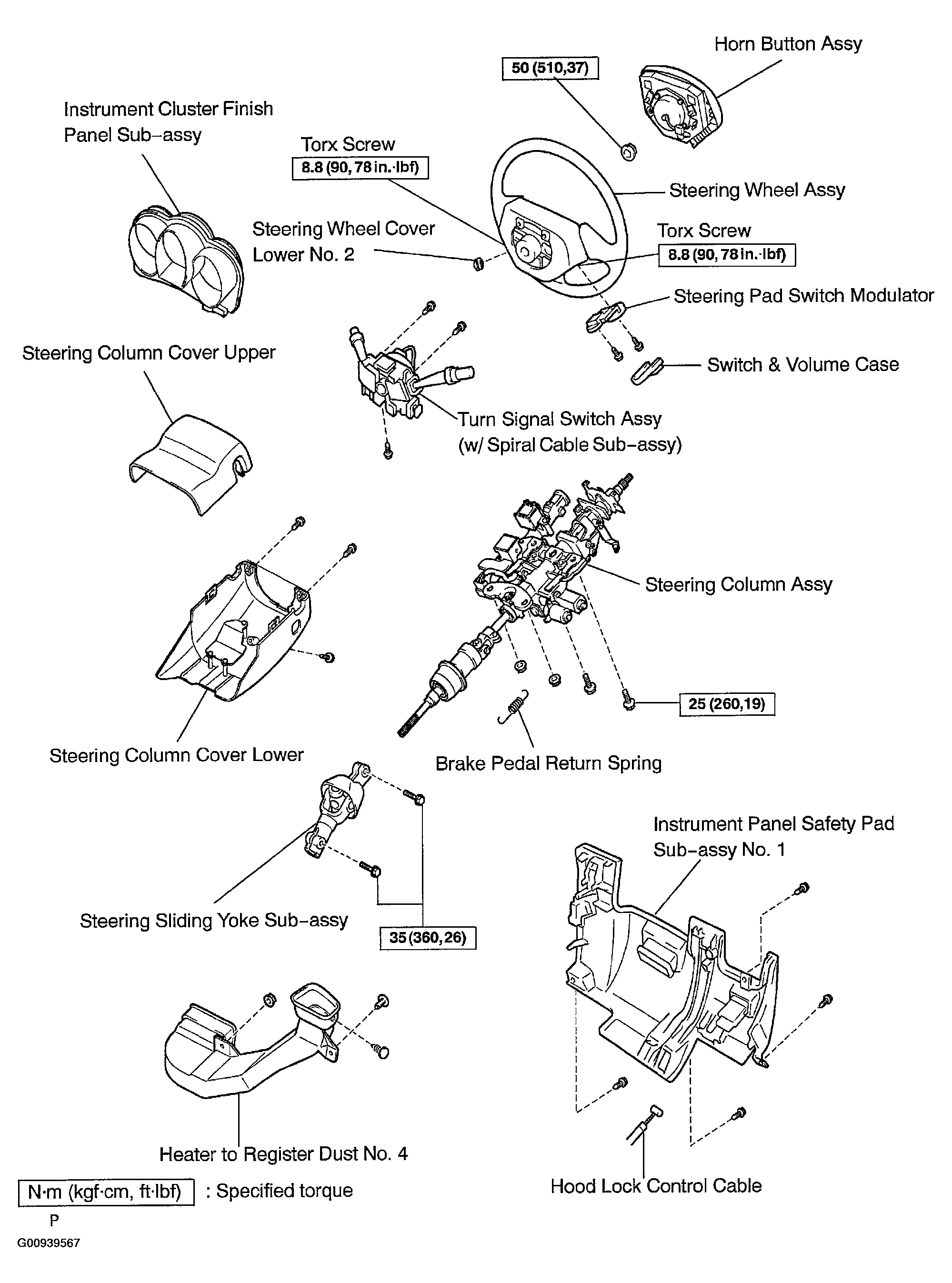

Fig 1: Identifying Components Of Steering Column (1 Of 2)
G00939567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

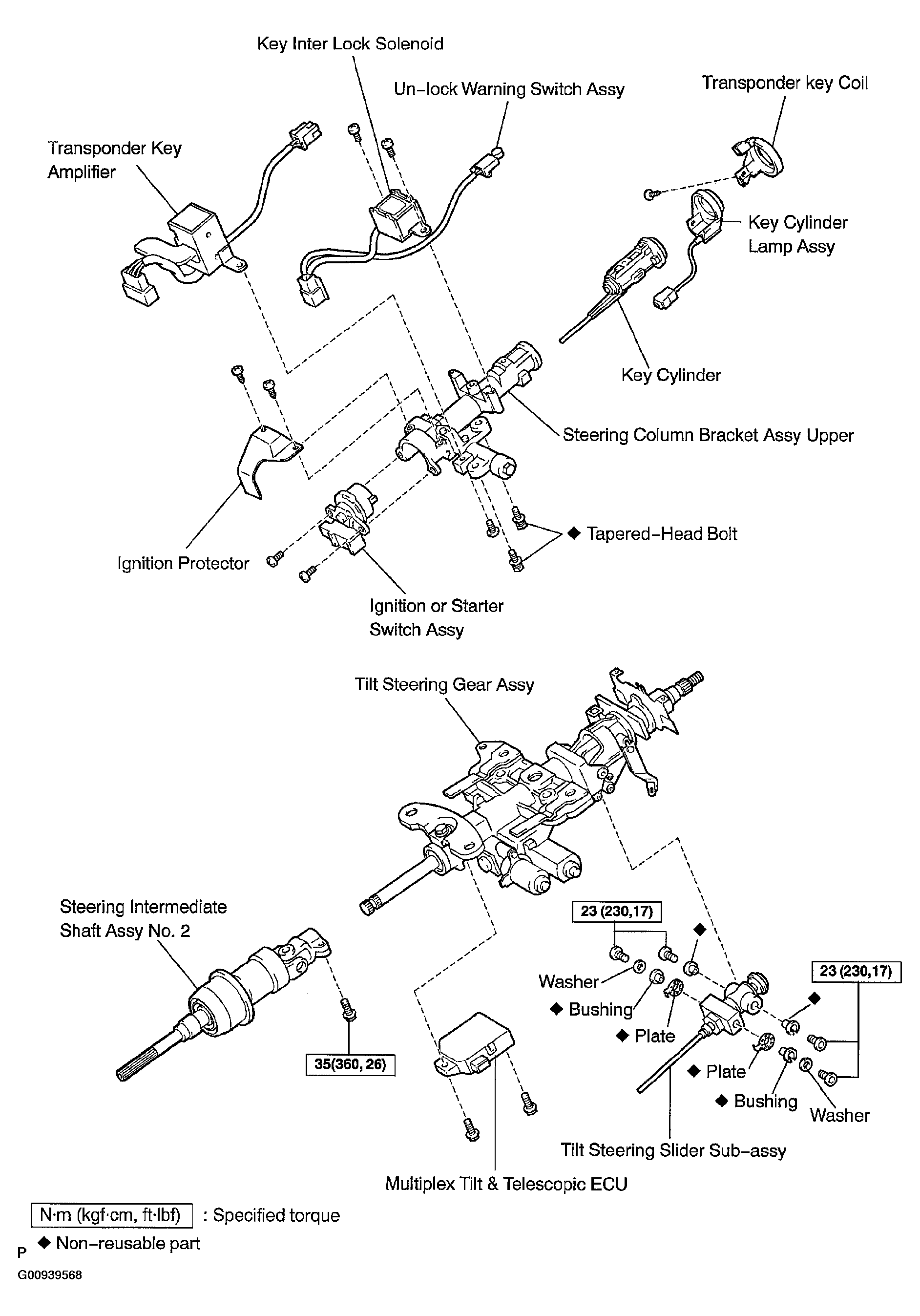

Fig 2: Identifying Components Of Steering Column (2 Of 2)
G00939568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
