Section 935 (Suspension Control System)
>>
Suspension Control System
>>
Components
Suspension Control System: Components
WARNING:
This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

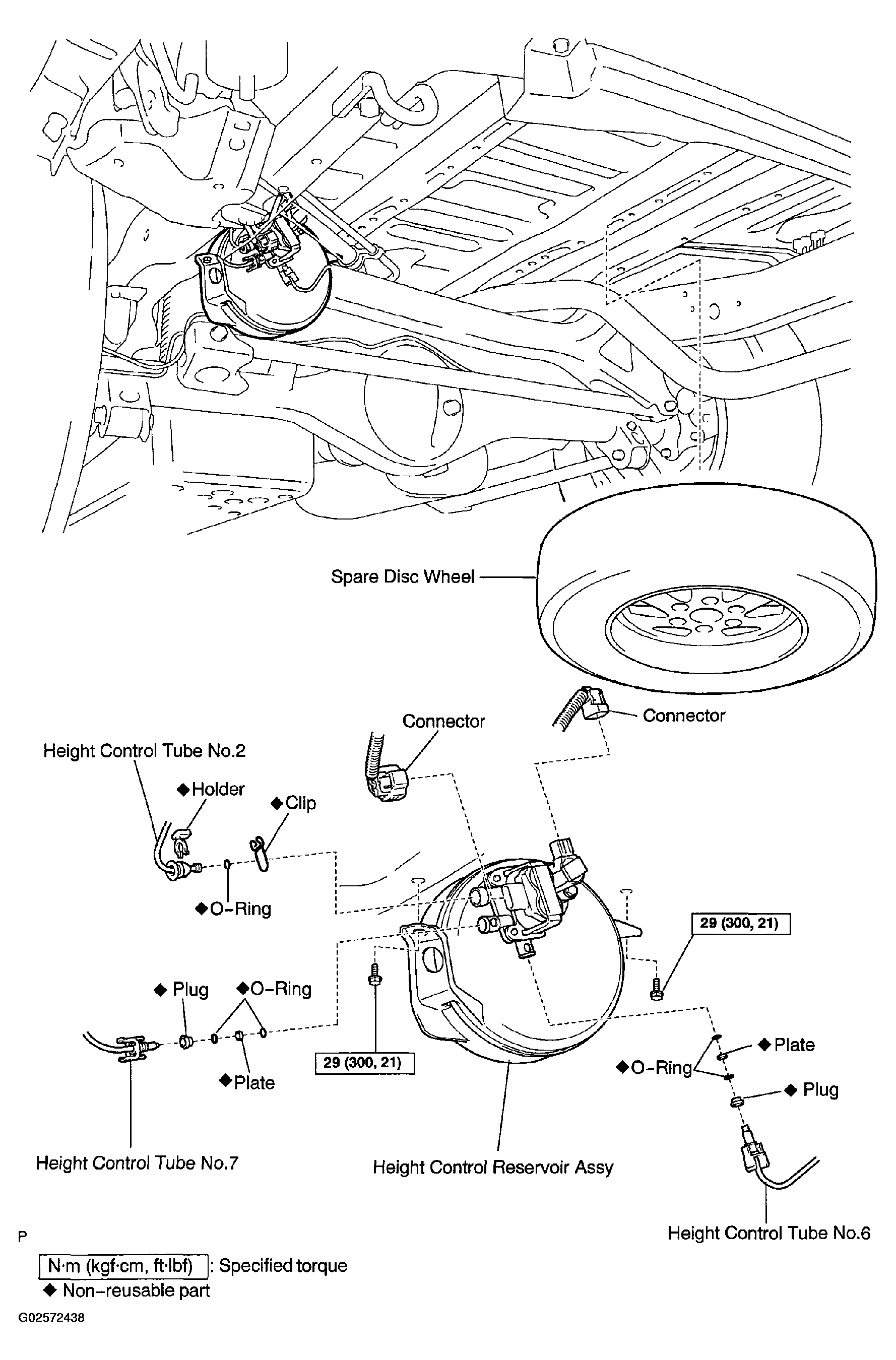

Fig 1: Identifying Suspension Control System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

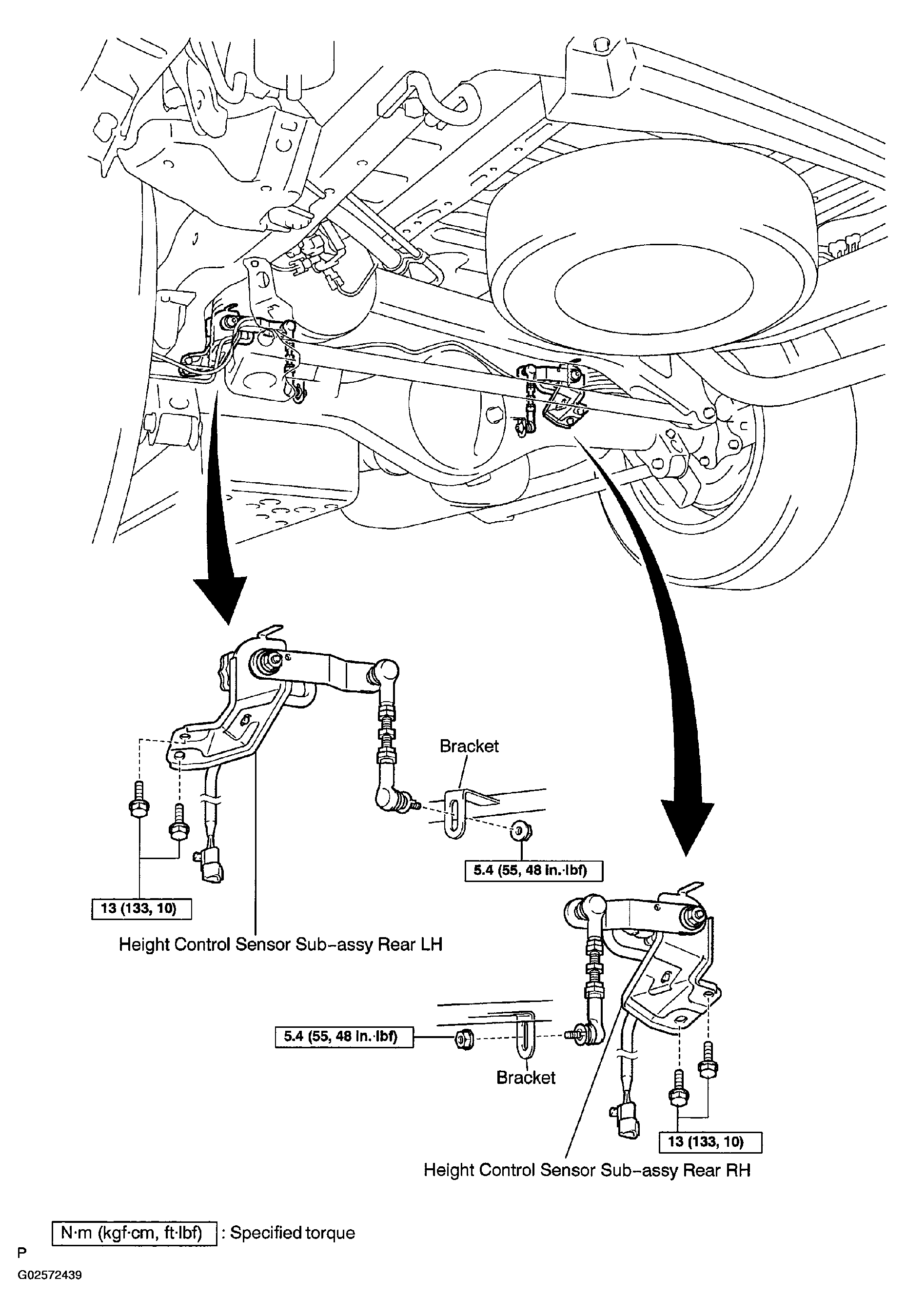

Fig 2: Identifying Suspension Control System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

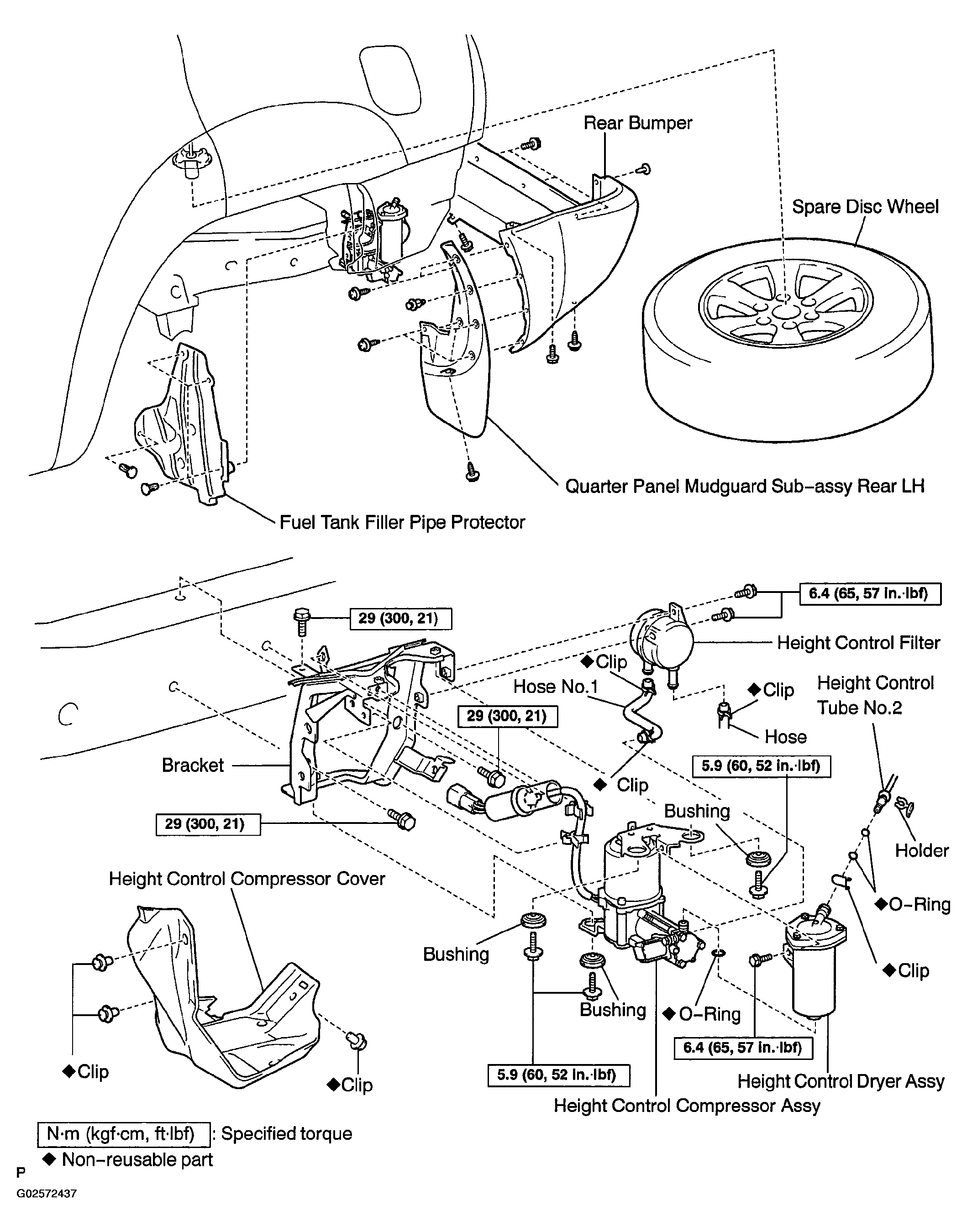

Fig 3: Identifying Suspension Control System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
