Home >> Lexus >> 2003 >> LS 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

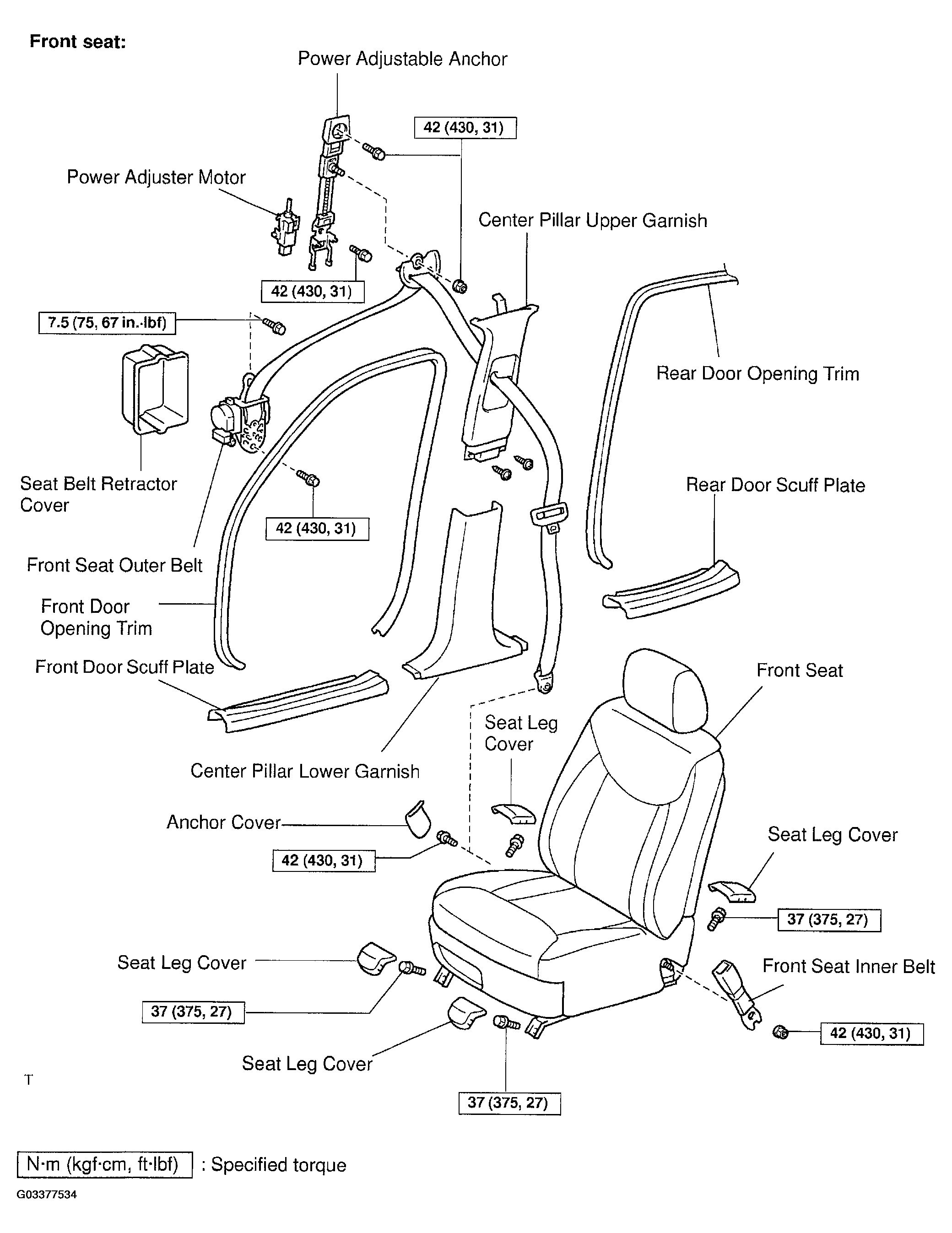

Fig 1: Identifying Seat Belt Components (Front)
G03377534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

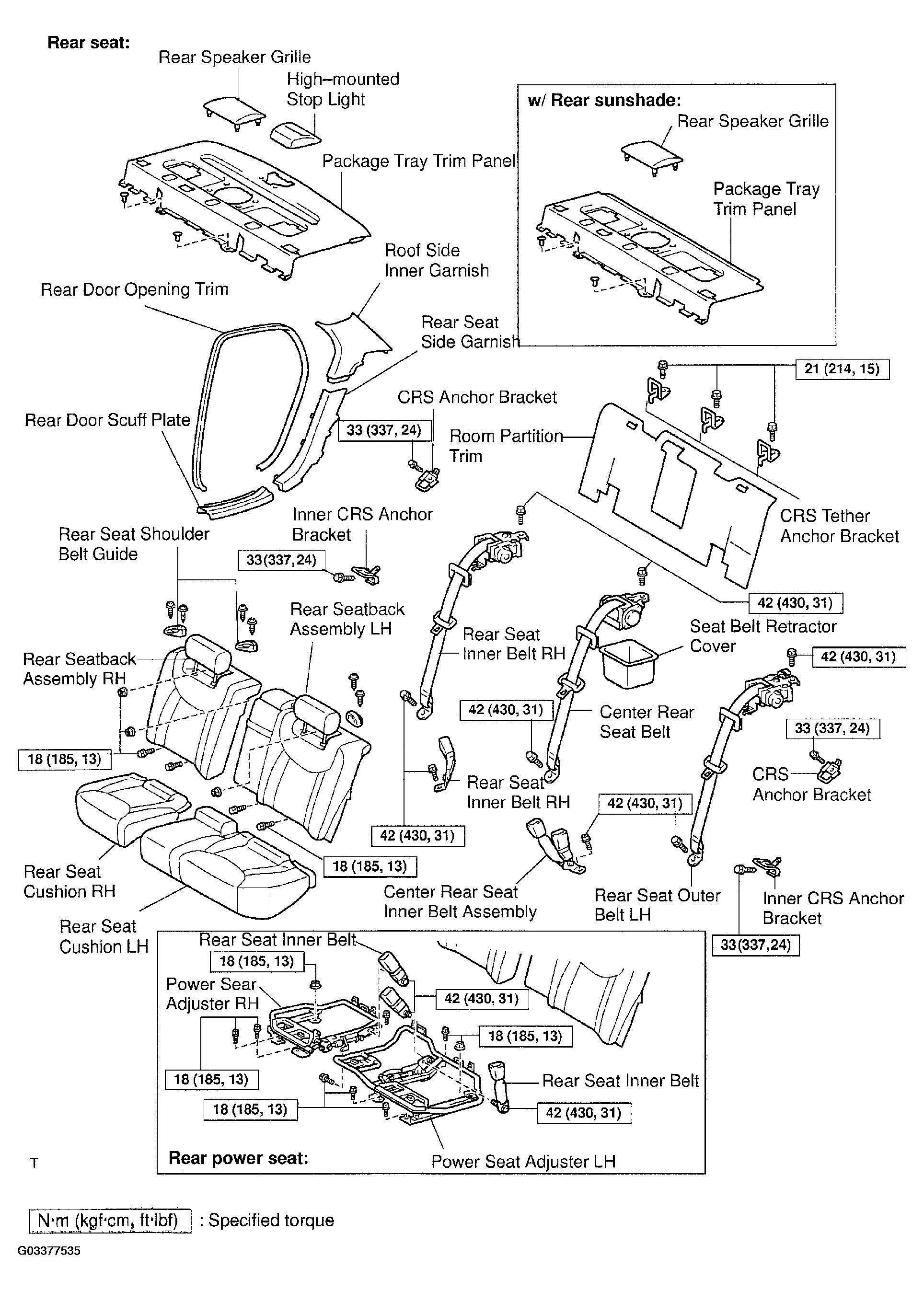

Fig 2: Identifying Seat Belt Components (Rear)
G03377535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
