Floor Shift Assembly: Components

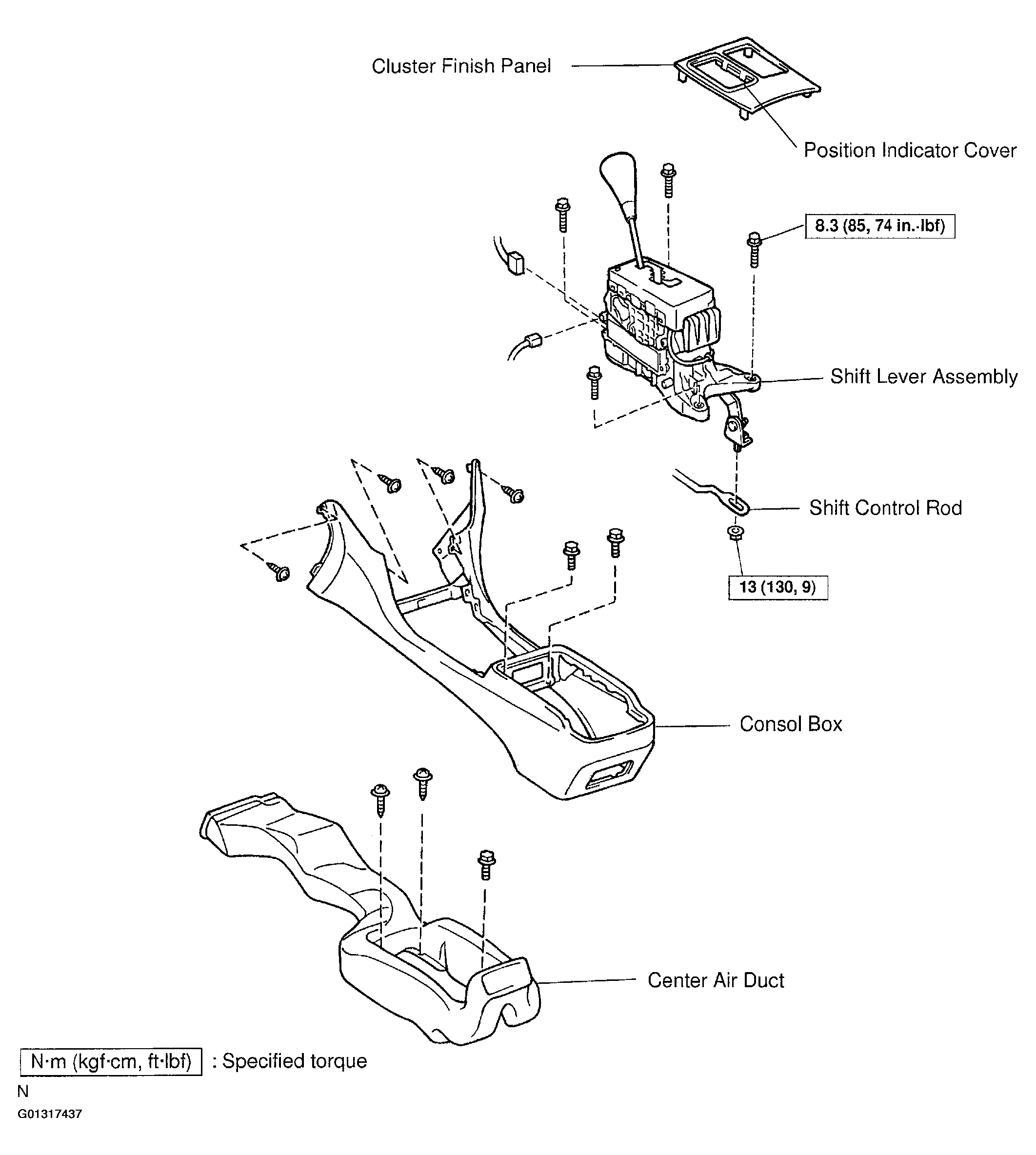

Fig 1: Identifying Floor Shift Assembly Components (1 Of 3)
G01317437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

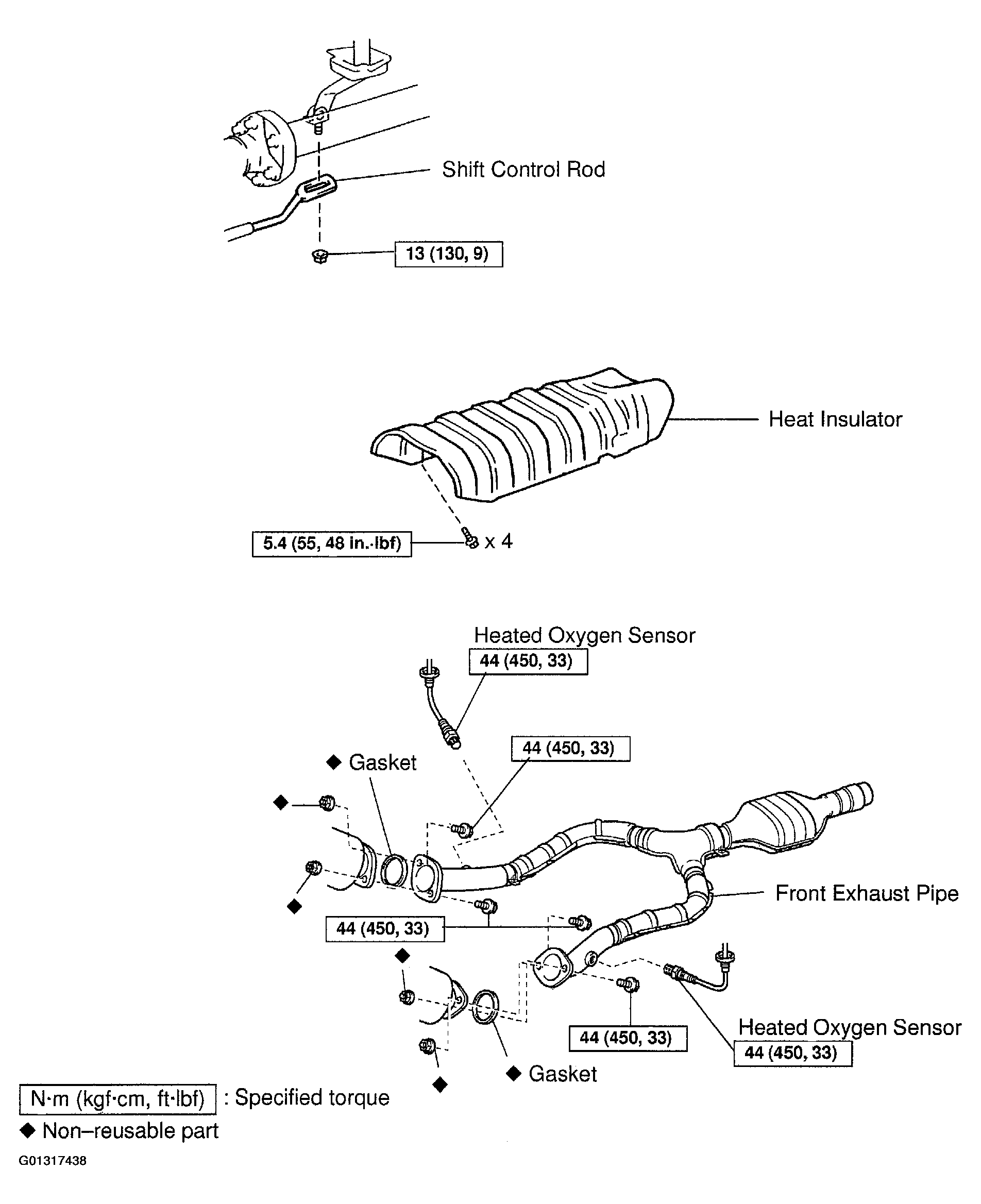

Fig 2: Identifying Floor Shift Assembly Components (2 Of 3)
G01317438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

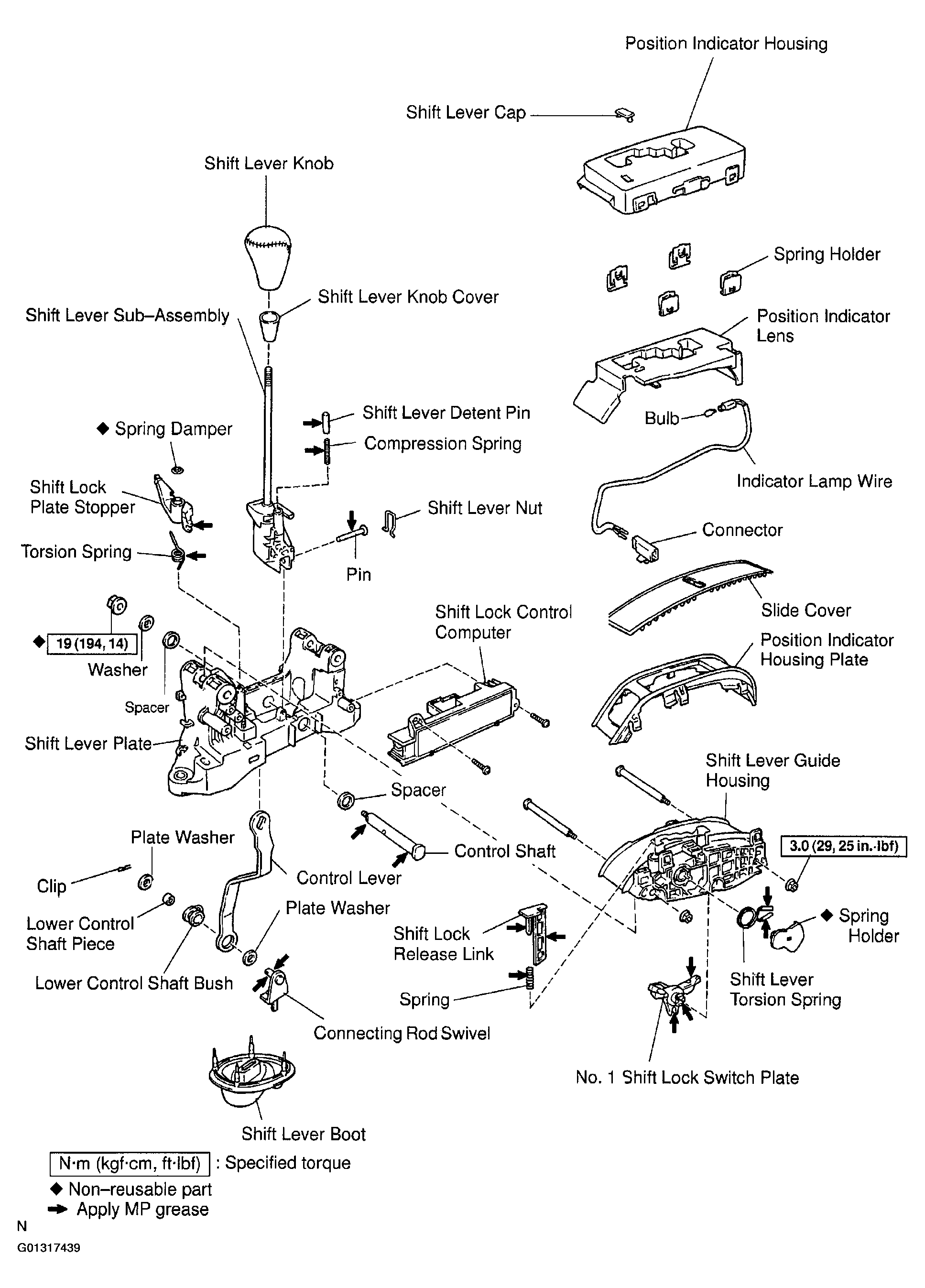

Fig 3: Identifying Floor Shift Assembly Components (3 Of 3)
G01317439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
