Home >> Lexus >> 2003 >> LX 470 >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Control Valve Assembly >> Control Valve Assembly >> Components

Control Valve Assembly: Components

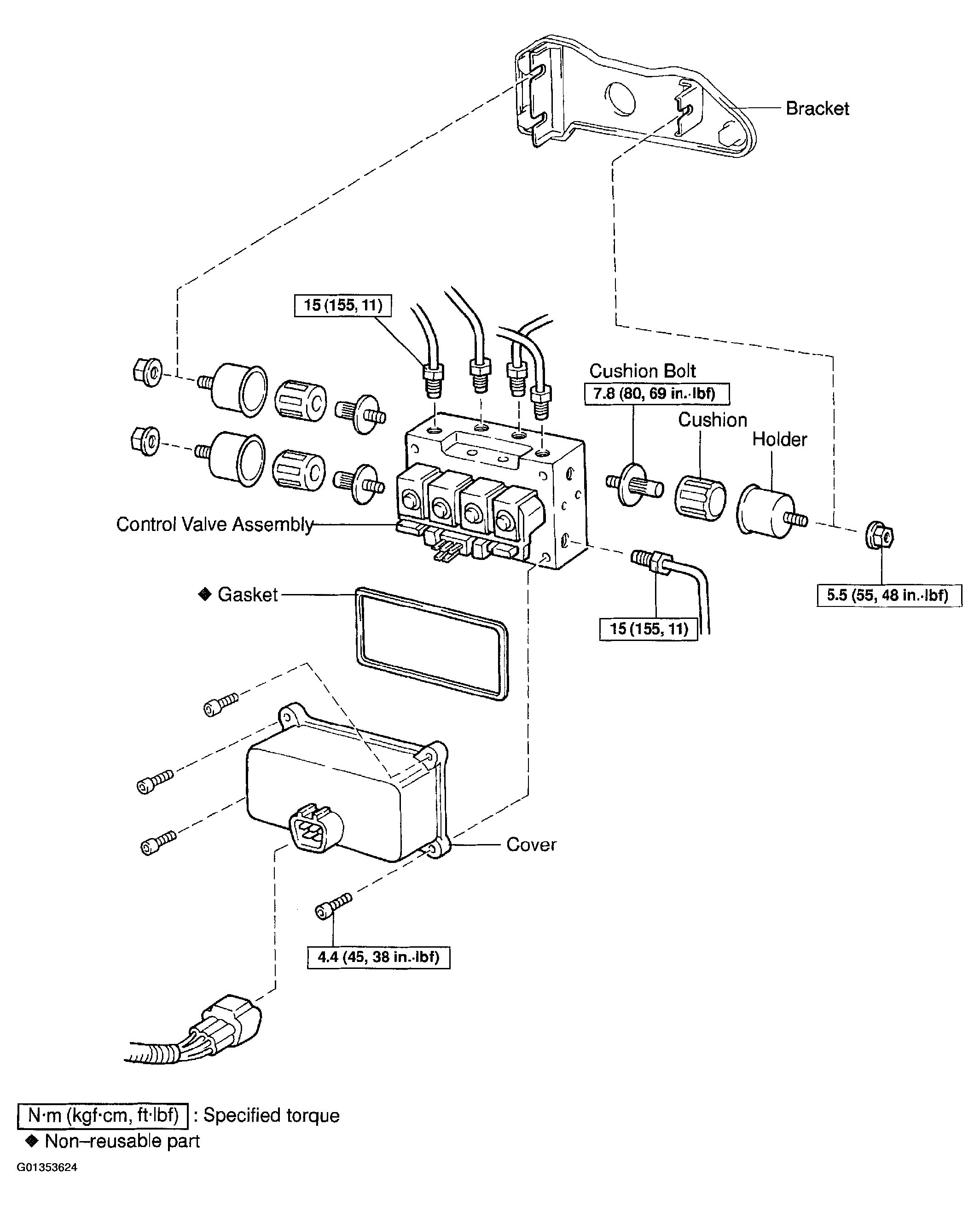

Fig 1: Exploded View Of Control Valve Assembly Components

G01353624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
