Automatic Transmission System: Operation

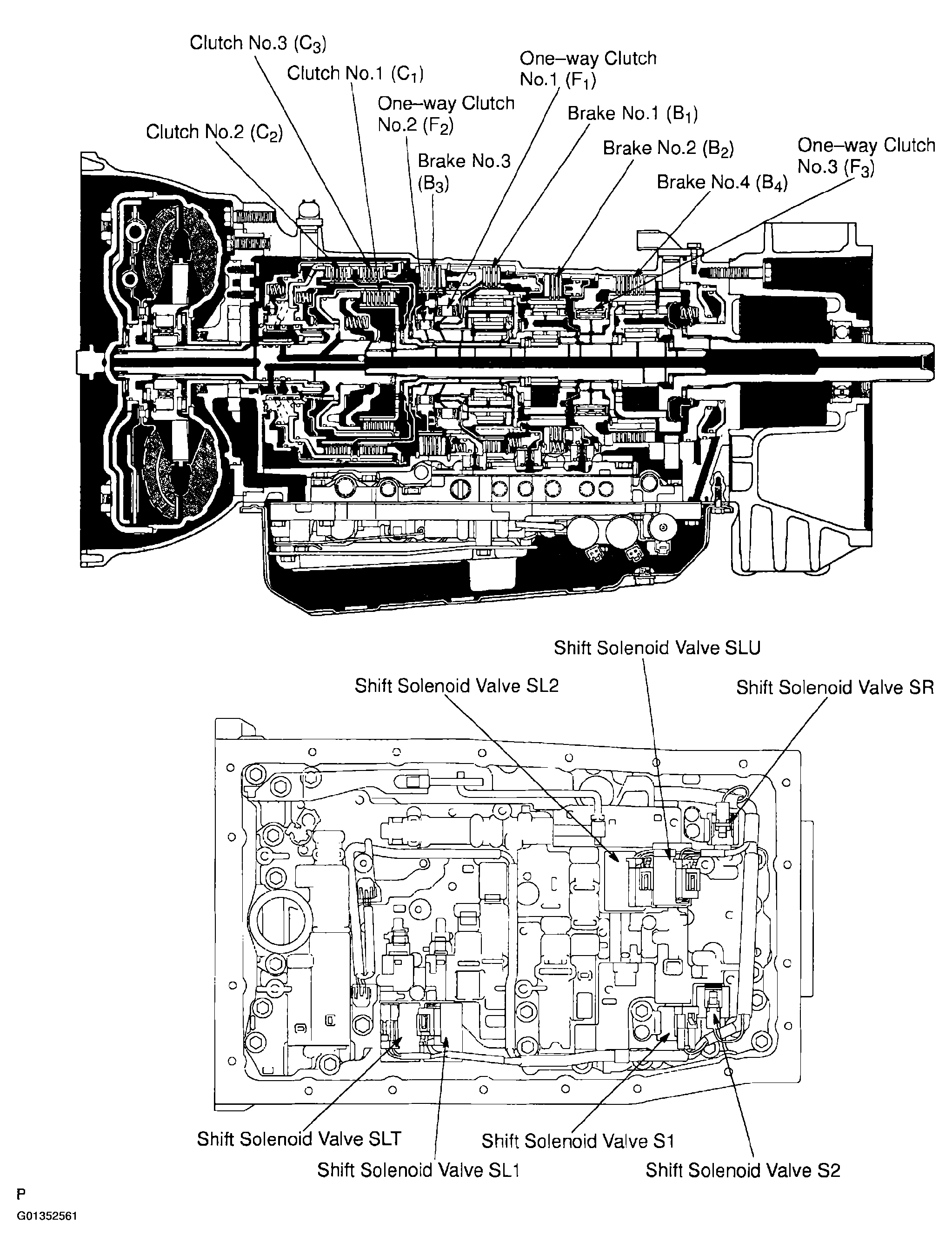

Fig 1: Identifying Automatic Transmission System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

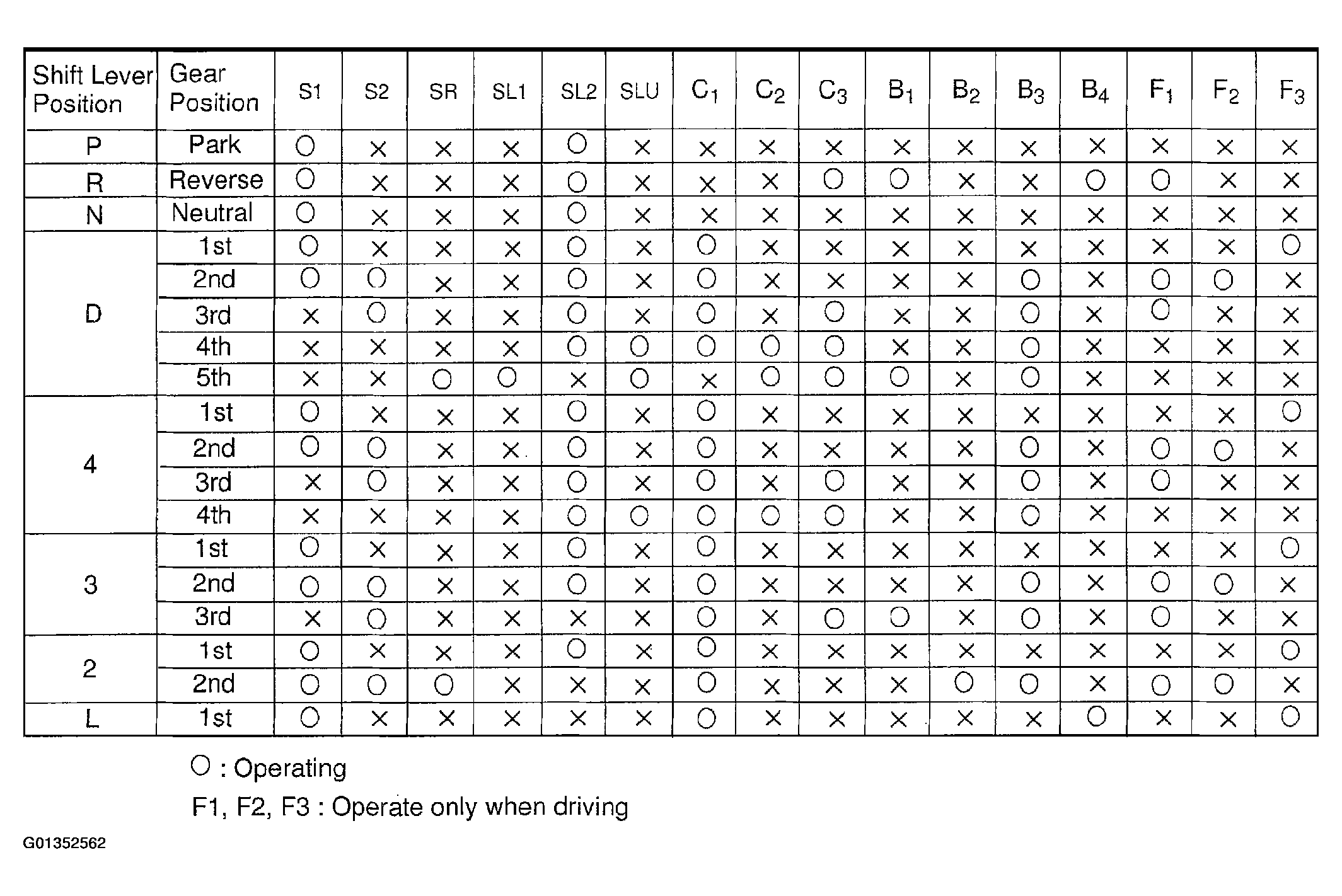

Fig 2: Automatic Transmission System Operation Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
