Home >> Lexus >> 2003 >> LX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock System >> Air Cooled Oil Cooler >> Components

Air Cooled Oil Cooler: Components

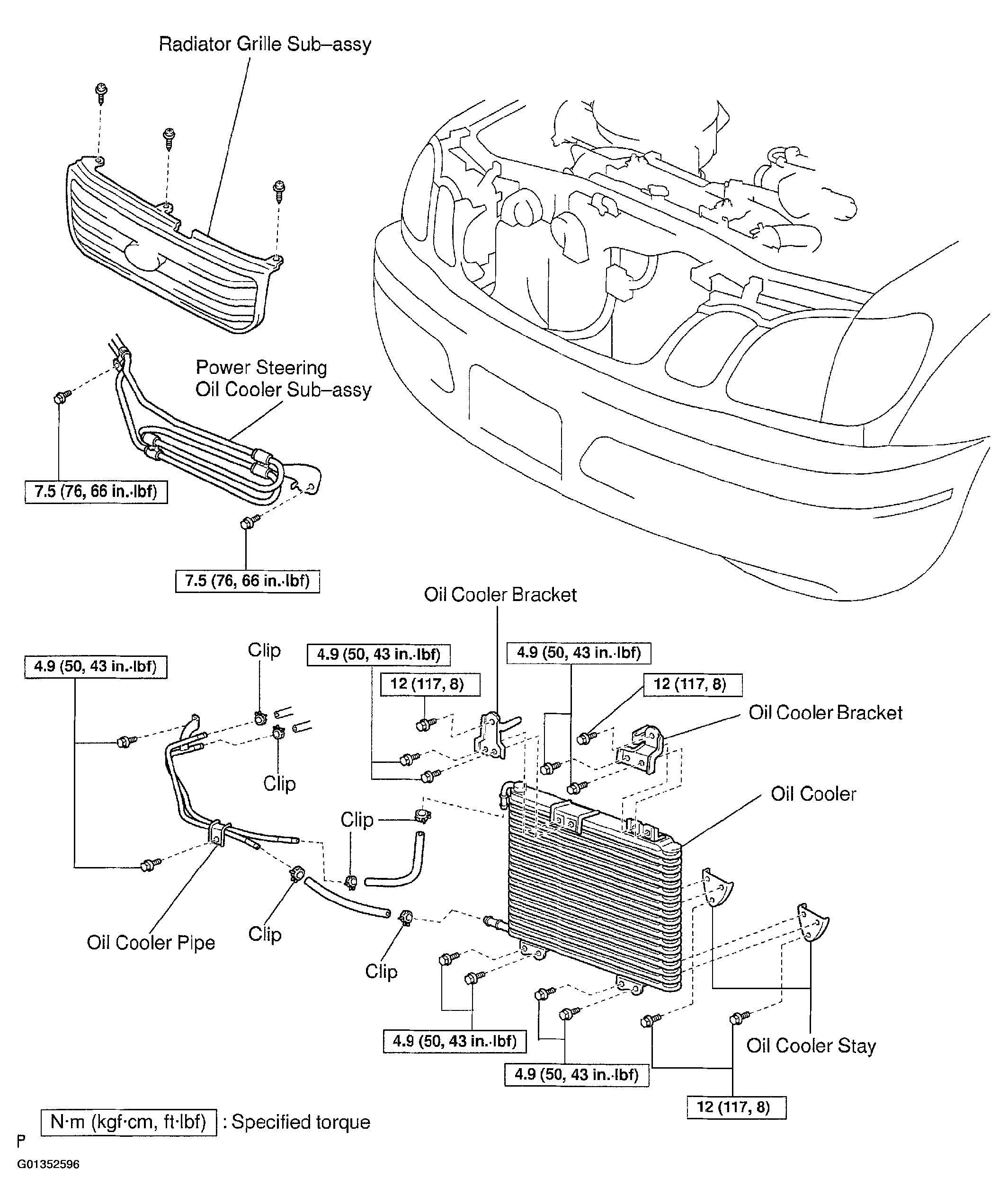

Fig 1: Identifying Air Cooled Oil Cooler Components

G01352596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
