Transfer Shift Lever Assembly: Components

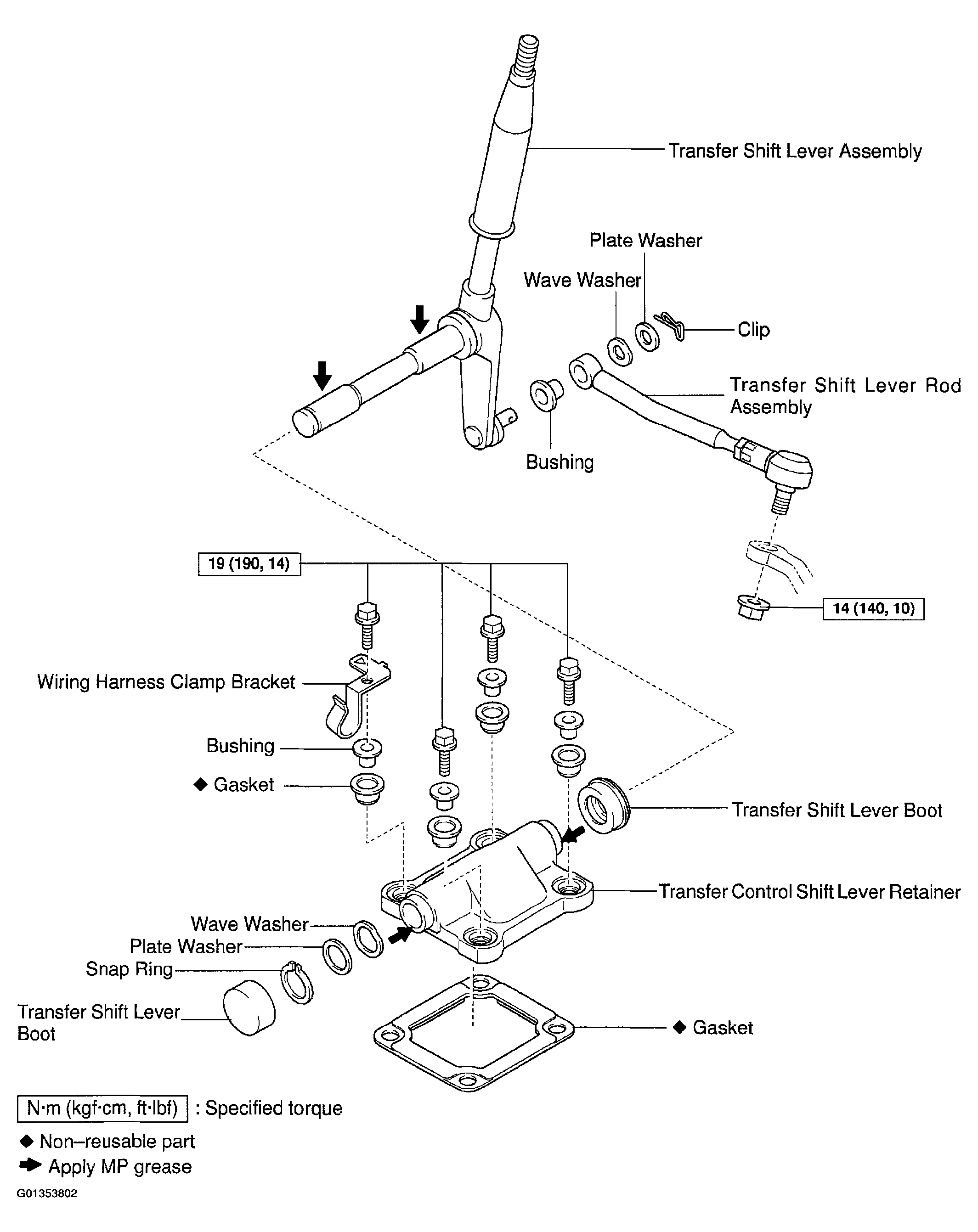

Fig 1: Identifying Transfer Shift Lever Assembly Components

G01353802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
