Home >> Lexus >> 2003 >> RX 300 FWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

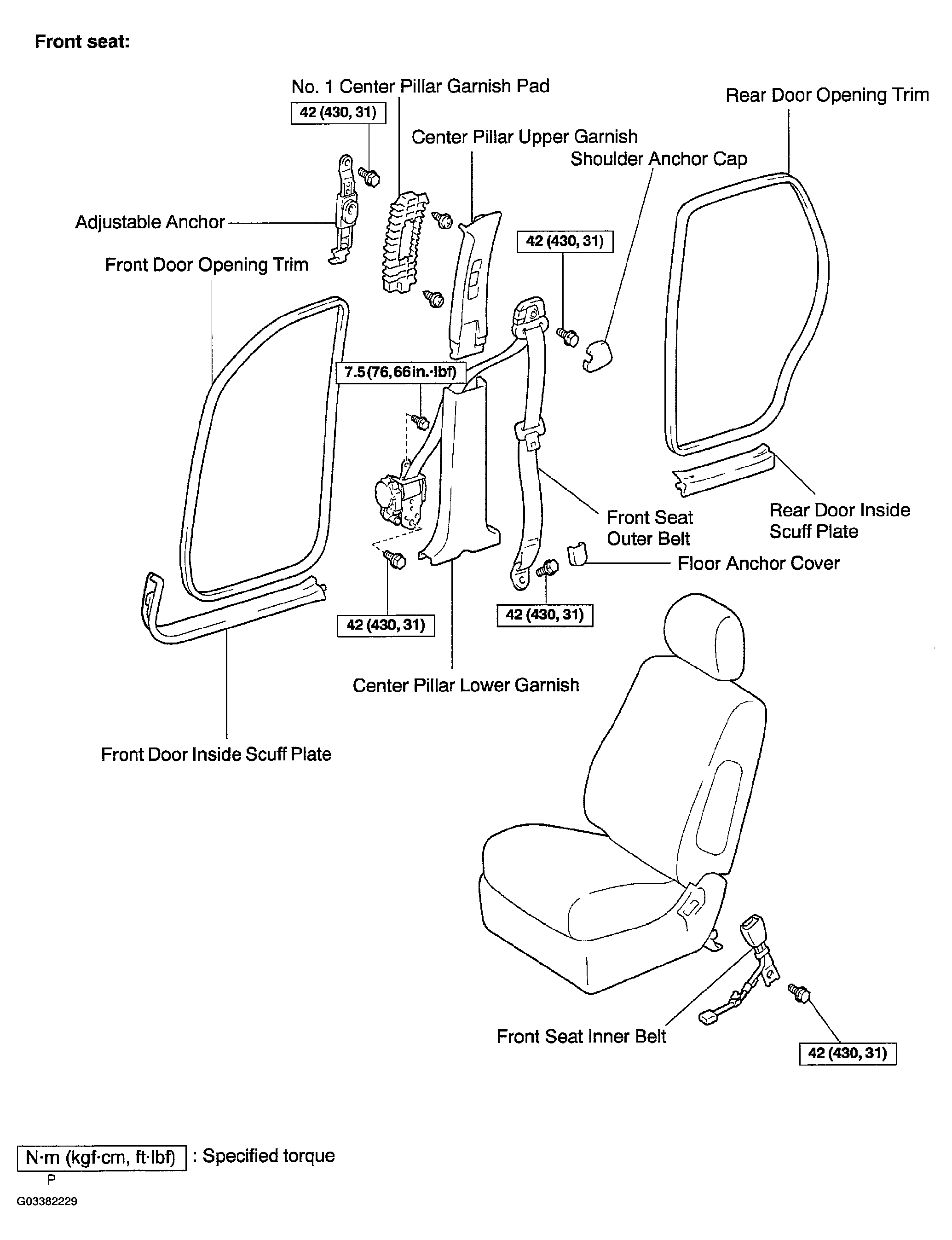

Fig 1: Identifying Seat Belt Components (1 Of 2)
G03382229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

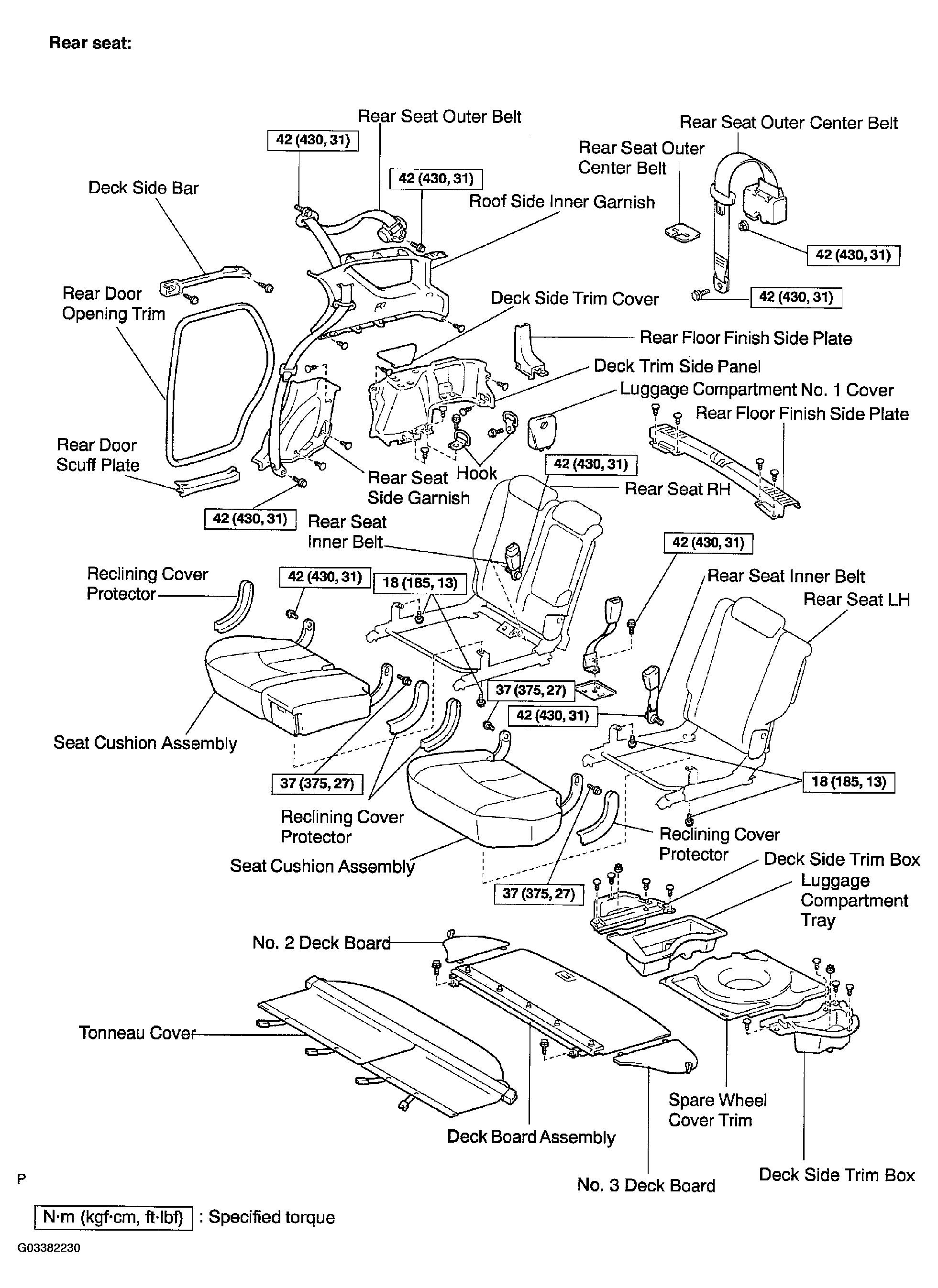

Fig 2: Identifying Seat Belt Components (2 Of 2)
G03382230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
