Ignition Switch: Inspection

INSPECT IGNITION OR STARTER SWITCH ASSY

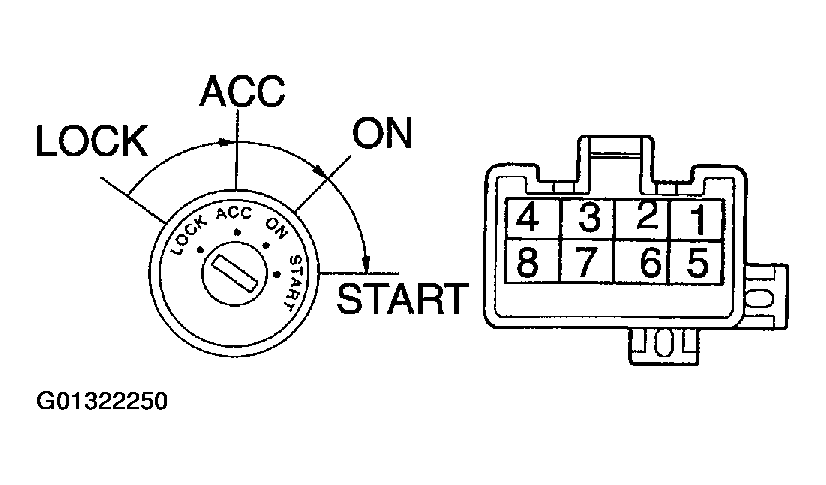

Fig 1: Inspecting Ignition Or Starter Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

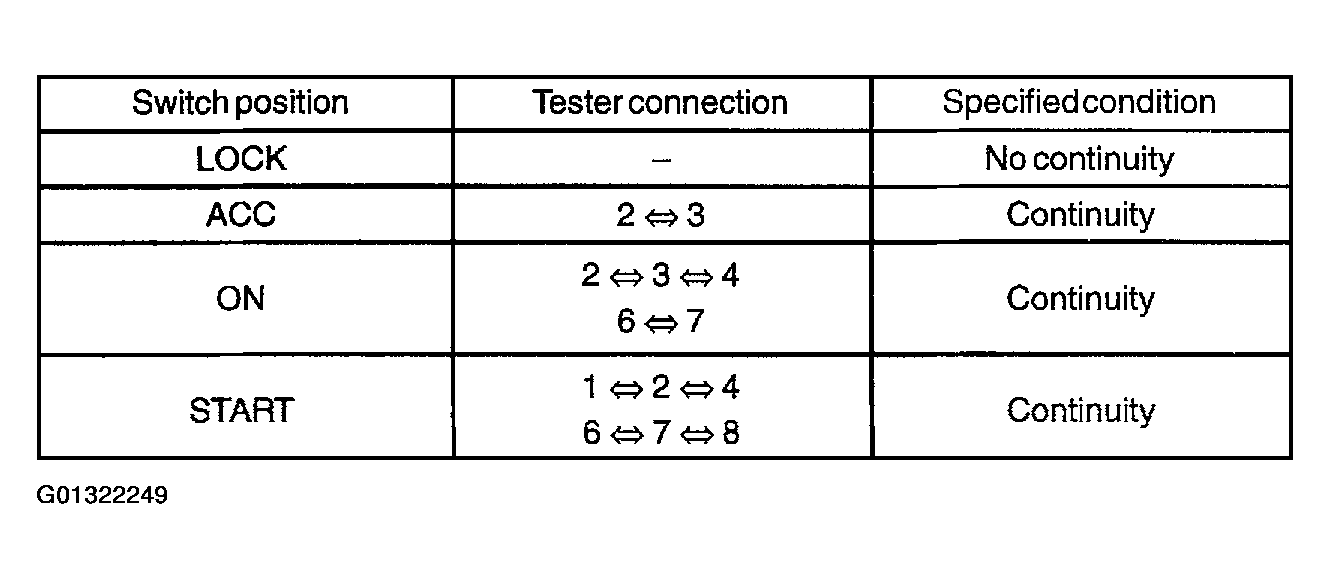

Fig 2: Ignition Or Starter Switch Assembly Inspection Chart & Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
