Home >> Lexus >> 2003 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Power Windows >> Quarter Window ASSY RH >> Components

Quarter Window ASSY RH: Components

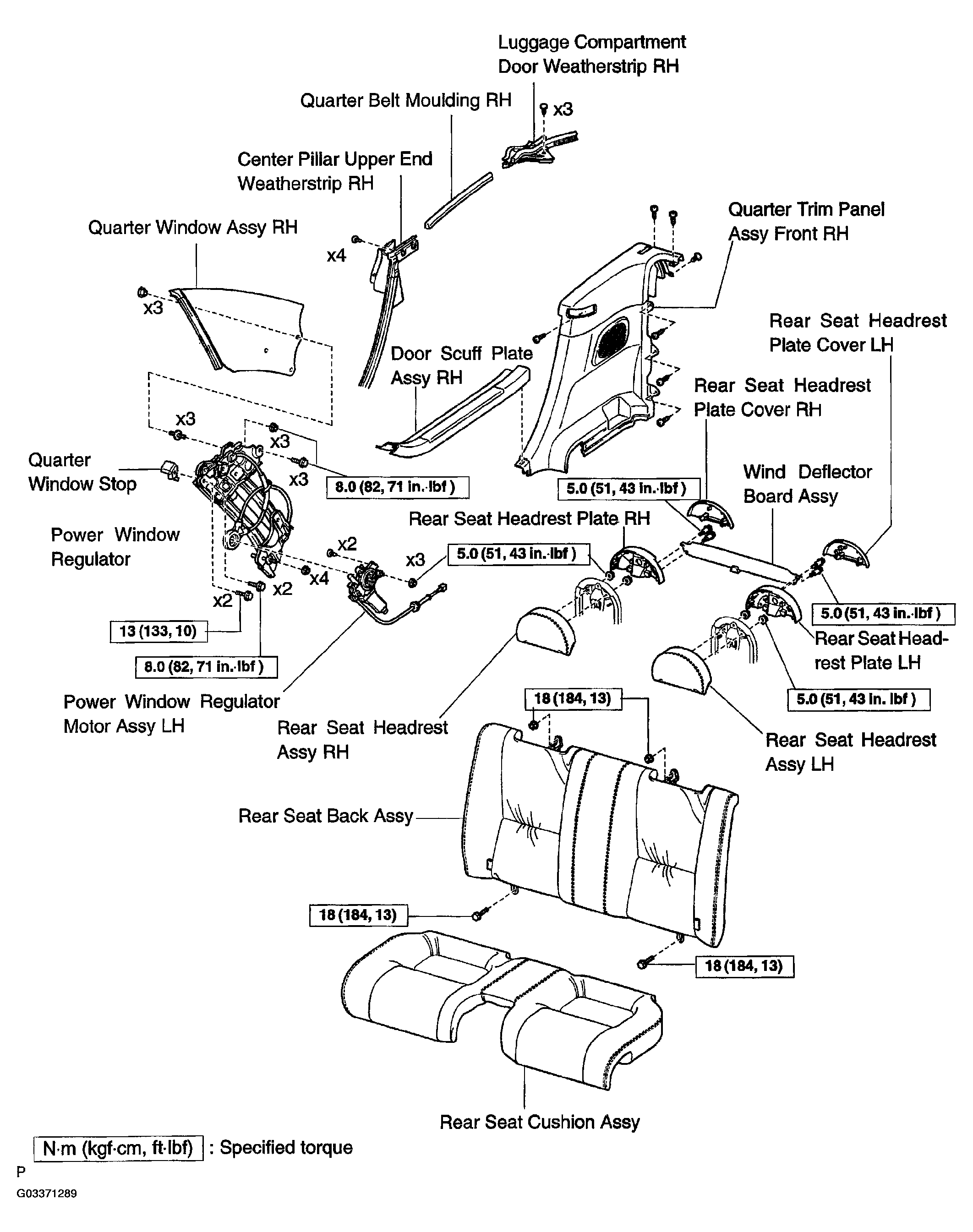

Fig 1: Identifying Quarter Window Assy RH Components
G03371289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
