Exhaust Pipe: Components

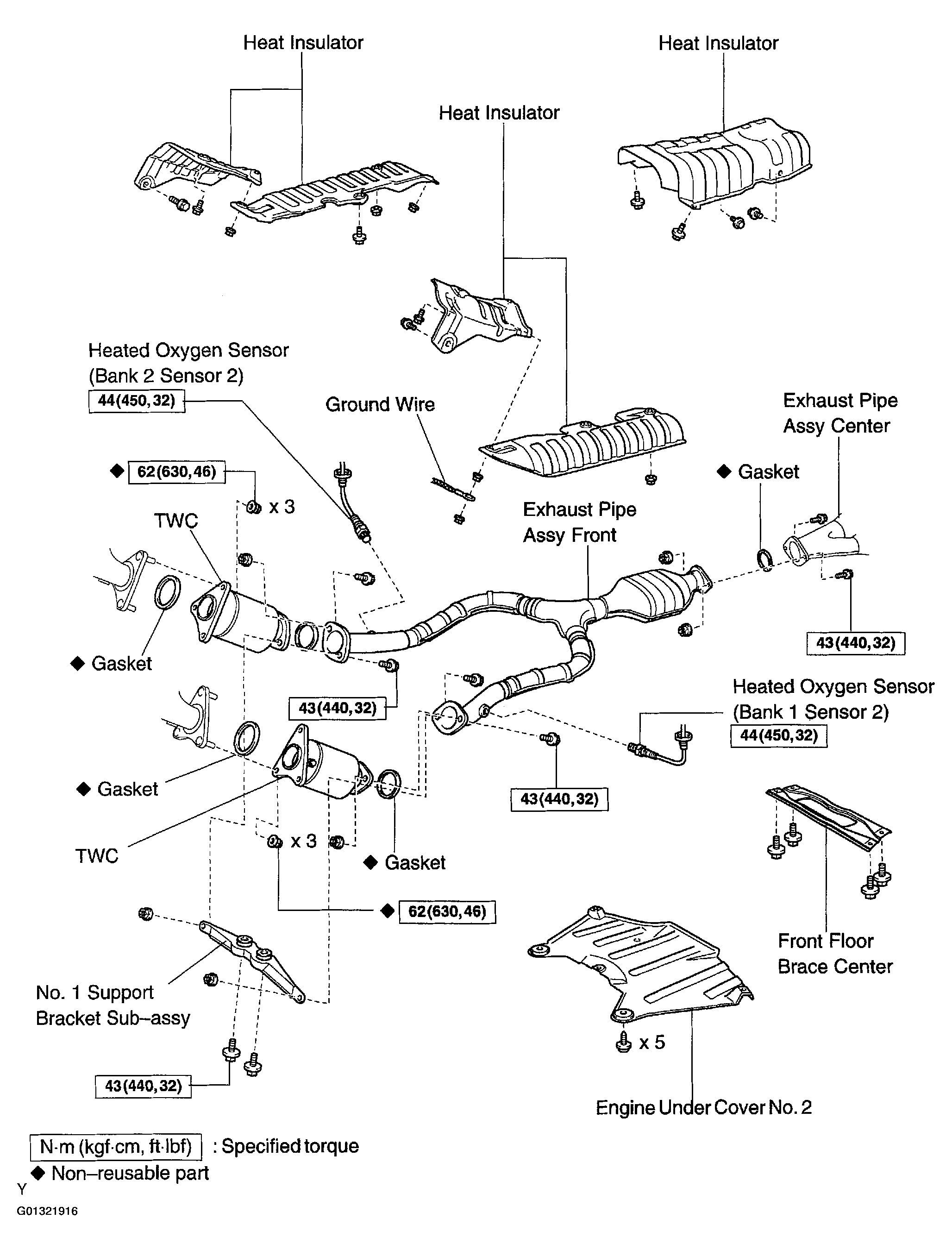

Fig 1: Exploded View Of Exhaust Pipe Components (1 Of 2)
G01321916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

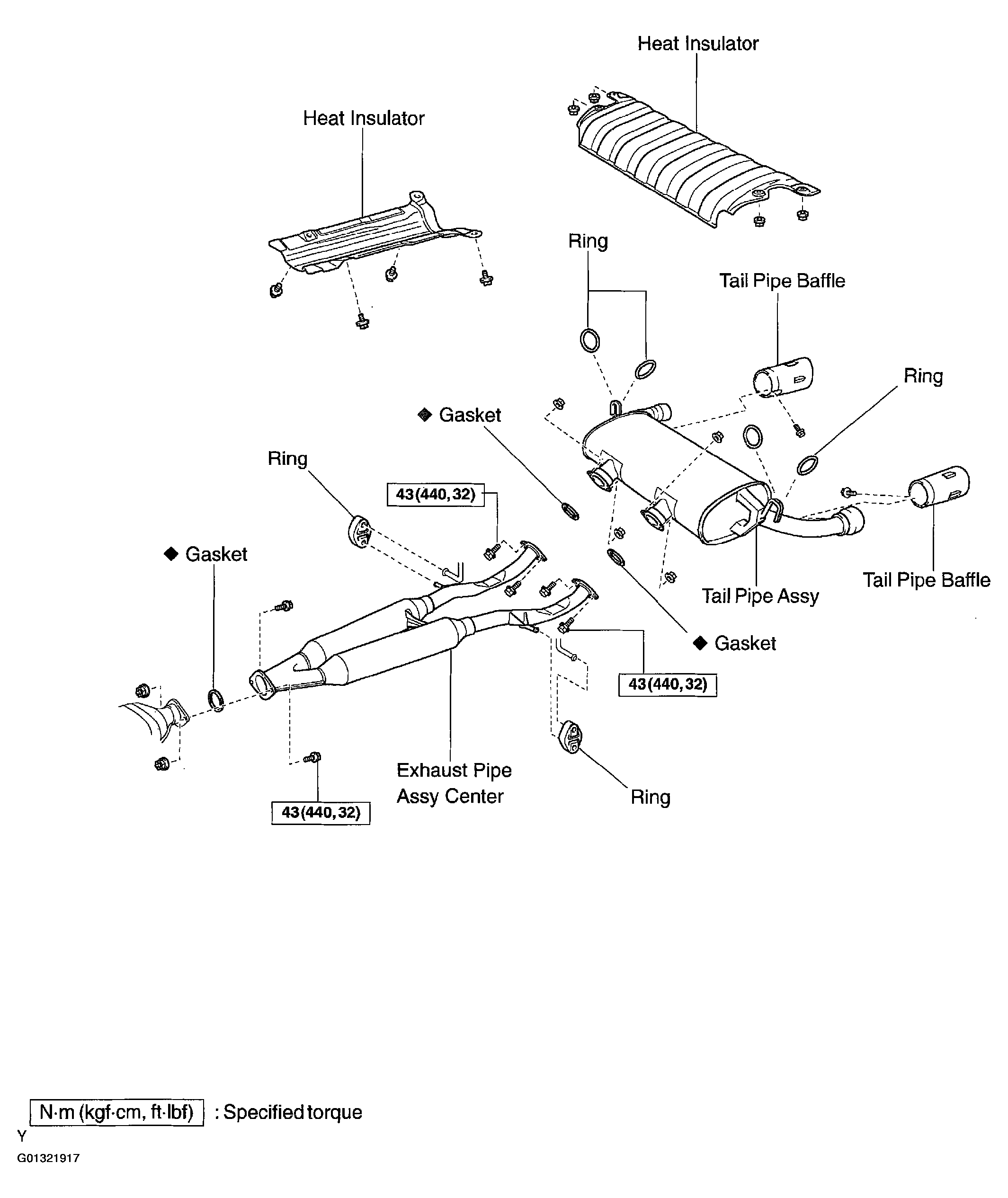

Fig 2: Exploded View Of Exhaust Pipe Components (2 Of 2)
G01321917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
