Partial Engine ASSY: Components

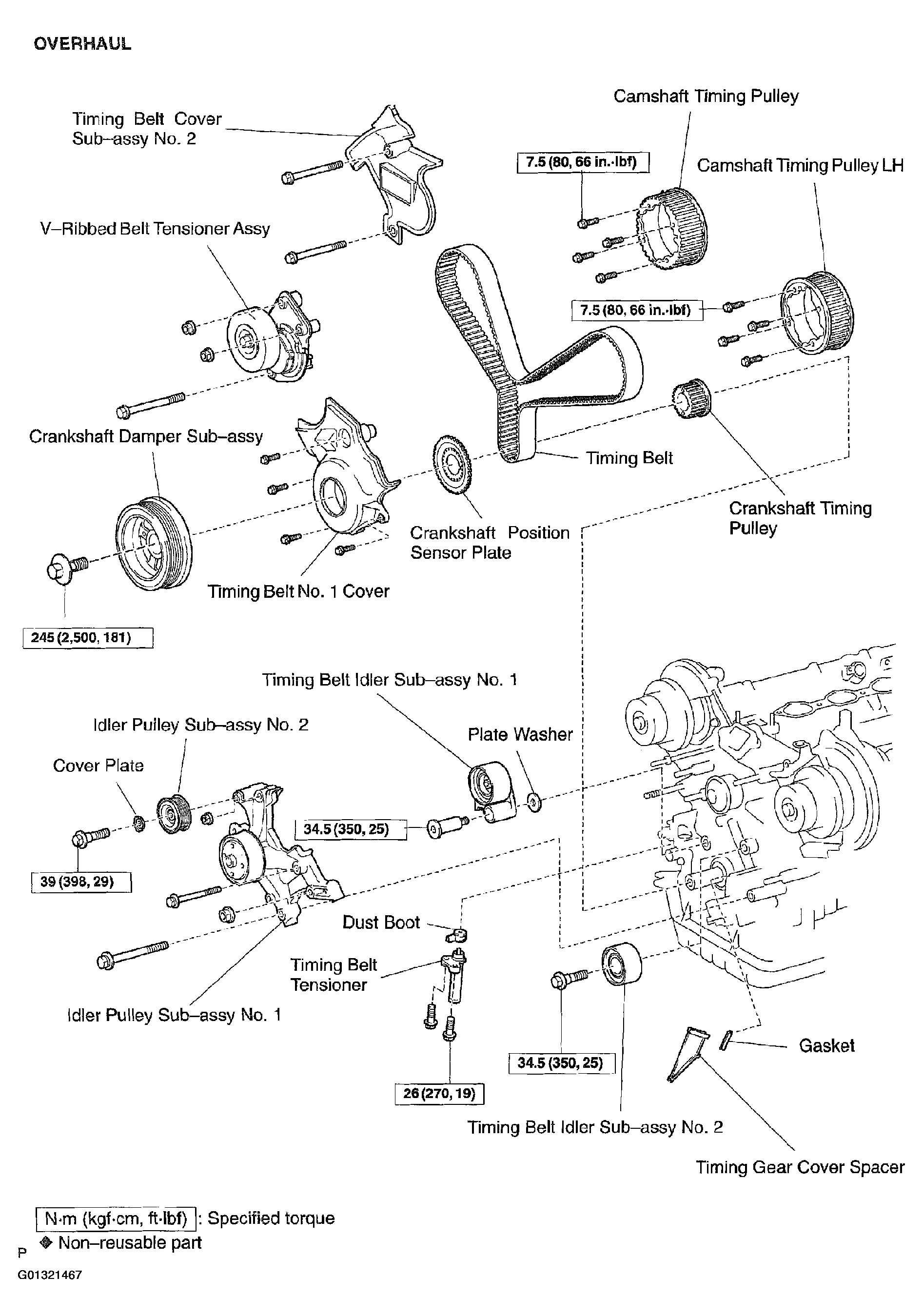

Fig 1: Exploded View Of Partial Engine Assembly Components And Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Partial Engine Assembly Components And Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Partial Engine Assembly Components And Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exploded View Of Partial Engine Assembly Components And Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Exploded View Of Partial Engine Assembly Components And Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Exploded View Of Partial Engine Assembly Components And Torque Specifications (6 Of 9)

Fig 7: Exploded View Of Partial Engine Assembly Components And Torque Specifications (7 Of 9)

Fig 8: Exploded View Of Partial Engine Assembly Components And Torque Specifications (8 Of 9)

Fig 9: Exploded View Of Partial Engine Assembly Components And Torque Specifications (9 Of 9)
