Home >> Lexus >> 2004 >> ES 330 >> Repair and Diagnosis >> Body & Frame >> Windows >> Doors >> Rear Door >> Components

Rear Door: Components

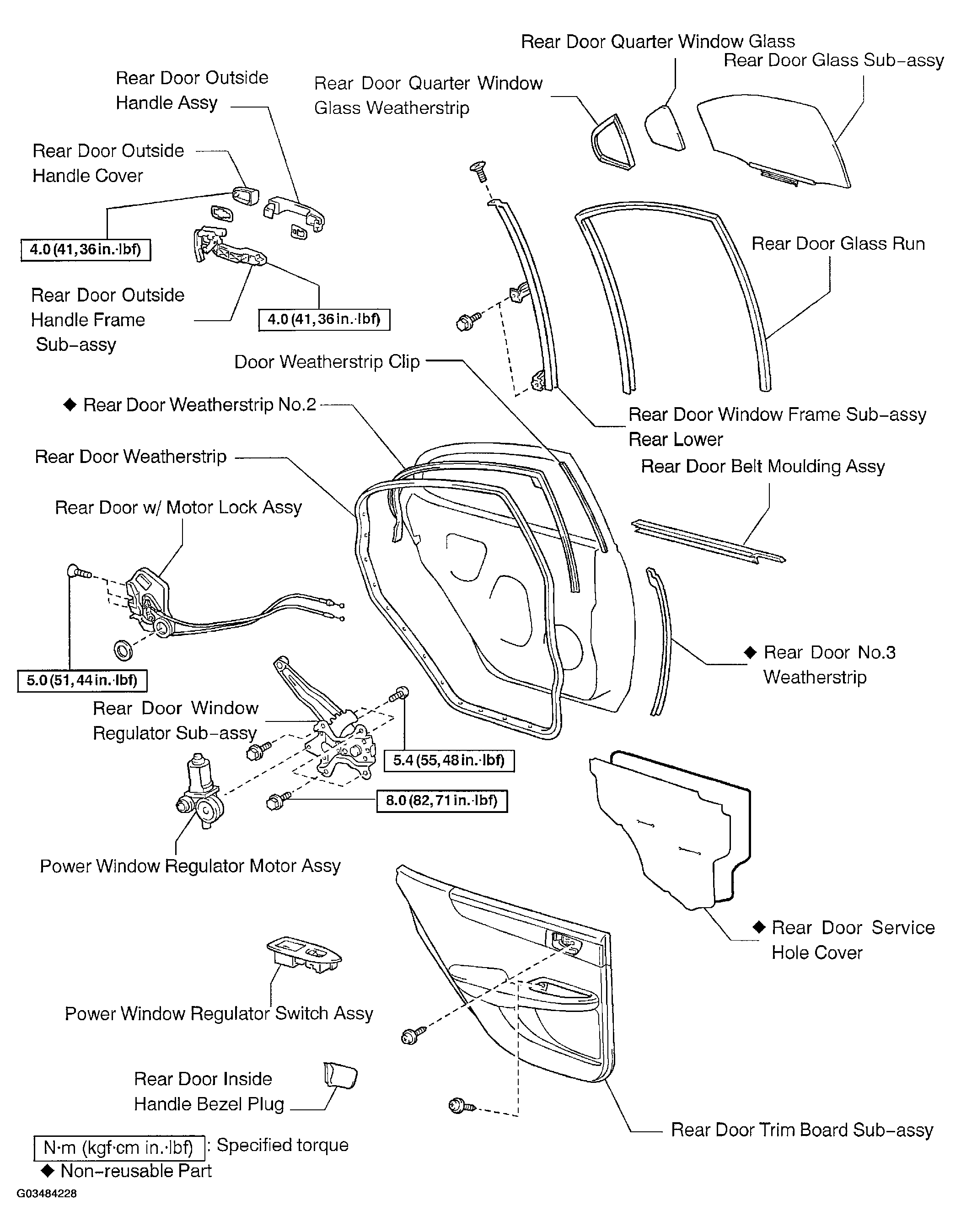

Fig 1: Exploded View Of Rear Door Components
G03484228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
