Home >> Lexus >> 2004 >> ES 330 >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnostics >> Location

Power Window Control System - Diagnostics: Location

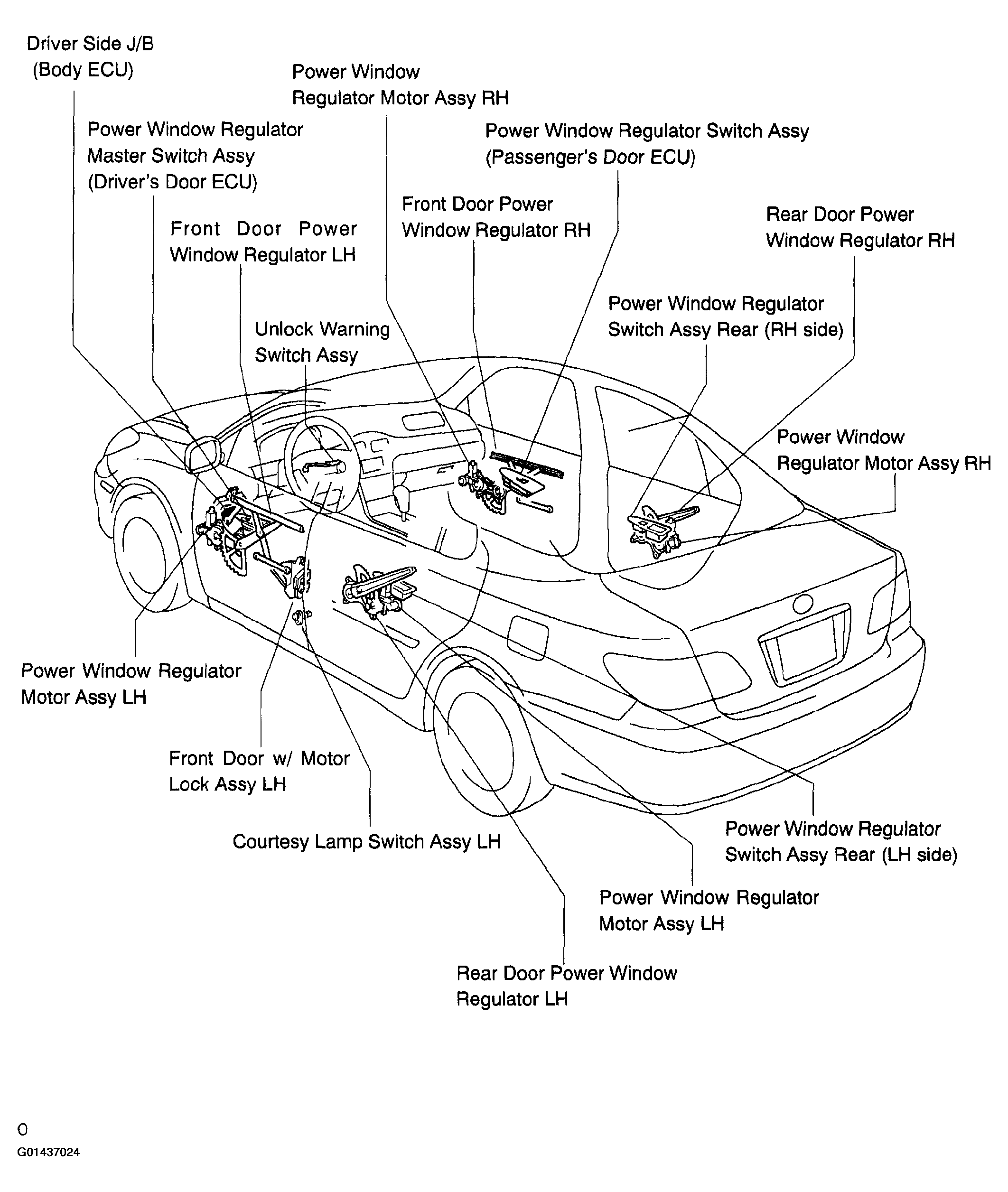

Fig 1: Locating Power Window Control System Components

G01437024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
